Introduction

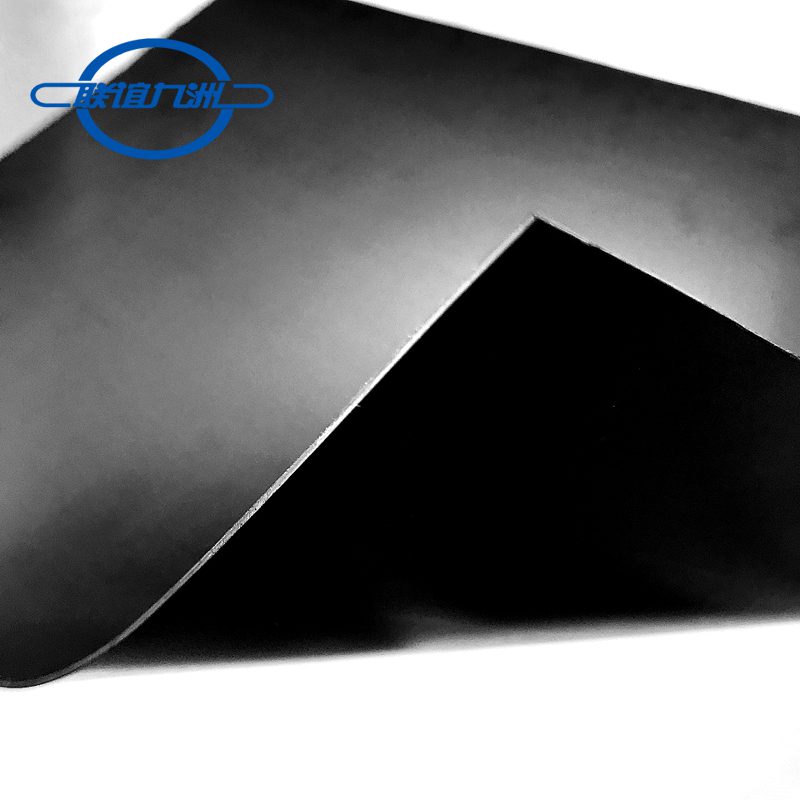

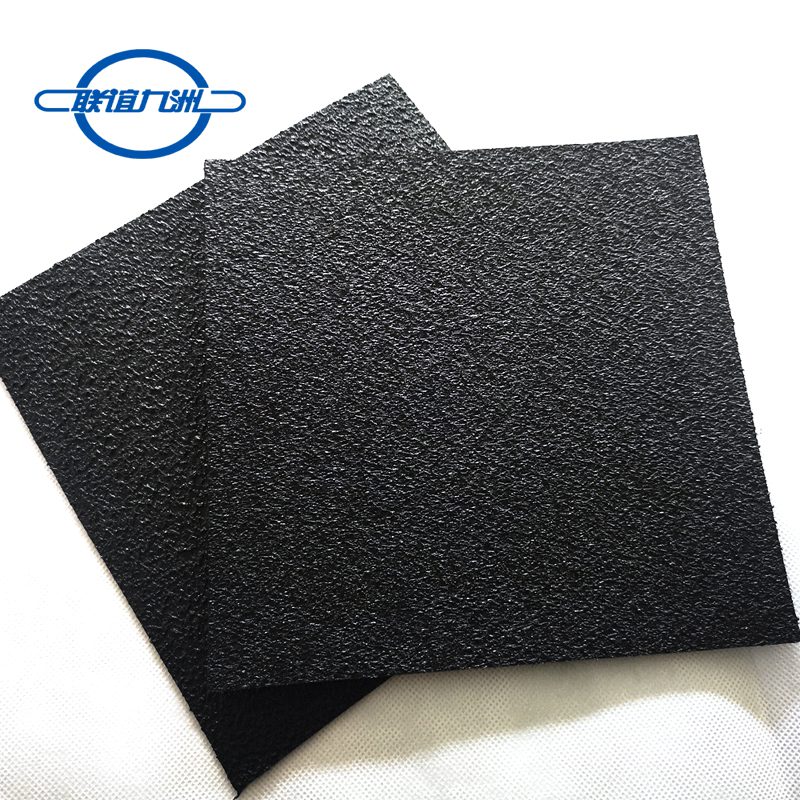

HDPE Geomembrane is flexible waterproof and impermeable membrane manufactured from high density polyethylene resin,antioxidant and carbon black mixture.Geomembrane has durable properties against chemicals,biological and mechanical impacts and ultra-violet radiations.HDPE Geomembrane is producing in two versions as smooth surface and textured surface types.

Properties Of HDPE Geomembrane

 *High tensile strength and chemical resistance

*UV resistance and temperature tolerance

*Low permeability and leak prevention

*Flexibility and seamability

*Long service life and minimal maintenance

*Recyclability and safe for the environment

*Wide range of applications and customizable solutions

Advantages Of HDPE Geomembrane

*It is durable by virtue of the special resin comprising of antioxidant and carbon black mixture

*It features high resistance and elongation values

*It is resistant against chemical impacts

*It features high UV resistance by virtue of the carbon black content

*By virtue of the special welding method,it enables performance of air pressure,abrasion and peeling tests from its joints

*The large roll size enables rapid and practical implementation opportunity for large-scale projects

*It is applicable at high oblique areas with products having rough surfaces on single side or both sides

*Materials with lower density(LLDPE,VLDPE)can also be produced for utilization options at different applications

Application Of HDPE Geomembrane

*Soild waste storage yards

*Mining waste deposit yards

*Acid pools

*Luquid product storage tank farms

*Wastewater treatment plants

*Swimming pools

*Lagoons and landscaping lakes

*Cut and cover tunnel walls

Specification Of HDPE Geomembrane :

Item		Unit	Standard	Test Frequency	LY 75	LY 10	LY 15	LY 20	LY 30
Mechanical Properties	Thickness	mm	D5199	per roll	0.75	1.00	1.50	2.00	3.00
	Density	g/cc	D1505/D792	90,000 kg	0.94
	Tensile Properties
	yield strength	kN/m	D6693 Type IV	9,000 kg	11	15	22	29	44
	break strength	kN/m			20	27	40	53	80
	yield elongation	%			12	12	12	12	12
	break elongation	%			700	700	700	700	700
	Tear Resistance	N	D 1004	20,000 kg	93	125	187	249	374
	Puncture Resistance	N	D 4833	20,000 kg	240	320	480	640	960
	Stress Crack Resistance	hr.	D 5397	per GRI GM-10	300 hr.
	Carbon Black Content	%	D 4218	9,000 kg	2.0-3.0%
Reference Propertied	Oxidative Induction Time
	(a) Standard OIT	min	D 3895	90,000 kg	100 min.
	(b) High Pressure OIT		D 5885		400 min.
	Oven Aging at 85°C retained after 90 days	%	D 5721
	(a) Standard OIT – %		D 3895	per each formulation	55%
	(b) High Pressure OIT – %		D 5885		80.0%
	UV Resistance
	High Pressure OIT – % retained after 1600 hrs	%	D 5885	per each formulation	50%
Roll Size	Roll Width	m			7	7	7	7	7
	Roll Length	m			100	100	100	100	100
	Size stability	%	2%
