Introduction

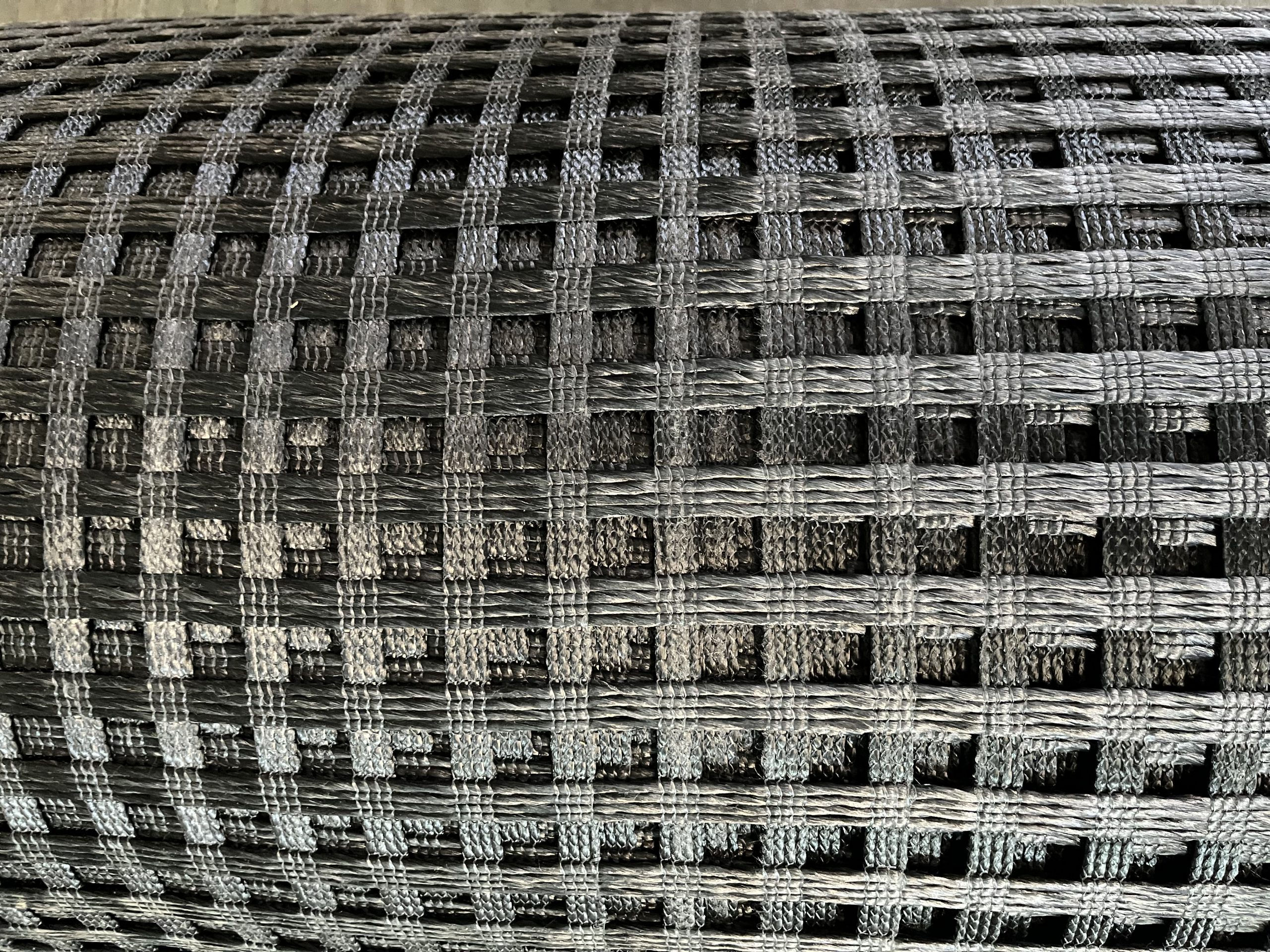

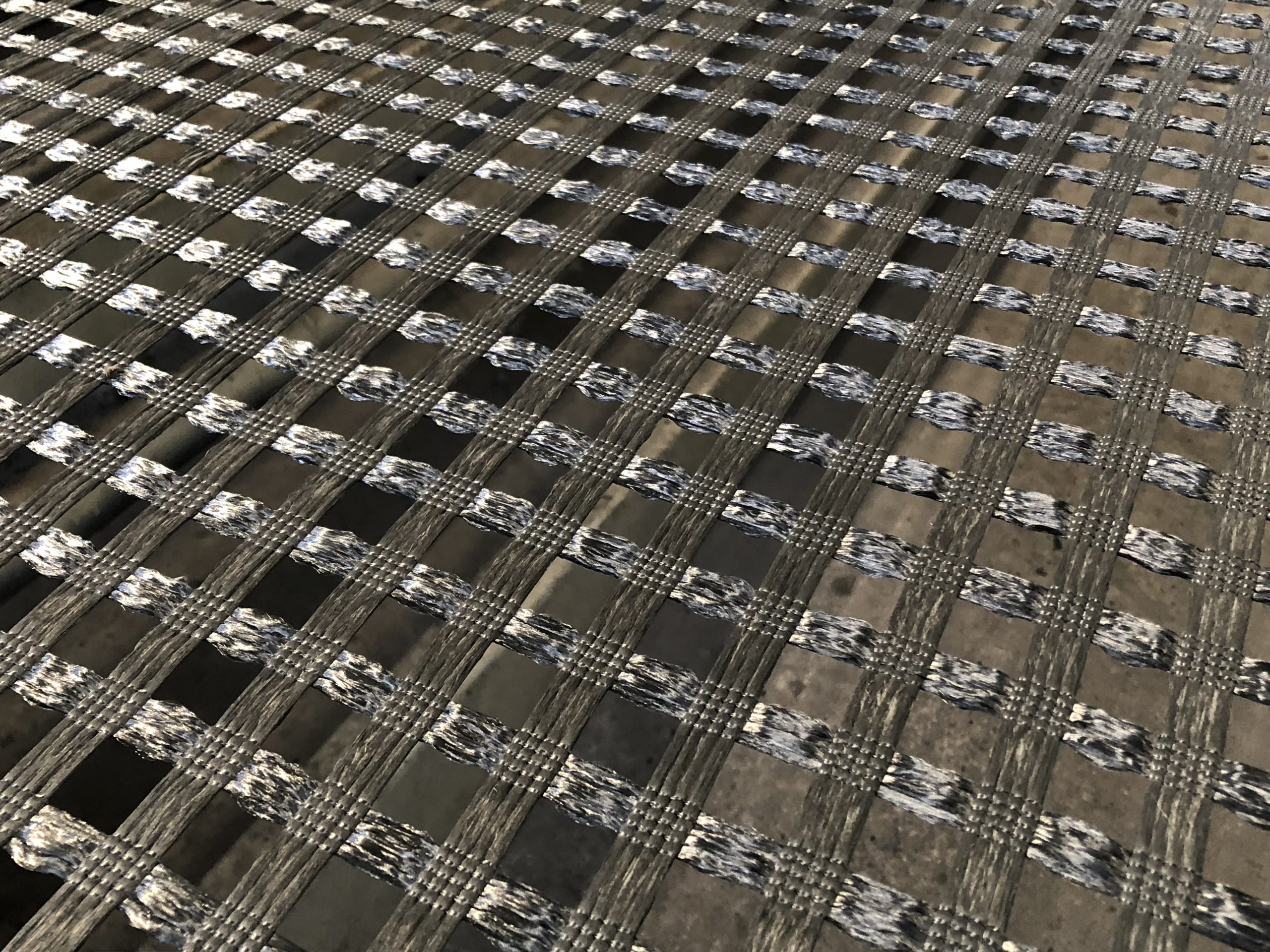

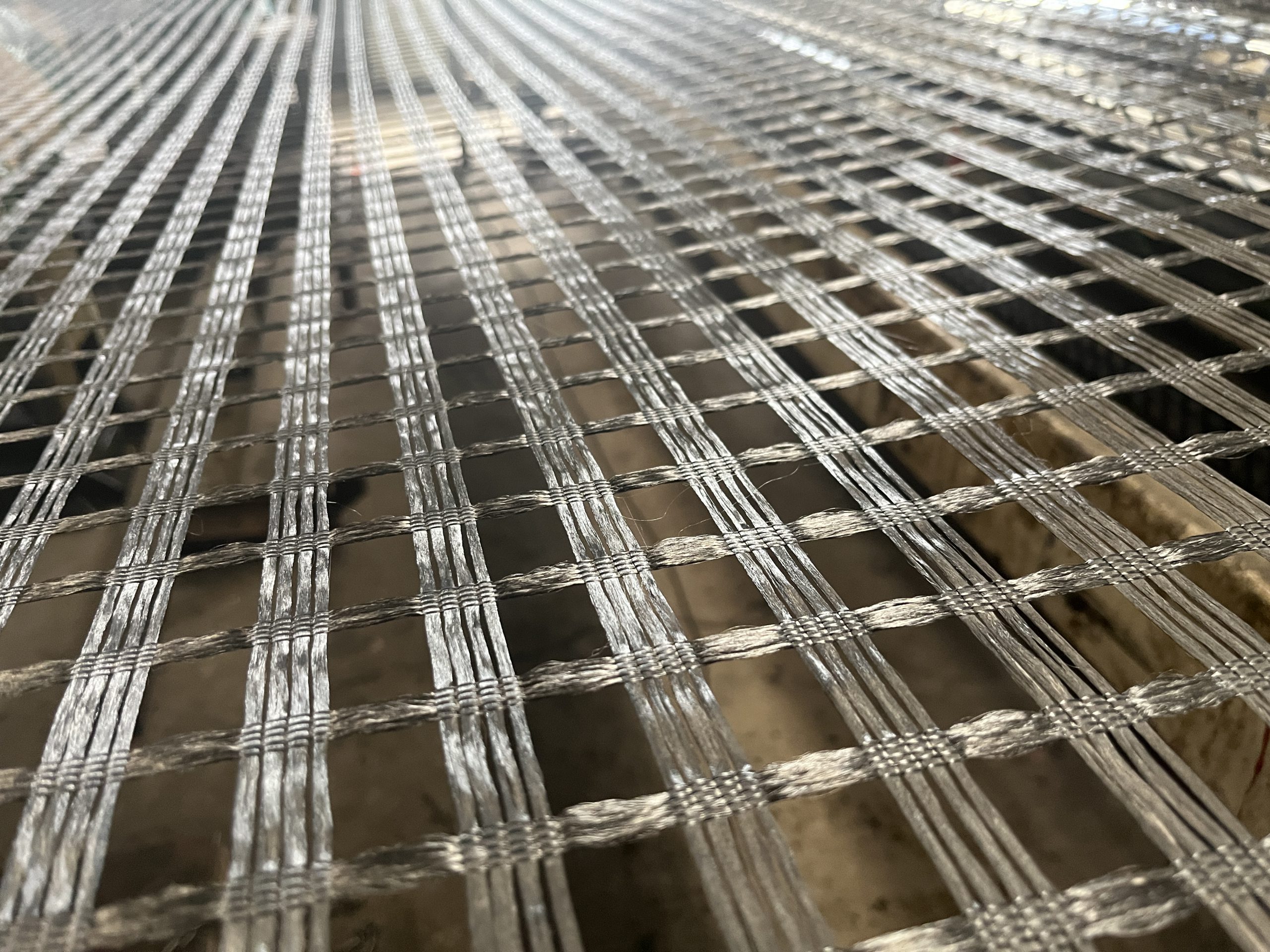

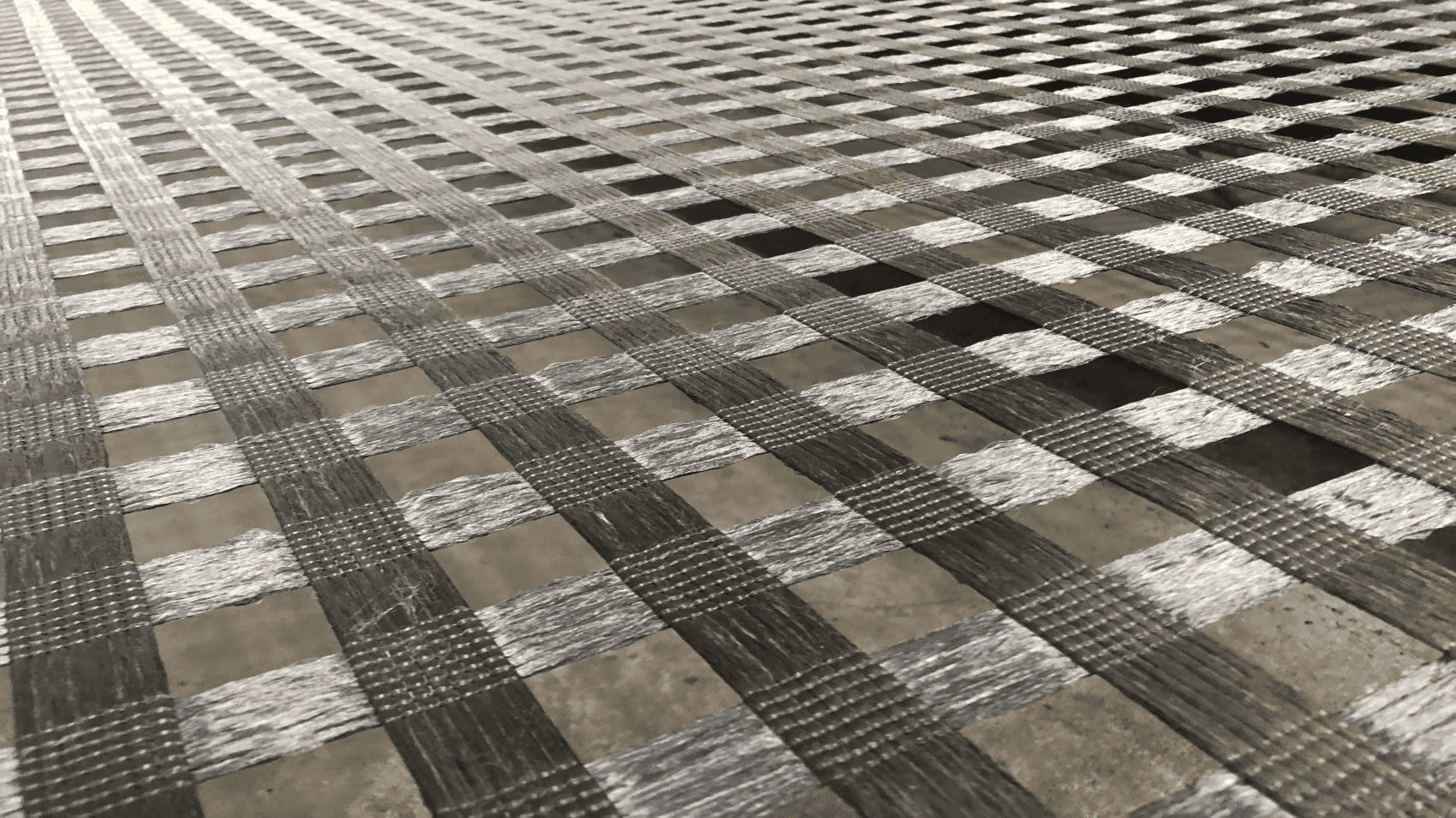

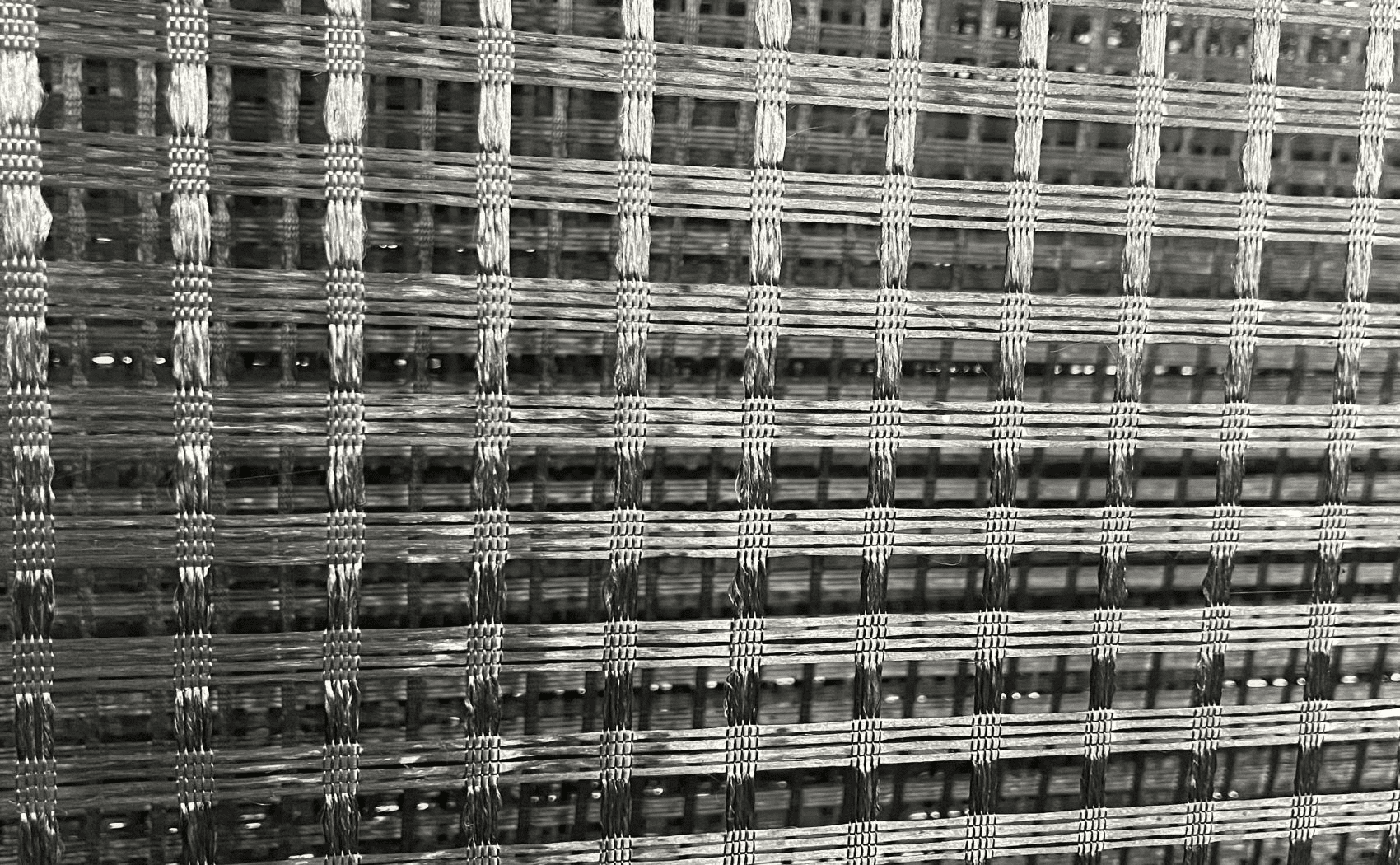

PET Geogrids are a woven biaxially oriented or uniaxially oriented geogrid,made of high tenacity polyester yarns with PVC coating.It has open meshes with square apertures produced by a weaving process,continuous polyester filaments yarns are into a mesh and then impregnated to give them a protective polymer coating.PET Geogrid tensile strength from 20/20kN/m-1000/1000kN/m(Biaxial type) and 30/20kN/m-1000/50kN/m(Uniaxial type).The high strength PET geogrid which is polymer-coated to protect against UV radiation and installation damage,provides reliable long-term reinforcement for base courses.

Advantages Of PET Geogrids

*PET geogrid are durable,resistant to seismic and dynamic loads,reliable and cost-effective

*High resistance against earthquake forces,flexible integrity and aesthetic appearance

*Increase bearing capacity in all soil conditions

*Cost savings due to lower base material requirement

*Limit creep effect

*High Tensile Strength in low elongation

*Easy and fast installation

*Optimal grid opening size

*Wide ranging applications

Application Of PET Geogrids

*Base reinforcement and subgrade improvement

PET geogrids reinforce base course in roadways,providing shear resistance and improving the road system’s elastic modulus

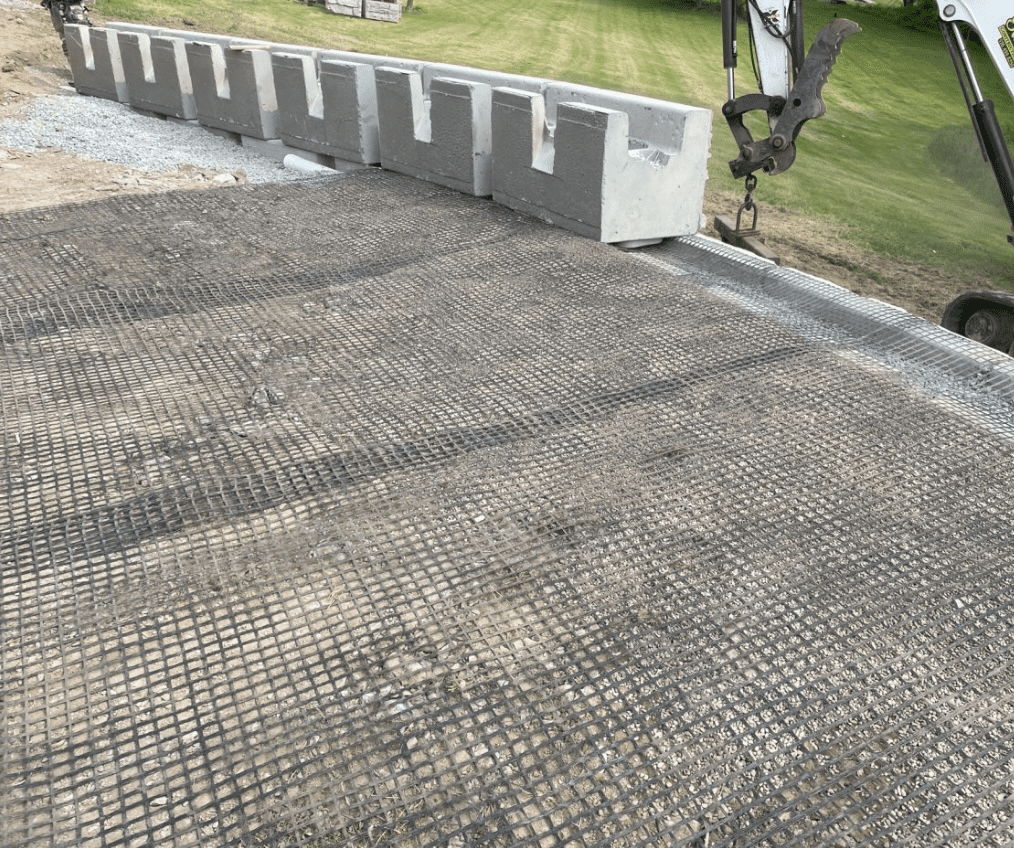

*Reinforced steep slopes and retaining walls

Bearing capacity of PET geogrids enables the construction of steeper,safer slopes and retaining walls to optimize land use and reduce land disturbance in infrastructurel

*Separation

PET geogrids prevent differing aggregate particles from migrating and mixing under loads.This enhances the long-term performance and integrity of a construction

Specification Of PET Geogrids :

(PET Biaxial Geogrids)

Property		Test Method		PET 30/30	PET  50/50	PET 60/60	PET 80/80	PET 100/100	PET 150/`150	PET 200/200
Ultimate tensile strength( ≥kN/m)	MD	EN ISO 10139		30	50	60	80	100	150	200
	CD			30	50	60	80	100	150	200
Approximate Mesh Size(mm)		Direct measure		12.7×12.7  25.4×25.4  40×40  50×50
After Treatment				PVC Soakage
Elongation at maximum load (%)	MD	EN ISO 10139		10
	CD			10
Temperature Resistant(℃)				-100~280
Coating Content (%)				≤30
Resistance to Installation Damage %SC/%SW/%GP				95/93/90
Design Life(years)				120
PET Yarn Properties
Carboxyl End Group(CEG)	mol/kg		GRI GG7	<30
Molecular Weight	Mn		GRI GG8	>25000



(PET Uniaxial Geogrids)

Property		Test Method		PET 60/30	PET  80/30	PET 100/30	PET 150/30	PET 200/30	PET 300/`30	PET 500/50
Ultimate tensile strength( ≥kN/m)	MD	EN ISO 10139		60	80	60	150	200	300	200
	CD			30	30	30	30	30	30	50
Approximate Mesh Size(mm)		Direct measure		12.7×12.7  25.4×25.4  40×40  50×50
After Treatment				PVC Soakage
Elongation at maximum load (%)	MD	EN ISO 10139		12
	CD			12
Temperature Resistant(℃)				-100~280
Coating Content (%)				≤30
Resistance to Installation Damage %SC/%SW/%GP				95/93/90
Design Life(years)				150
PET Yarn Properties
Carboxyl End Group(CEG)	mol/kg		GRI GG7	<30
Molecular Weight	Mn		GRI GG8	>25000
