Introduction

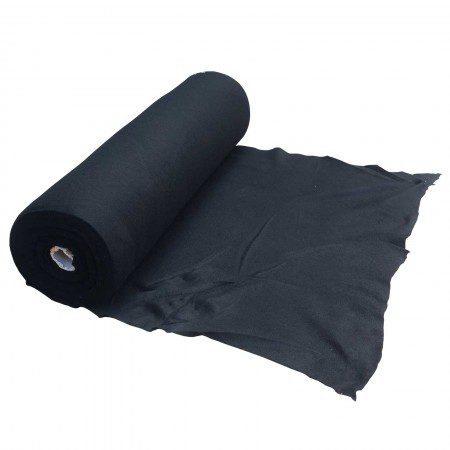

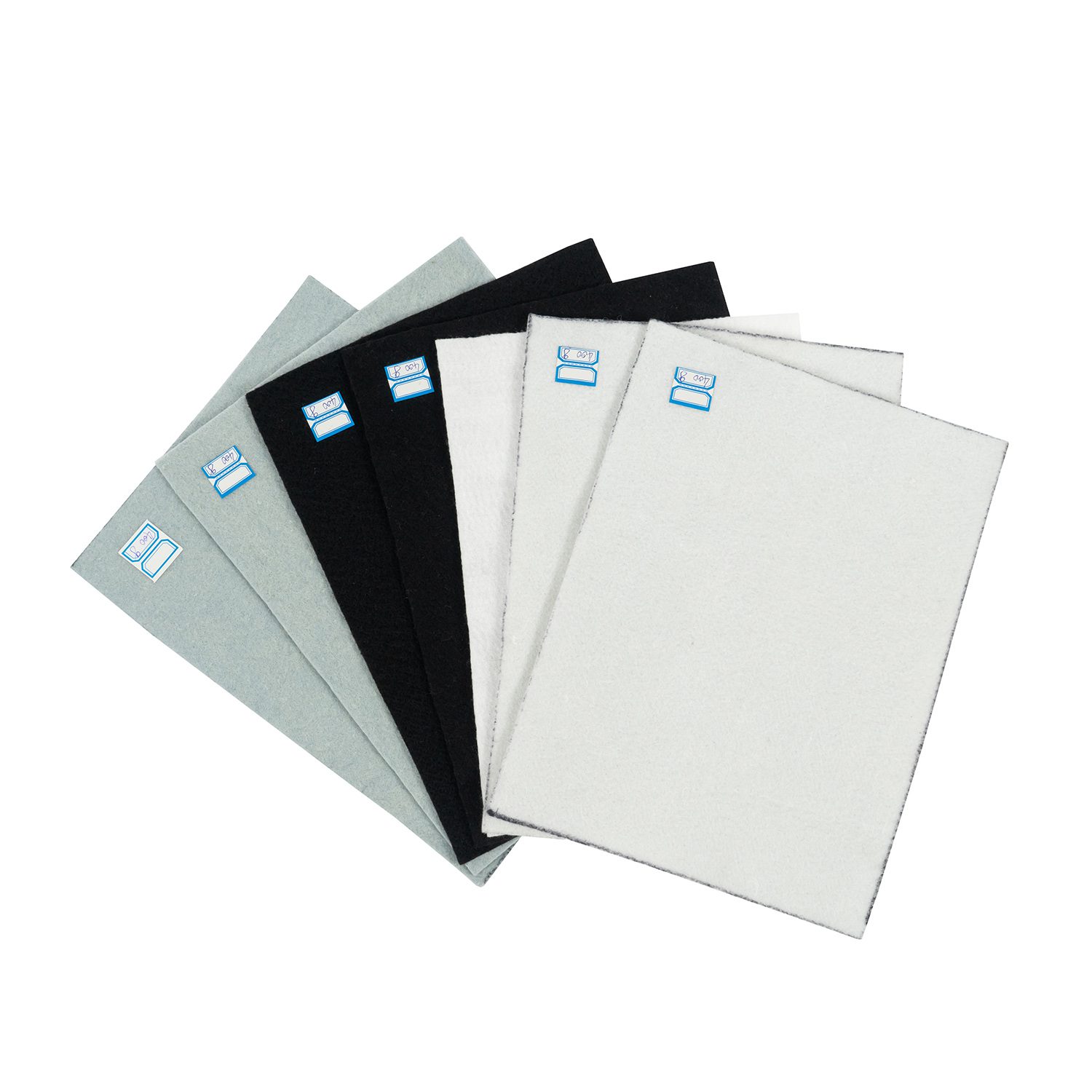

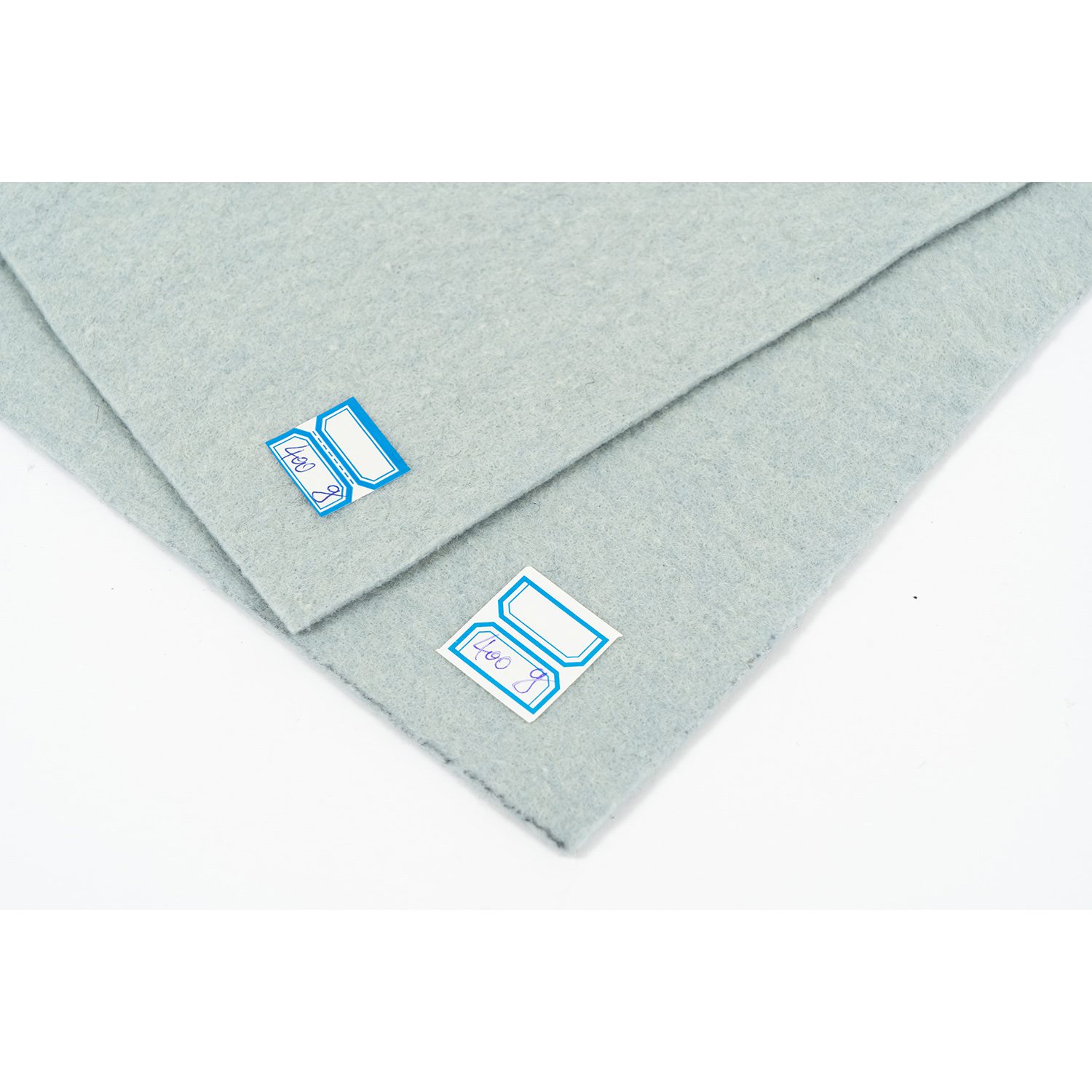

PET Non Woven Geotextile is a made of high tenacity polyester fiber,needle-punched to form a dimensionally stable fiber network.It’s a type of fabric used in civil engineering and construction projects for soil stabilization, erosion control, and drainage etc.It’s available with width 1-6m and generally length 50-100m.

Advantages Of PET Non Woven Geotextile

 *Separation

Non woven geotextile as a separation layer.Separation function prevents mixing of the sub soil and aggregate.This in turn allow the non woven geotextile to uphold and enhance the integrity and functionality of the said soil.

*Filtration

Filtration function of non woven geotextile material allow continuous liquid flow through the geotextile layer while it prevents migration of fine soil particles across the layer.

*Reinforcement

Reinforcement is the function of the geotextile when incorporated in the soil structure imparts structural stability.

*Transmissivity

This function is also known as drainage function.This function facilitates planer flow of liquid or water along the geotextile material.

*Moisture Barrier

Non woven geotextile as a moisture barrier when impregnated with asphalt or other compounds. Especially in road constructions it is useful function for repairing cracked pavements.

*Stress Absorption

It’s also known as protection function.Geotextile products imparts this function in the pavement overlay.

 Application Of PET Non Woven Geotextile

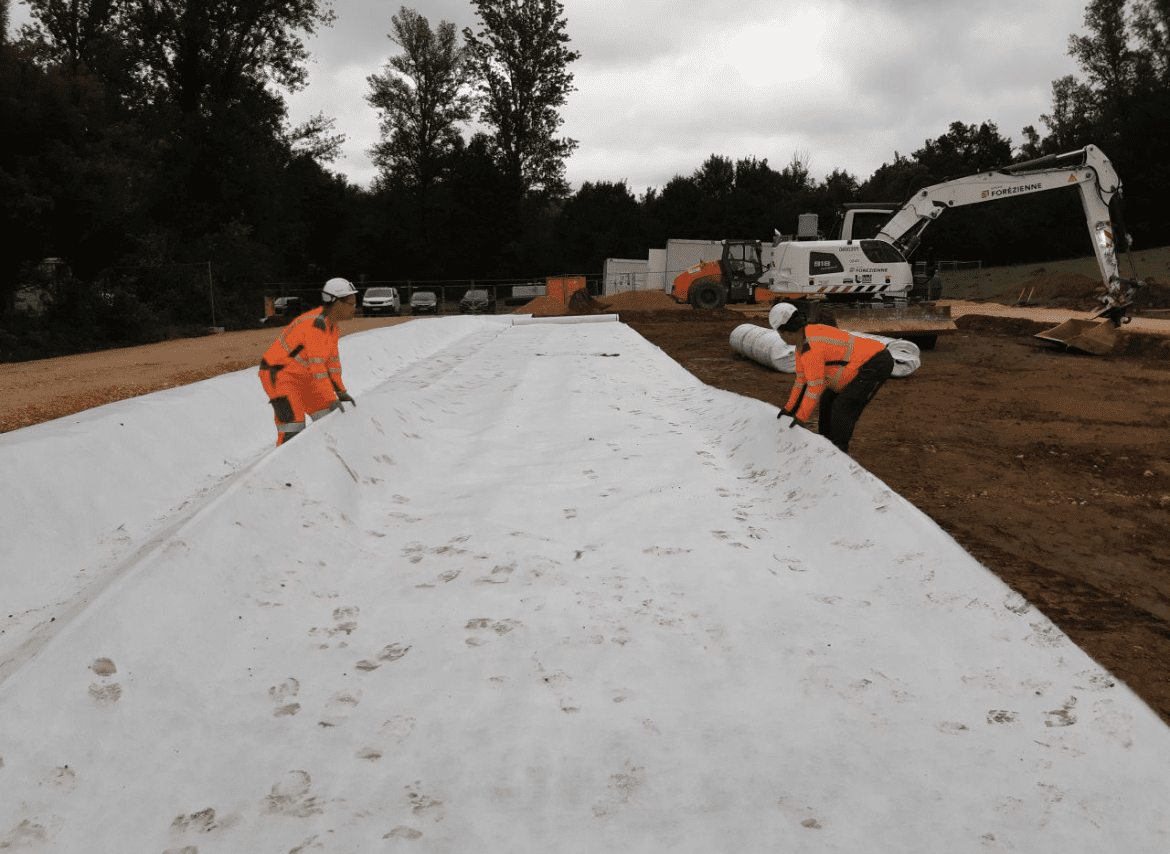

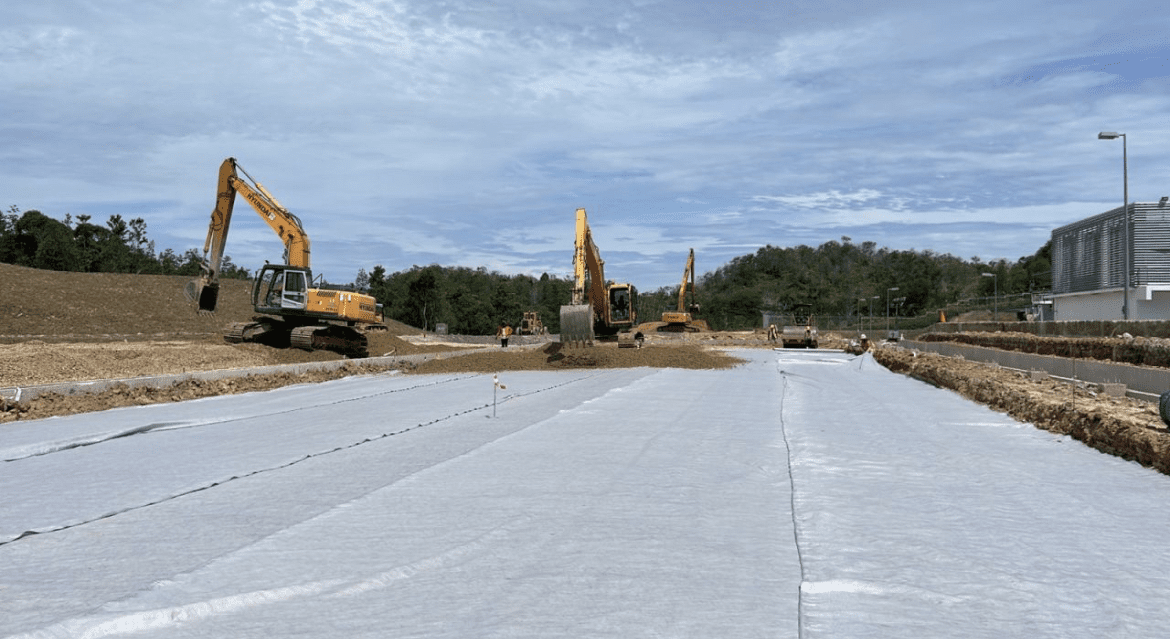

*Road construction and repairs

*Paved runways

*Rail track stabilization

*Pavement overlays

*Landscaping and sports fields

*Drainage systems

*Pipe lining and foundation

*Canal,pond and reservoir lining

*Roofing systems

*Erosion control

*Coastal Protection

*Landfill system

Specification Of PET Non Woven Geotextile :

Index Properties	Test Method	Unit	PET Non Woven Geotextile
Weight	ASTM D5261	g/m2	100	125	150	200	250	300	350	400	450	500	550	600
Ultimate Tensile Strength	ASTM D4595	≥kN/m	2.5	3.5	4.5	6.5	8.0	9.5	11.0	12.5	14.0	16.0	17.5	19.0
Tensile Elongation	ASTM D4595	%	50-80
Grab Tensile Strength	ASTM D4632	≥N	225	280	361	641	720	792	911	1036	1182	1346	1480	1584
Grab Elongation	ASTM D4632	%	50-80
Trapezoid Tear Strength	ASTM D4533	≥N	80	100	120	160	200	240	280	330	380	420	440	460
CBR Puncture Strength	ASTM D6241	≥kN	0.3	0.4	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	2.9	3.2
Puncture Resistance	ASTM D4833	≥N	82	99	133	225	284	346	440	530	596	603	663	760
Drop Cone Resistance (hole-φ)	BS EN 918	mm	45	40	37	34	31	26	23	19	18	16	15	15
Hydraulic Properties
Apparent Opening Size O90	ASTM D4751	≤mm	0.13	0.12	0.12	0.12	0.12	0.11	0.10	0.09	0.08	0.08	0.08	0.08
Permeability	ASTM D4491	cm/s	0.41	0.41	0.41	0.41	0.40	0.40	0.39	0.39	0.39	0.39	0.39	0.39
Physical Identification Properties
Thickness	ASTM D5199	mm	1.0	1.3	1.7	2.1	2.4	2.5	2.8	3.0	3.2	3.5	3.6	3.8
Roll Width	–	m	1-6
Roll Length	–	m	50/100
