Introduction

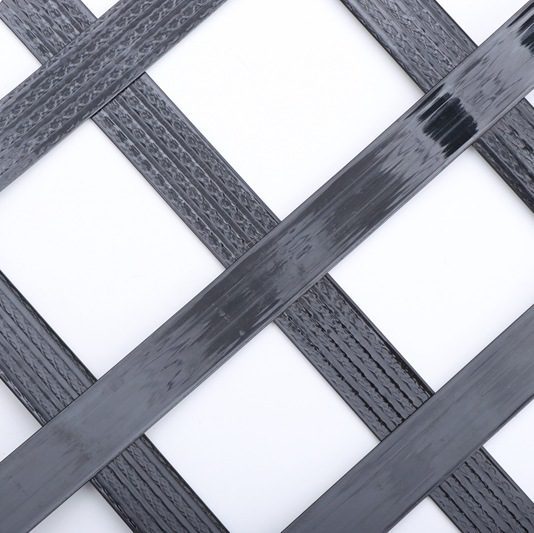

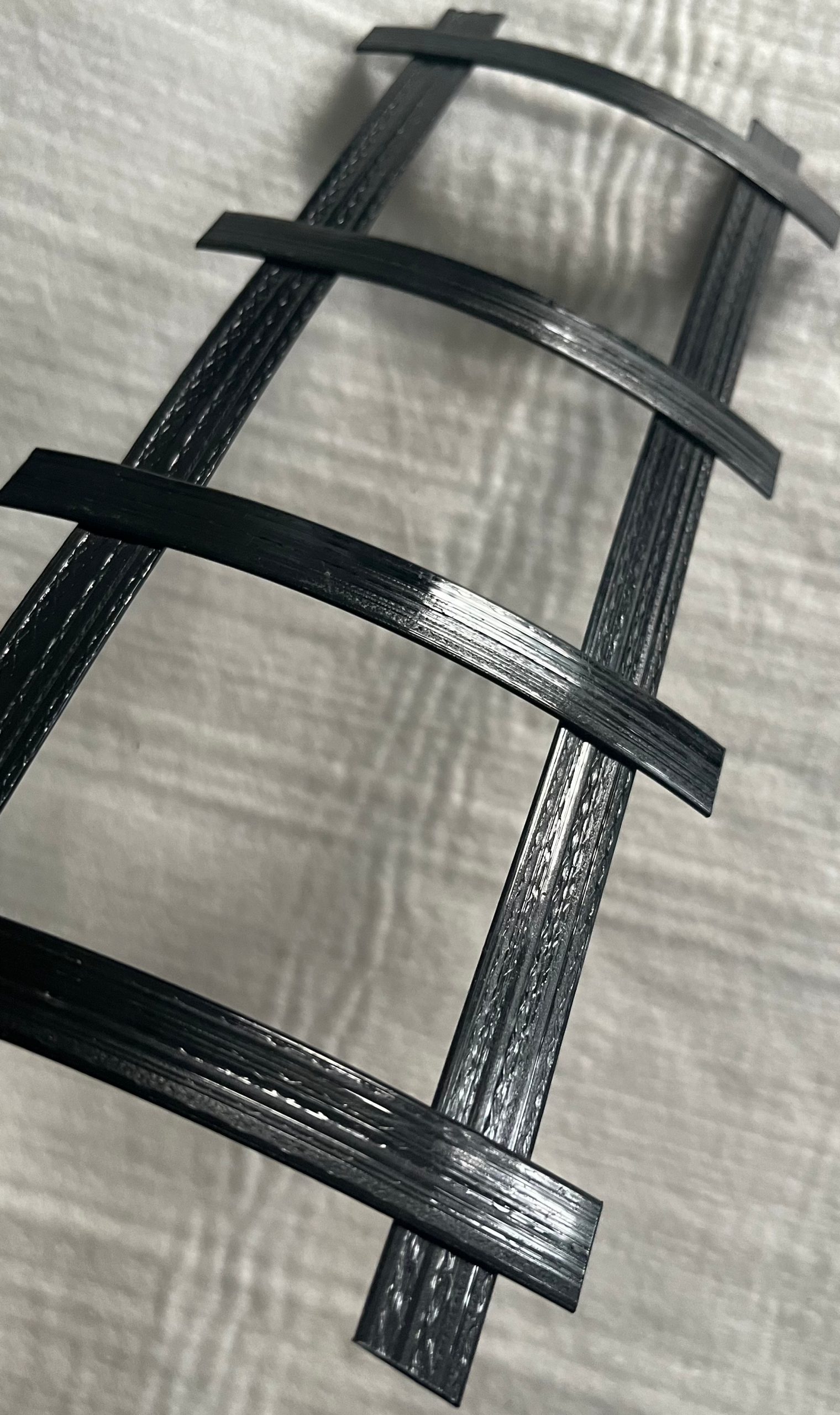

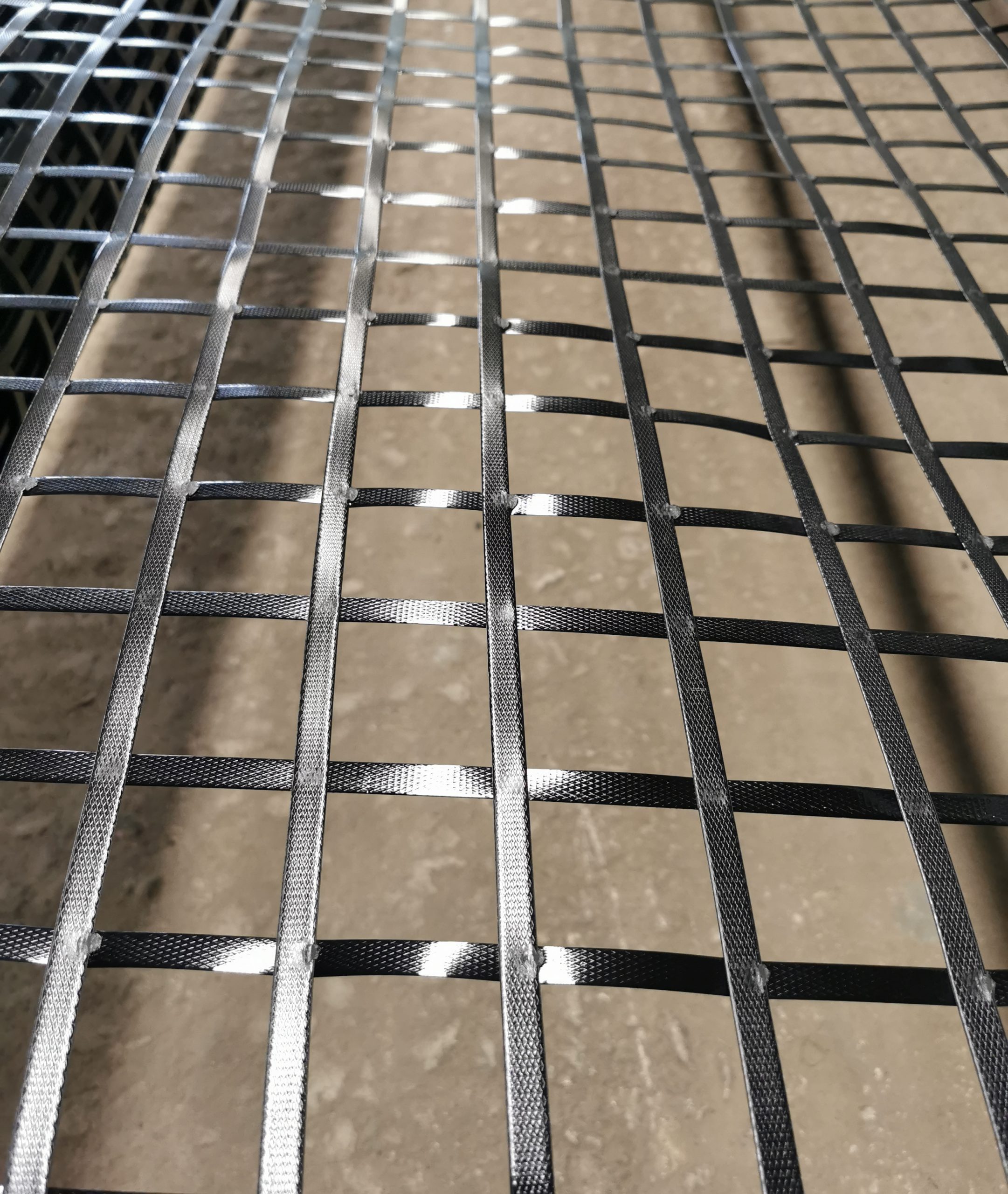

PET Welded Geogrid is made from high strength PET strips,put PET strips in a grid pattern, with precise spacing between the longitudinal (warp) and transverse (weft) strips.The intersections of the strips are welded together using thermal or ultrasonic welding techniques. This ensures strong bonds at the junctions, providing structural integrity to the geogrid,it has high stiffness and low creep tendency with extreme robustness.

Advantages Of PET Welded Geogrid

*High tensile strength and low strain

*Corrosion resistance, long service life

*Easy to use and low cost

*Increase in load distribution. (Bearing Capacity Increase)

*Controls differential settlement.

*Efficiently improve the bearing capacity of soft road base,control the soil’s lateral movement.

 Application Of PET Welded Geogrid

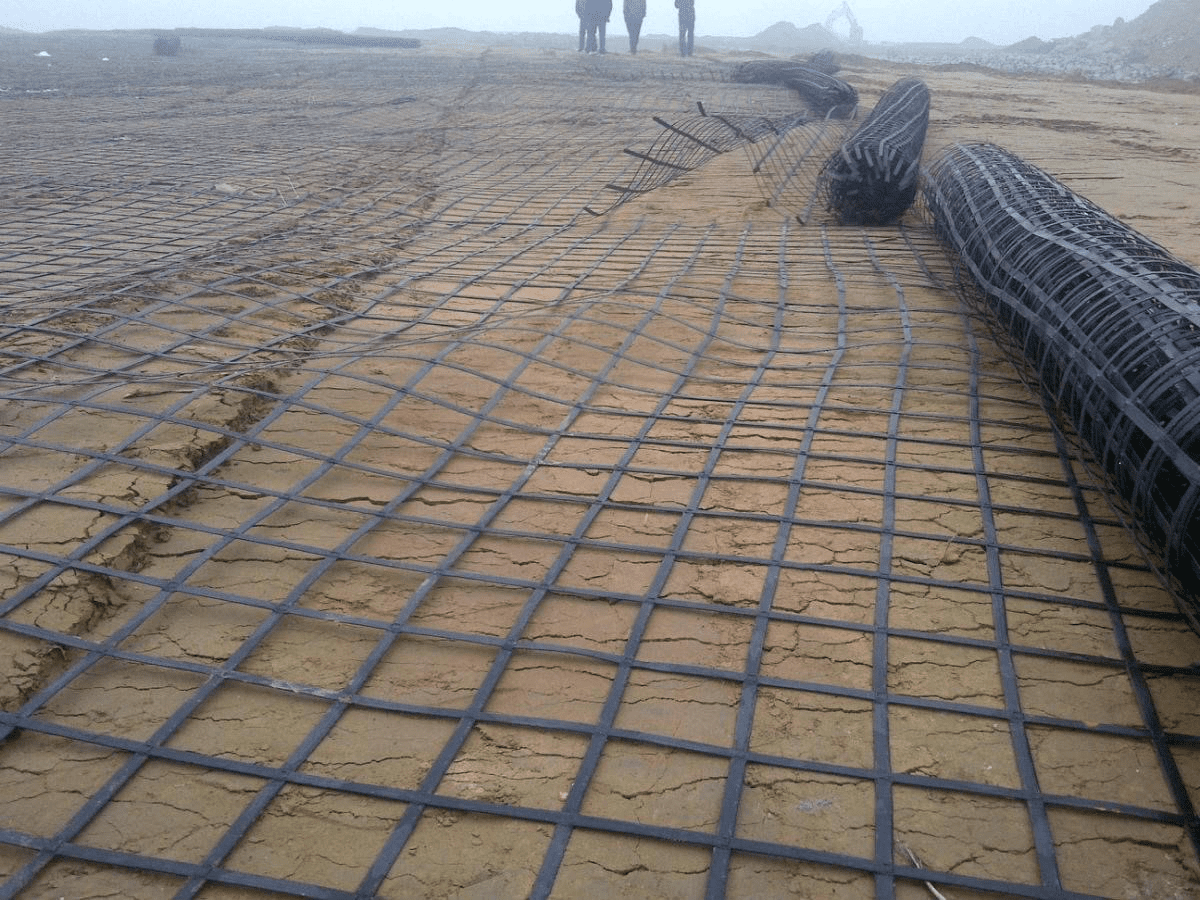

*Base stabilization and reinforcement

*Wall and slope reinforcement

*Embankment on soft soil reinforcement

*Bridging of sinkholes and mining voids

*Highways,railways,abutments,docks,slag disposal areas etc

Specification Of PET Welded Geogrid :

Items	TGSG4040	TGSG5050	TGSG6060	TGSG8080	TGSG100100	TGSG120120
Ultimate tensile strength (MD/CMD)(kN/m)≥	40	50	60	80	100	120
Elongation at break (%)≤	8	8	8	8	8	8
Tensile strength at 2% Elongation	14kN/m	17.5kN/m	21kN/m	28kN/m	35kN/m	42kN/m
Tensile strength at 5% Elongation	28kN/m	35kN/m	42kN/m	56kN/m	70kN/m	84kN/m
Tear force of welding point (N)	30/100	30/100	30/100	30/100	30/100	30/100
Roll size	5.9m*50m	5.9m*50m	5.9m*50m	5.9m*50m	5.9m*50m	5.9m*50m
