Introduction

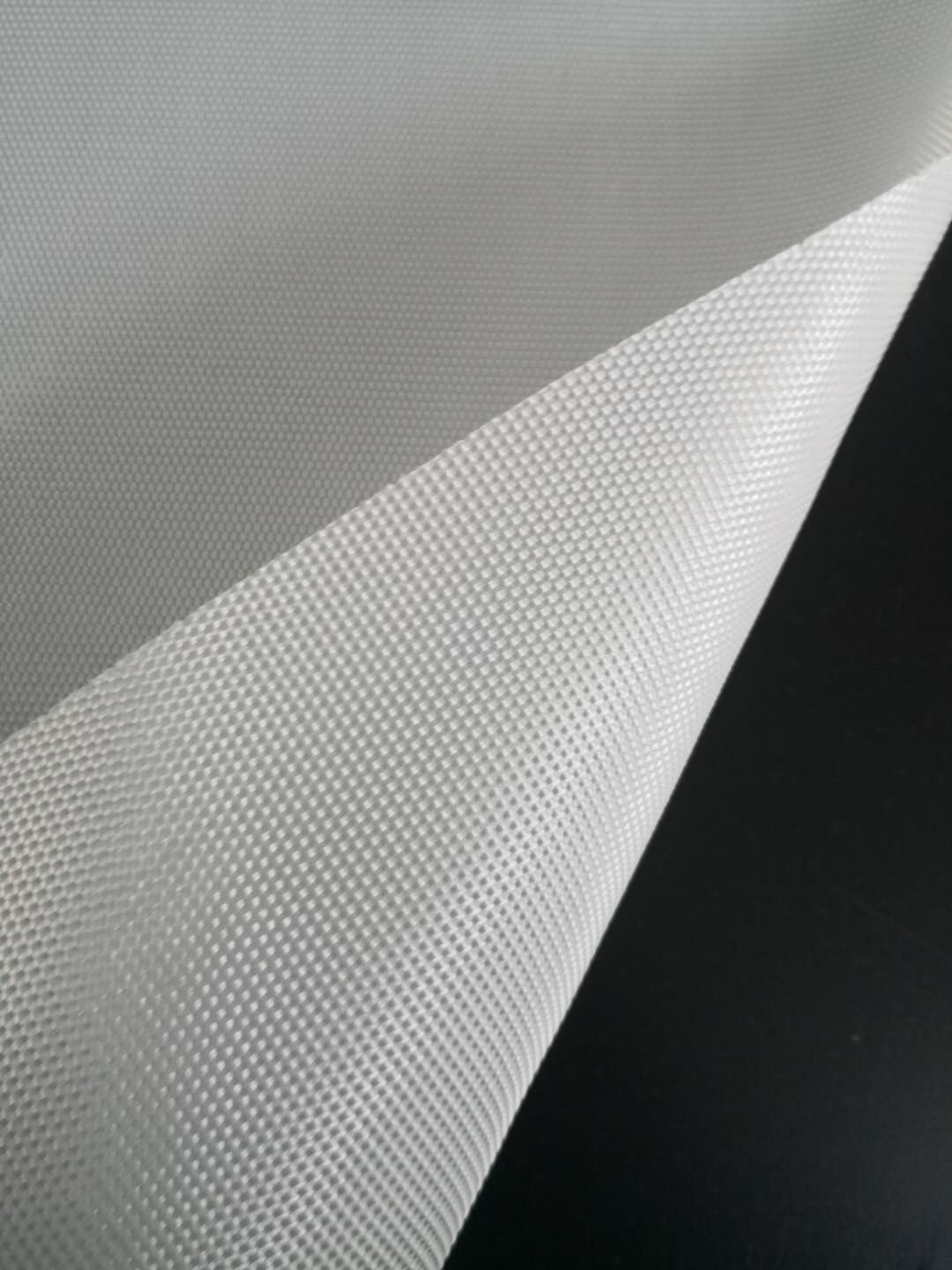

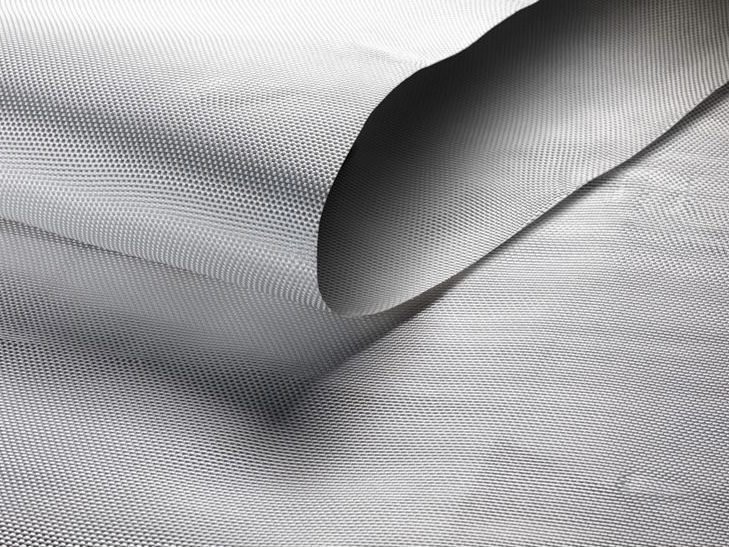

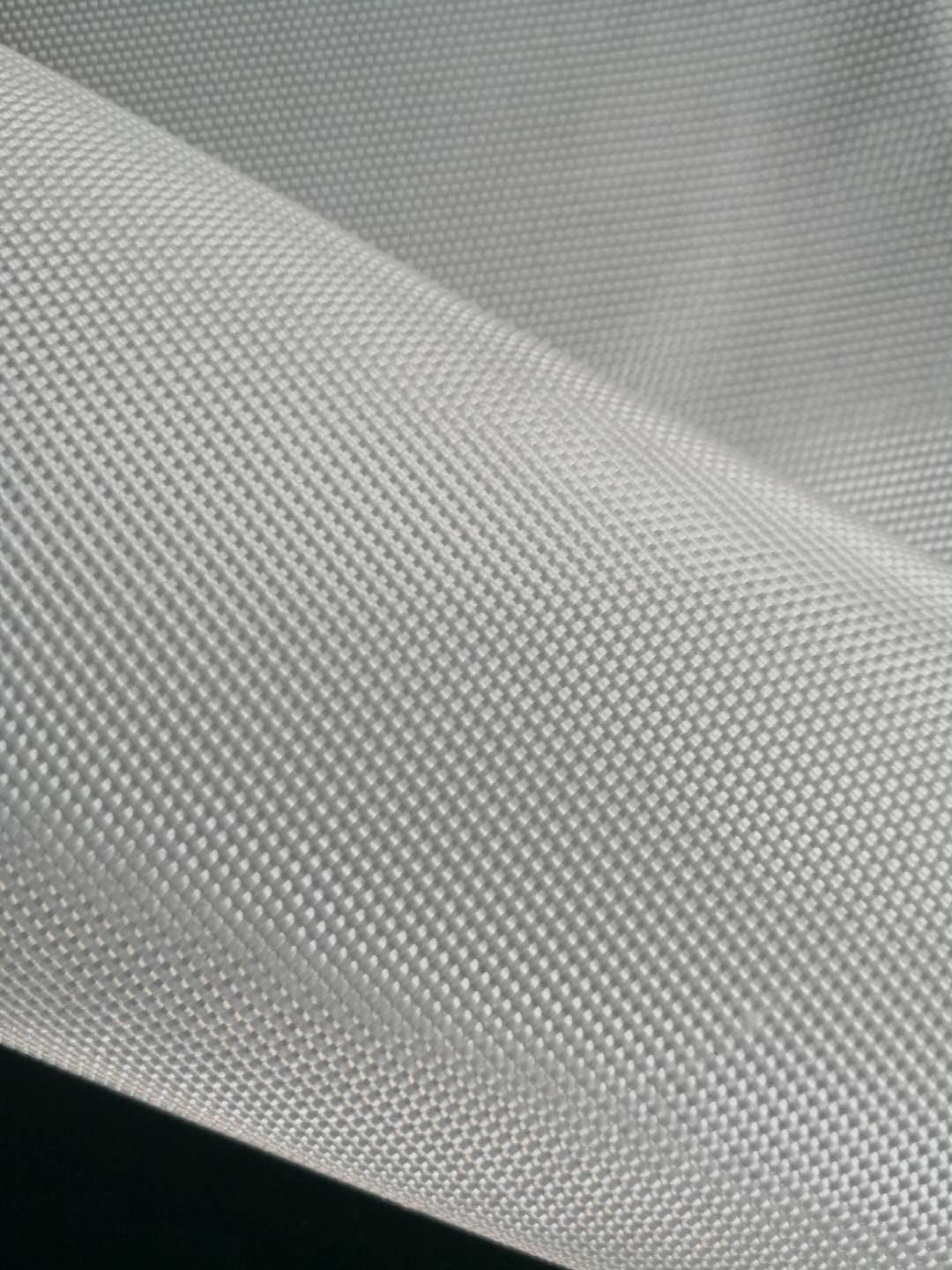

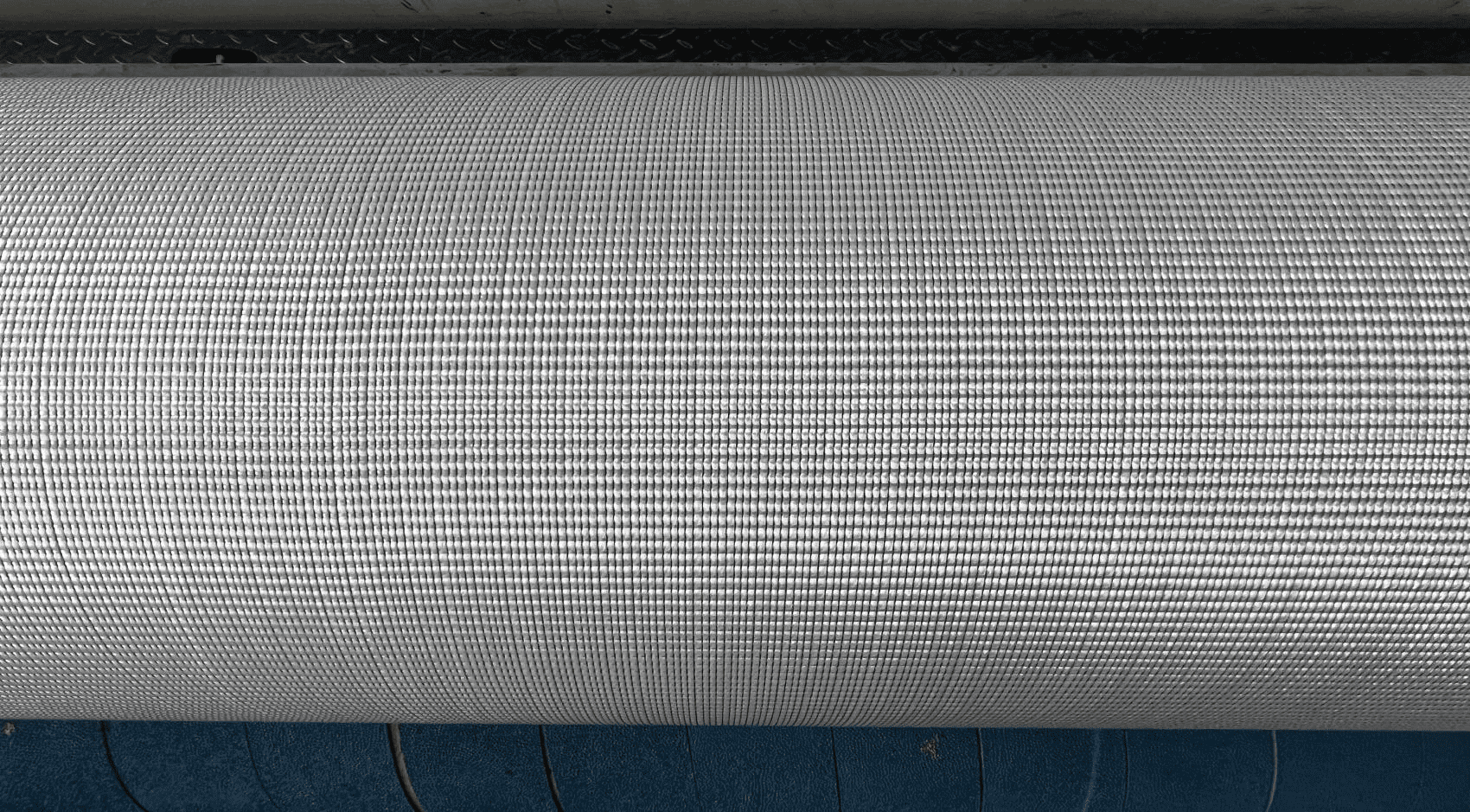

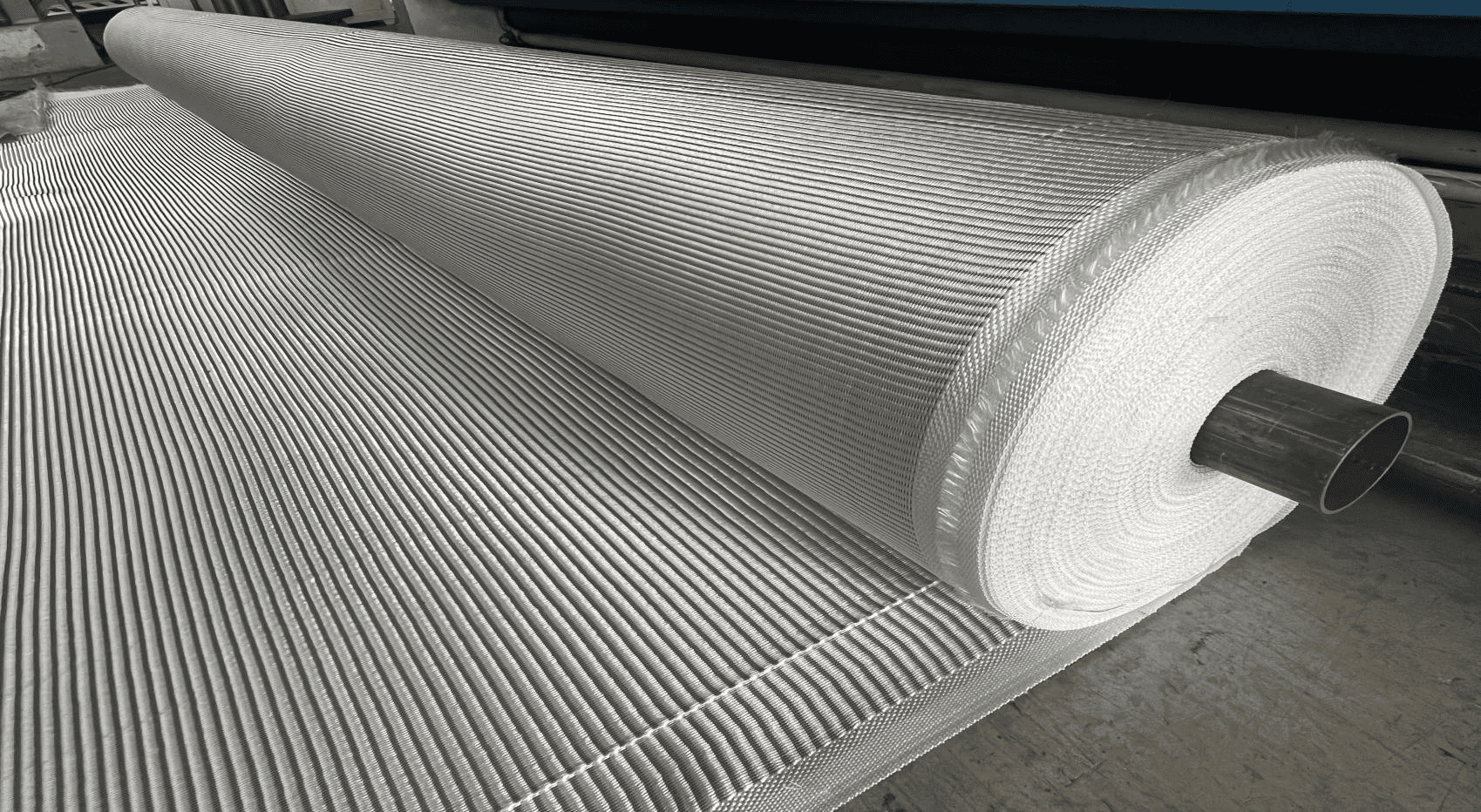

PET Woven Geotextiles are a woven( and in certain designs warp-knitted) geotextile made of high modulus polyester yarns.This high strength material can provide tensile strength up to 1600kN/m at a very low elongation and in maximum panel width of 5.2m.

PET Woven Geotexile strengthens low-bearing capacity soils,enables water to pass through and near perpendicular to the geotextile and prevents differing soil and aggregate particles from migrating and mixing under loads.

Properties Of PET Woven Geotextile

*Reinforcement

Woven geotextiles,with their high tensile strength and low elongation(high modulus)act as a reinforcement layer when the subsoil has poor mechanical properties and thus improves its load-bearing capacity.Placed under roads or railways embankments,it improves the global stability,if correctly designed.It solves load-bearing problems when roads,parking and service areas are built over soft soils.

*Separation

Woven geotextiles separates two layers of soil with different granulometry.For roads and service areas construction,if placed between the subsoil and the backfill aggregates,it prevents the gravels or crushed stones migration in the soft underlying soil.

*Filtration

Woven geotextiles act as traditional filters by allowing water to flow freely through them while preventing fine soil particles from migrating towards layers containing larger particle sizes.

Woven geotextiles are used in drainage trenches and as filters in the hydraulic works(under the rip-tap)protecting river and seashores.

Advantages Of PET Woven Geotextile

*Reduction in the transmission of shear stress to the soil

*Increase in the load-bearing capacity of the soil

*High tensile strength and excellent filtering properties

*Good UV stability

*Good chemical resistance

*Technical design service available

*Cost savings through project-specific product selection

Application Of PET Woven Geotextile

*It acts like a reinforcing element,increasing the soil’s bearing capacity

*It acts like a separating layer between soils with different particle sizes

*It acts like filter,allowing water to flow through the ground without interfering with the soils properties

*Retaining walls

*Slopes of higher steepness

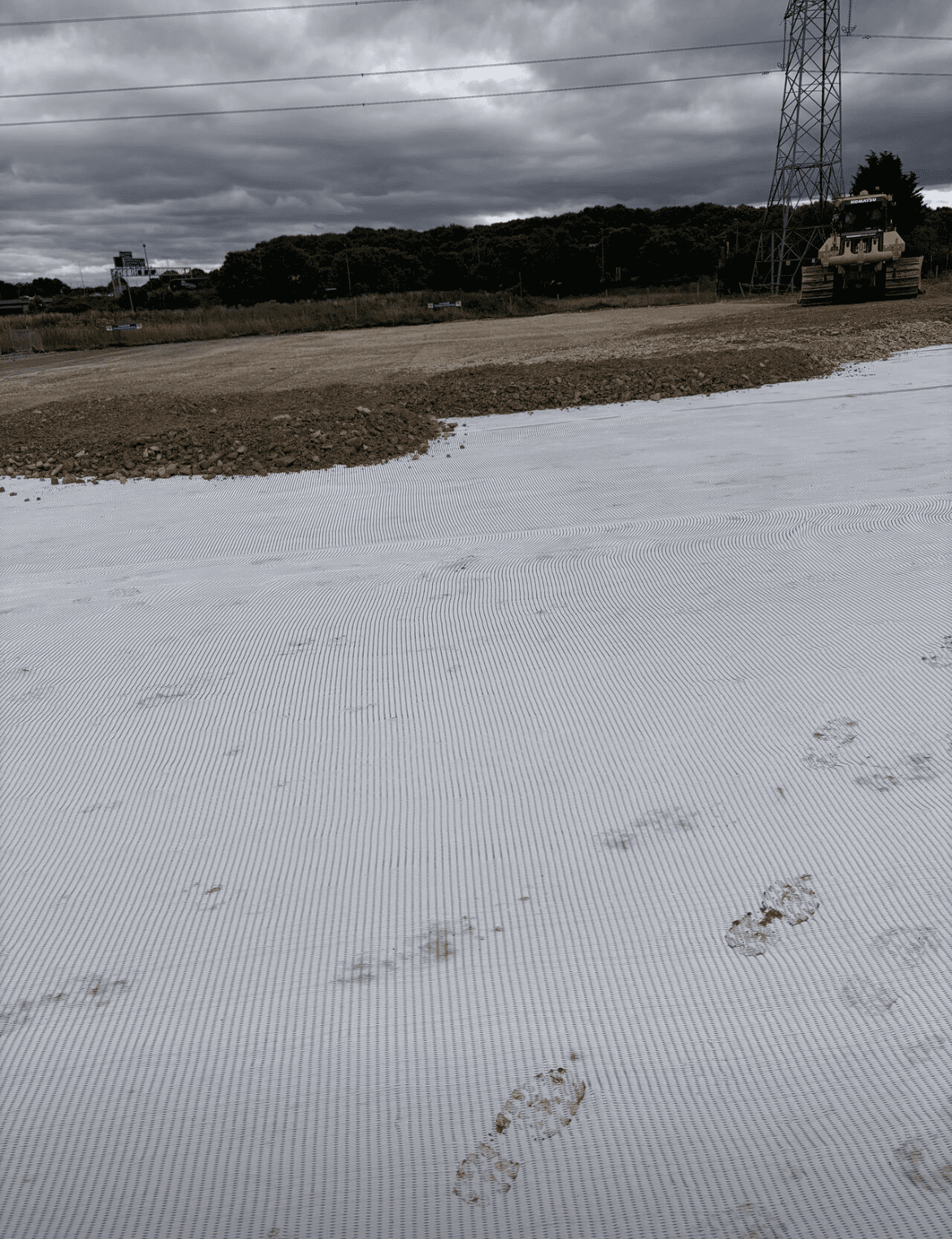

*Roads,railway foundations

*Drainage projects



Specification Of PET Woven Geotextile :

PROPERTIES	Test Method	Unit	100/50	150/50	200/50	300/50	400/50	500/50	600/50	800/50	1000/50
Ultimate Tensile Strength(MD)	ASTM D4595	≥kN/m	100	150	200	300	400	500	600	800	1000
Ultimate Tensile Strength(CD)	ASTM D4595	≥kN/m	50	50	50	50	50	50	50	50	50
Elongation(MD)	ASTM D4595	%	10
Strength@5% Strain(MD)	ASTM D4595	≥kN/m	50	75	100	150	200	250	300	400	500
Creep Reduced Strength(MD)	ASTM D5262	≥kN/m	63	90	120	180	240	300	360	480	600
Long Term Design Strength	ASTM D6241	≥kN	50	72	95	148	198	248	298	398	498
Apparent Open Size	ASTM D4751	mm	0.075	0.075	0.075	0.25	0.25	0.25	0.20	0.20	0.20
Permittivity	ASTM D4491	Sec-1	0.03	0.03	0.03	0.15	0.15	0.15	0.18	0.18	0.18

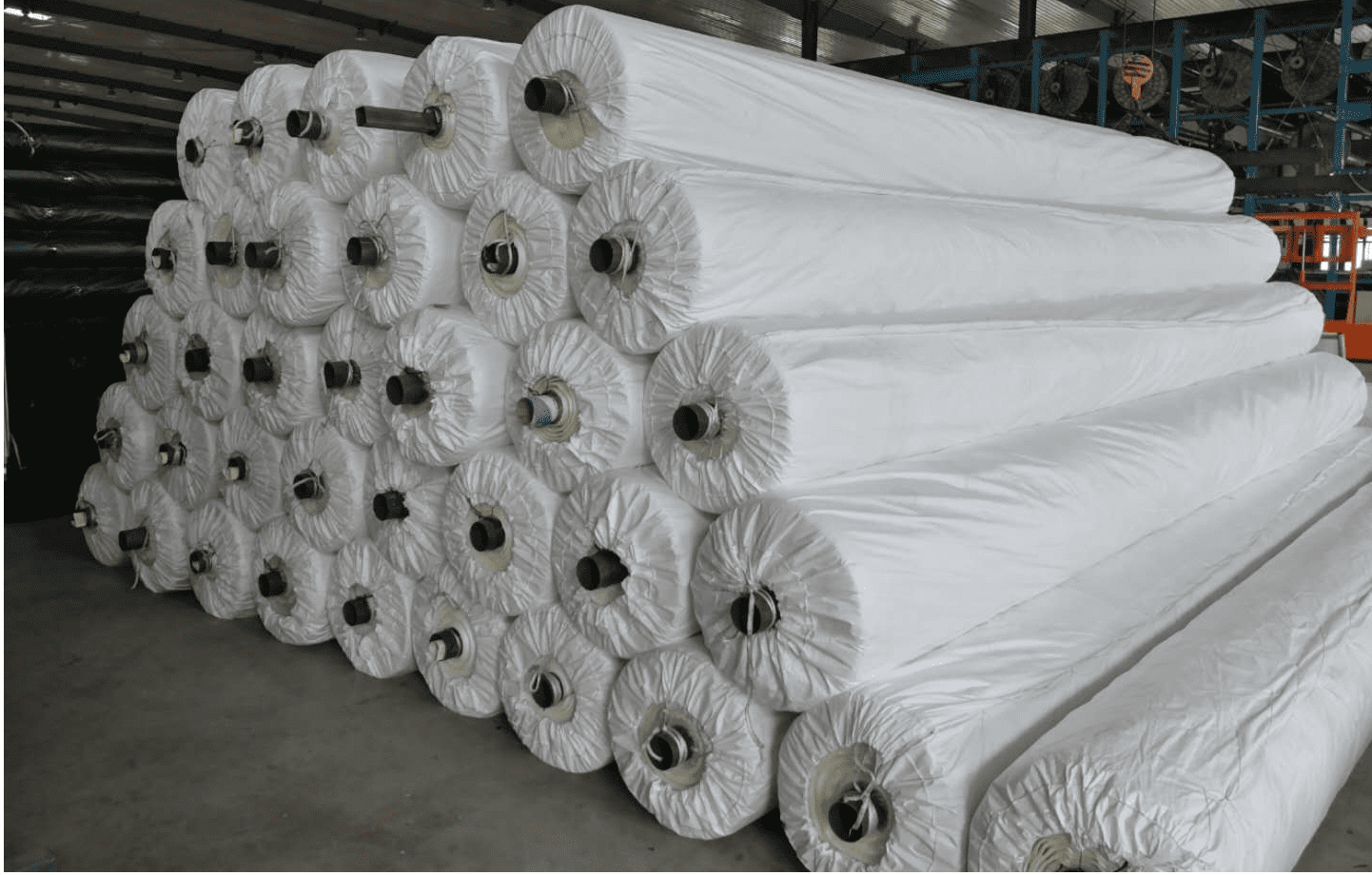

Roll Width	–	m	5.2
Roll Length	–	m	50/100
