Introduction

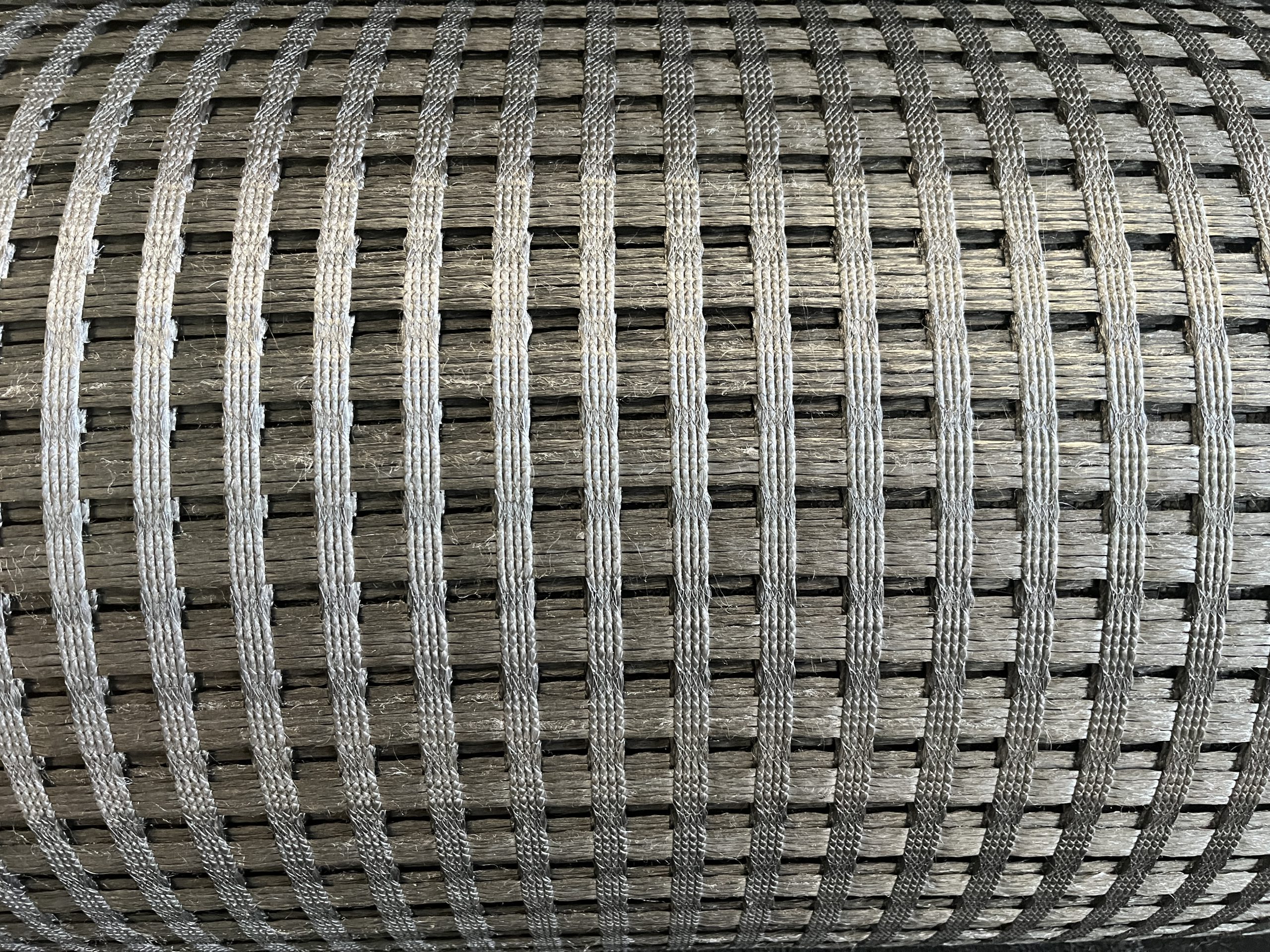

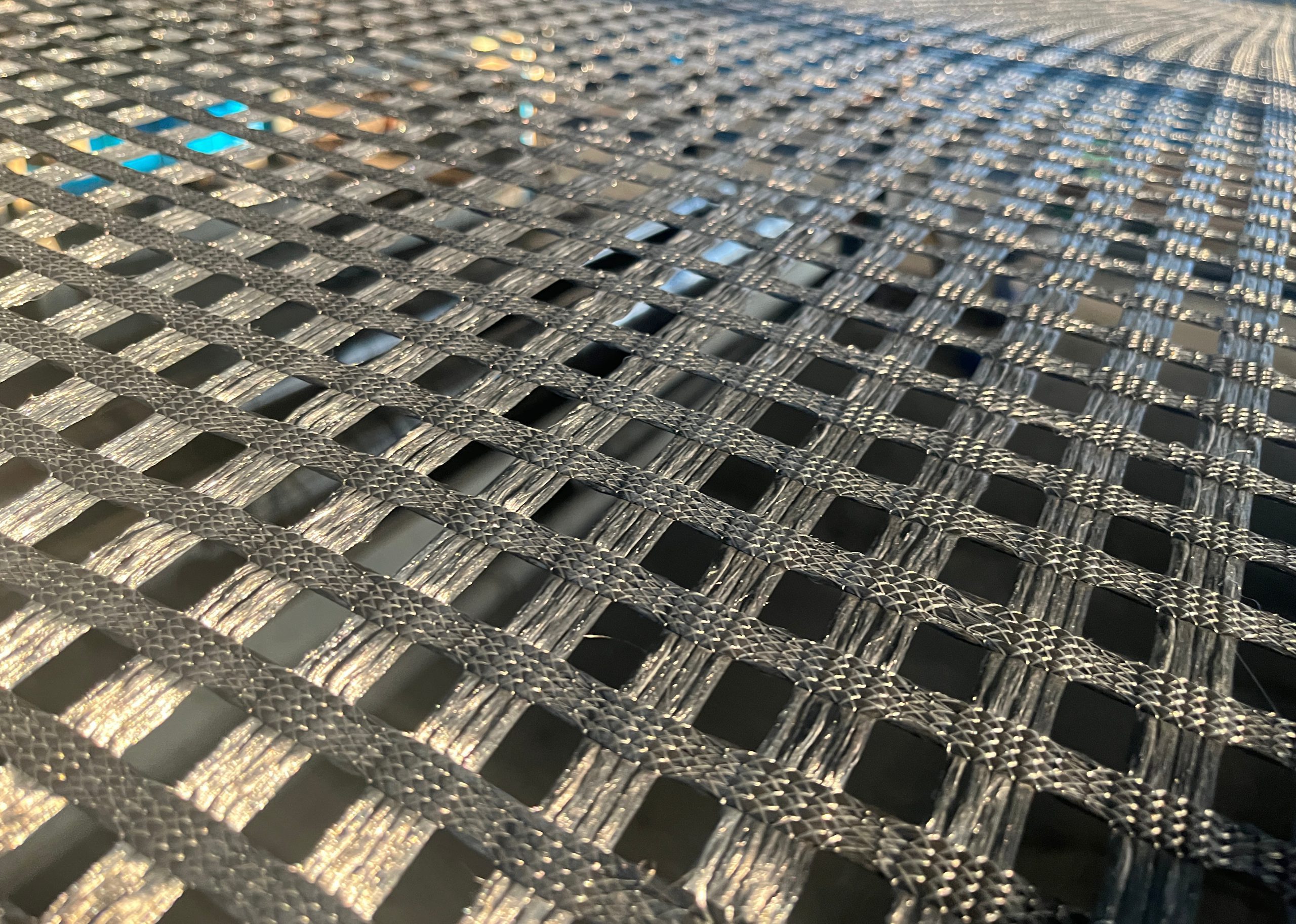

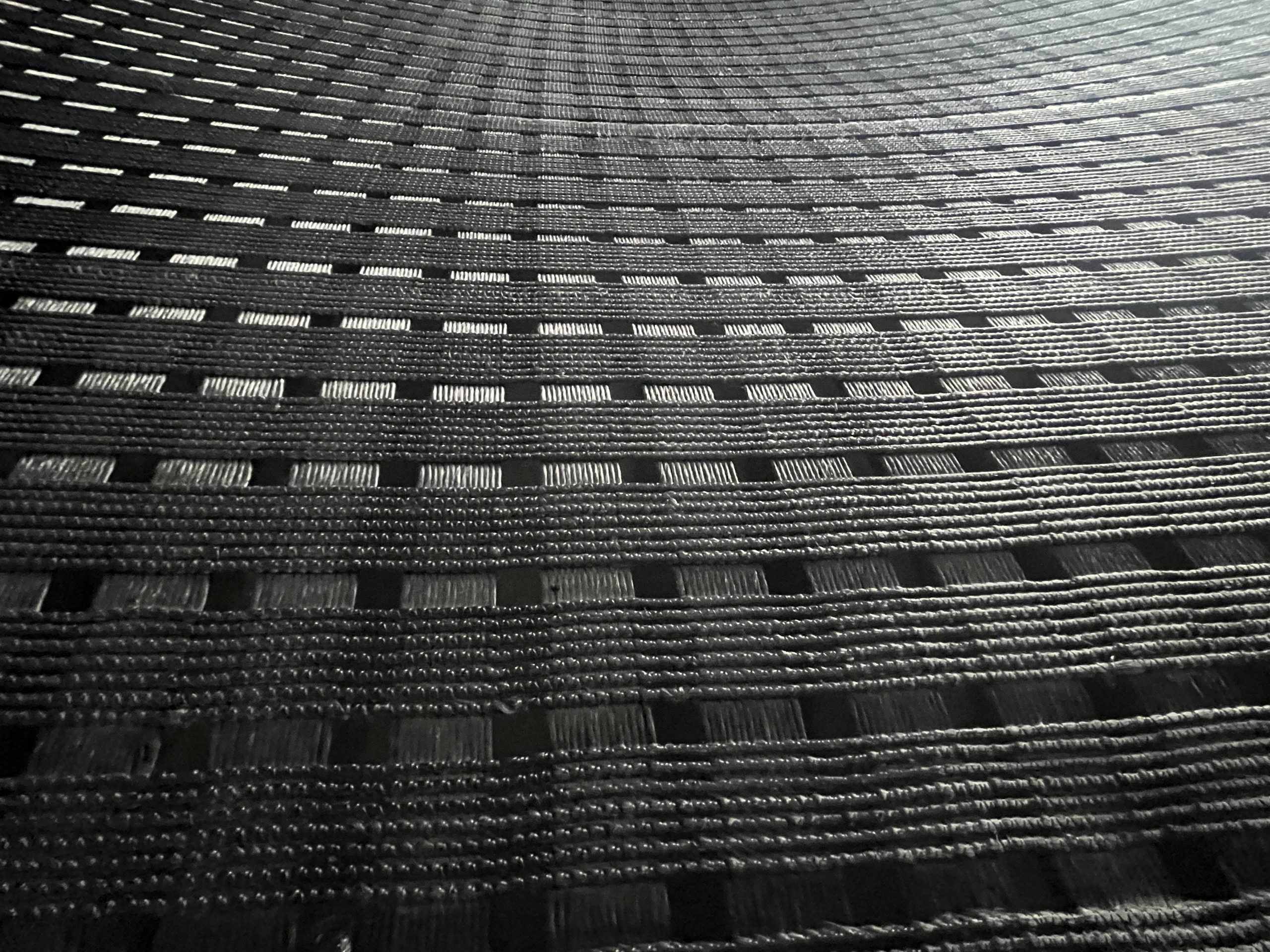

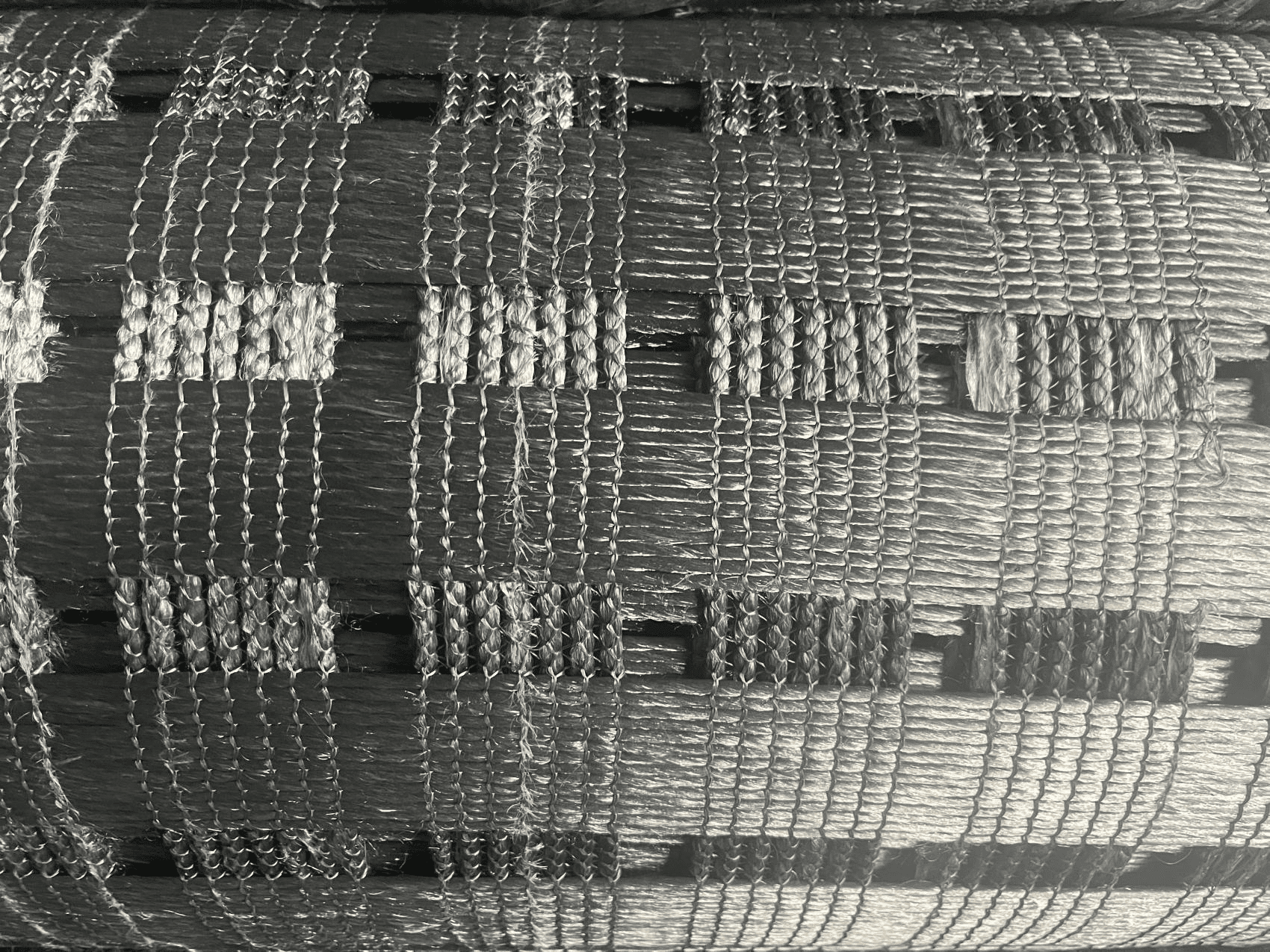

Polyester Biaxial Geogrids are high strength materials developed for bidirectional geogrid requirements for various applications of civil engineering.The material is manufactured by weaving polyester yarns in the rectangular form and coating the same with PVC.High performance rating is assured by virtue of the seaming method specially designed for more robust nodules.Polyester Biaxial Geogrids can be produced with different mesh sizes and tensile strength range from 20kN/m-1000kN/m,width of  polyester geogrids is from 1 to 5.2m,you can customize it according to your project needs.

Properties Of Polyester Biaxial Geogrids

*High modulus of elasticity,ideal for soil reinforcement

*High chemical and weathering resistance

*Low creep to ensure a service life over 100 years

*Integrates perfectly into environment friendly reinforcement systems

*Tensile strength range 20kN/m to 1000kN/m

*High resistance to UV radiation

 Application Of Polyester Biaxial Geogrids

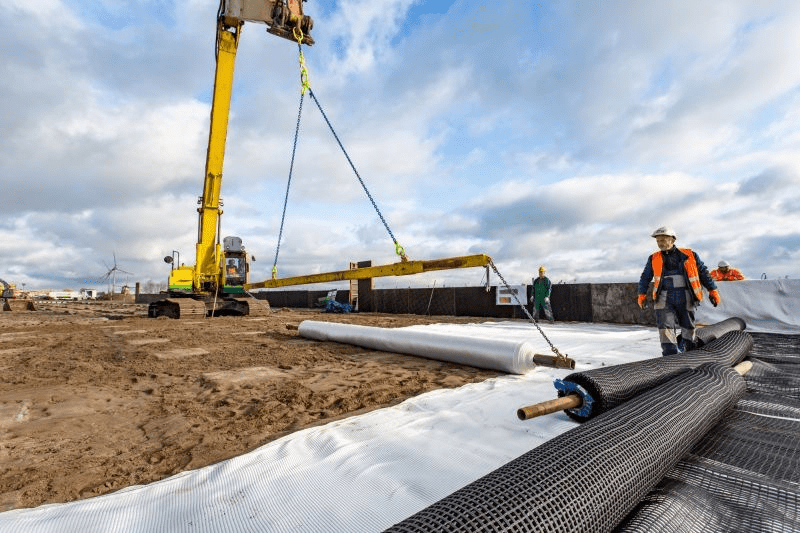

*Provide higher bearing capacity for the runway,apron and taxiway foundations at the airports

*As reinforcements for highway expansion projects

*Soil improvement works intended for reducing the quantities of  ballast and sub-ballast and preventing potential settlements at railway applications to be performed on poor bearing soil

*Improve the load bearing capacity and preventing local settlements for the foundations against the heavy loads at the foundations of container storage yards and industry structures

Specification Of Polyester Biaxial Geogrids :

Property		Test Method		PET 30/30	PET  50/50	PET 60/60	PET 80/80	PET 100/100	PET 150/150	PET 200/200
Ultimate tensile strength( ≥kN/m)	MD	EN ISO 10139		30	50	60	80	100	150	200
	CD			30	50	60	80	100	150	200
Approximate Mesh Size(mm)		Direct measure		12.7×12.7  25.4×25.4  40×40  50×50
After Treatment				PVC Soakage
Elongation at maximum load (%)	MD	EN ISO 10139		10
	CD			10
Temperature Resistant(℃)				-100~280
Coating Content (%)				≤30
Resistance to Installation Damage %SC/%SW/%GP				95/93/90
Design Life(years)				120
PET Yarn Properties
Carboxyl End Group(CEG)	mol/kg		GRI GG7	<30
Molecular Weight	Mn		GRI GG8	>25000
