Polyester Geogrid Composite With Non Woven Geotextile
Polyester Geogrid Composite With Non Woven Geotextile is a composite material-geogrid+non woven geotextile-that combines reinforcing and separating functions.This reduces the base material depth requirements while offering reinforcing.Polyester Geocomposite is the product of choice for base reinforcement on soils with low bearing capacity.
*Raw Material:Polyester yarns+Polyester/PP
*Types: 50/50kn,100/100kn
*Width:1m, 2m,2.5m,3.95m,5m,5.95m
*Length: 50m,100m
*Color: Black,White

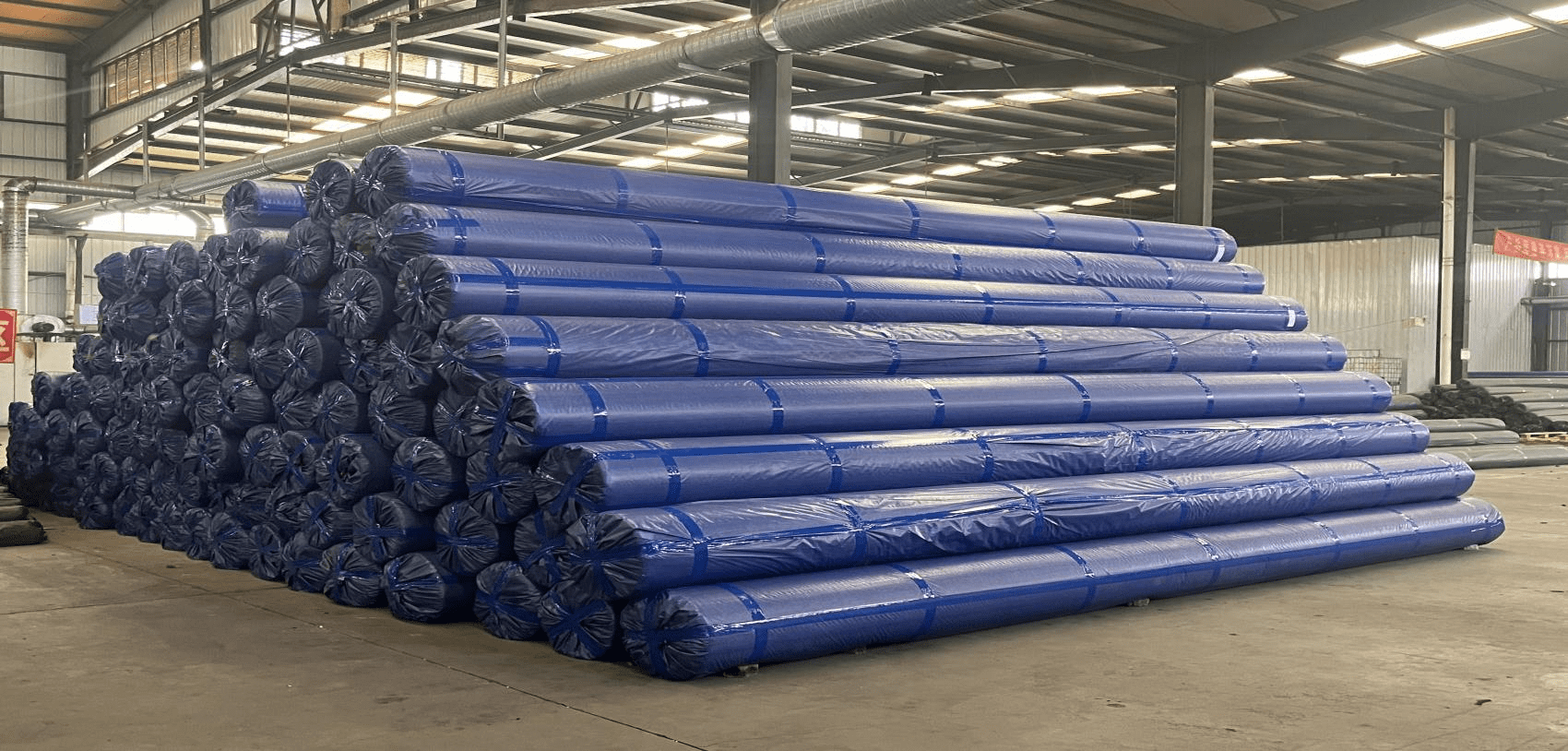

*Packaging: PE Bags/Woven Bags+Colored Tapes
*Certificate: ISO9001,CE,SGI,TRI,SGS etc
Tags:Geocompsoite,Polyester Geocomposite,Polyester Geogrid Composite With Nonwoven Geotextile,Polyester Geogrid Glued With Nonwoven Geotextile,Asphalt Polyester Geocomposite
Introduction

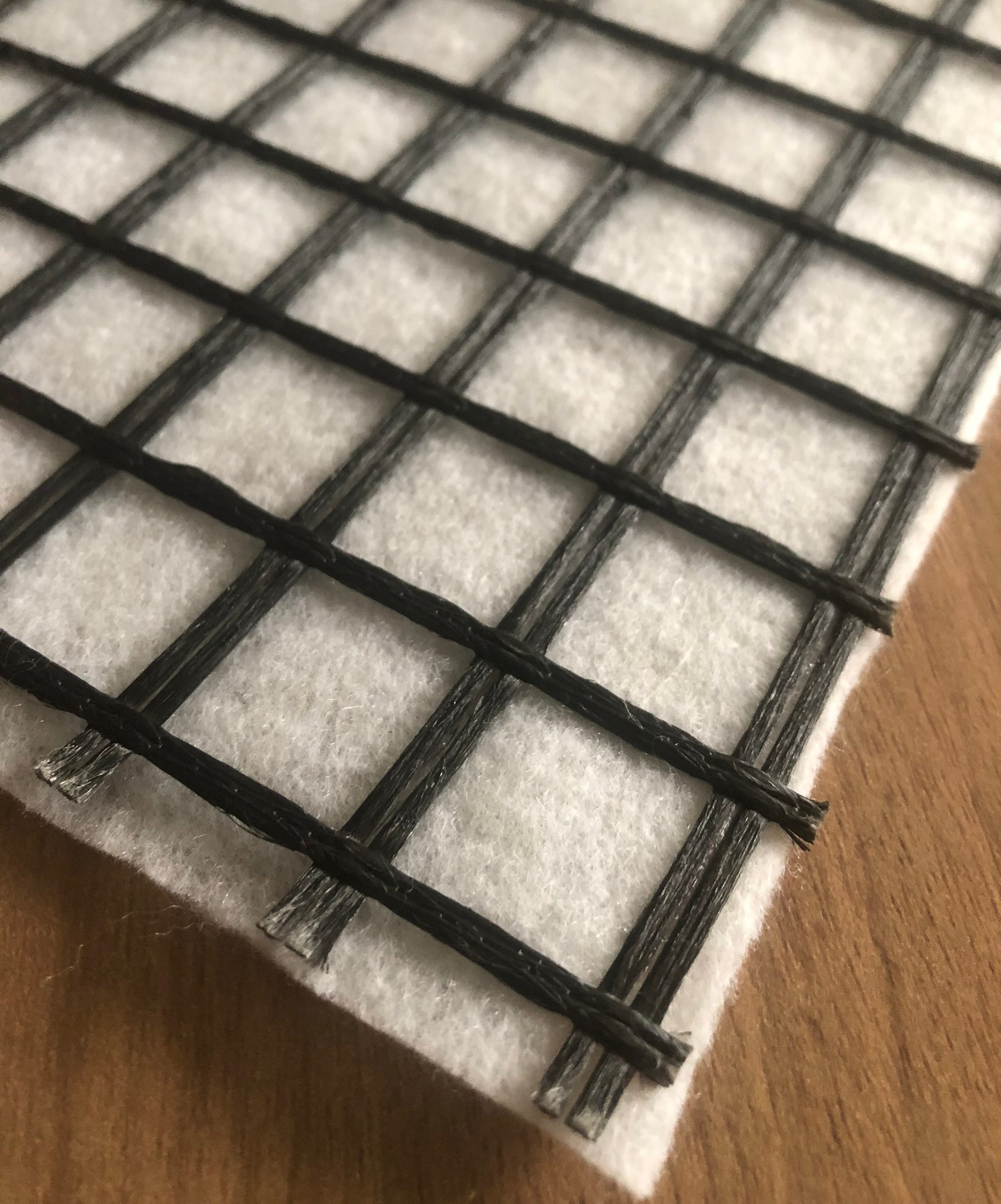

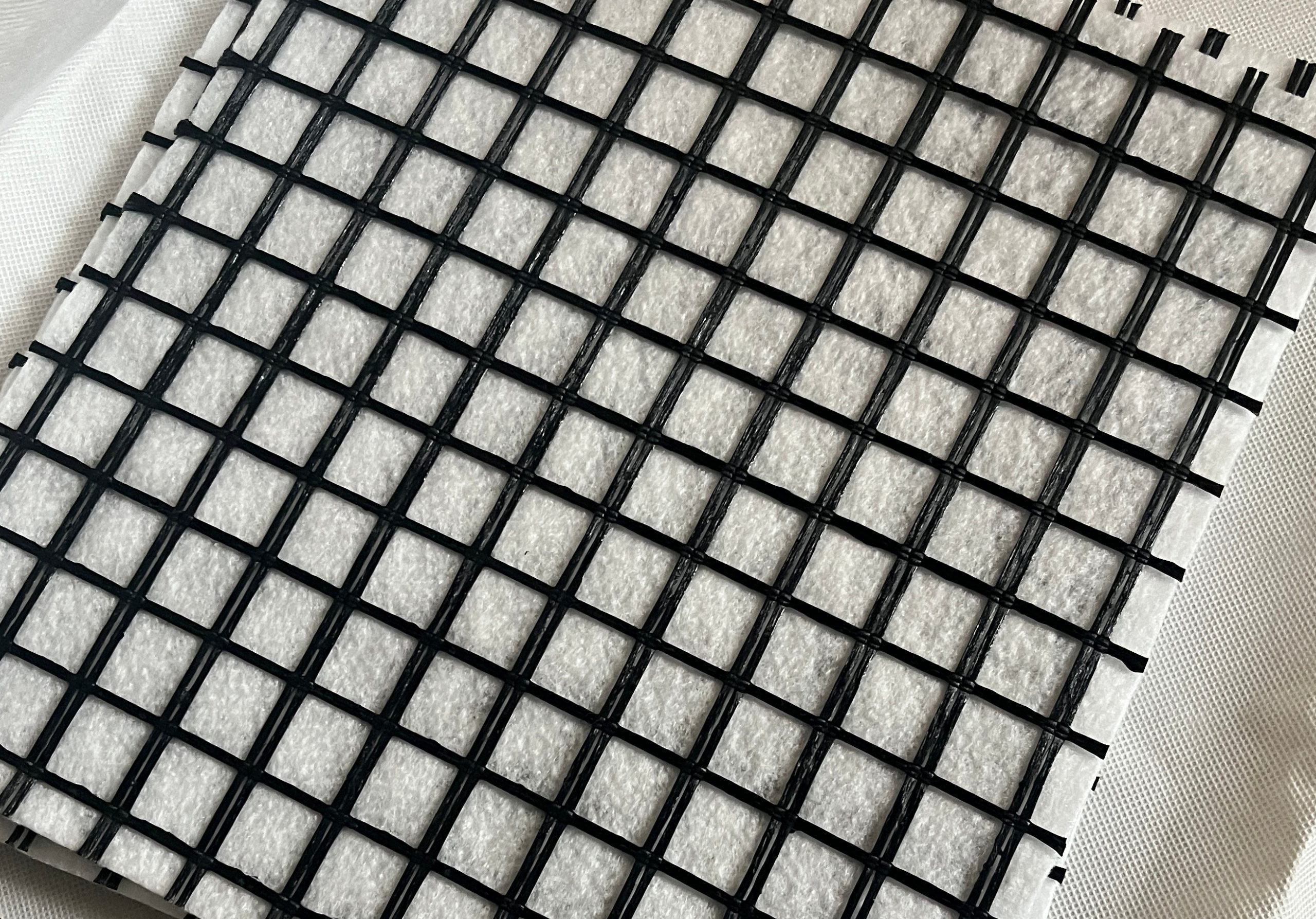

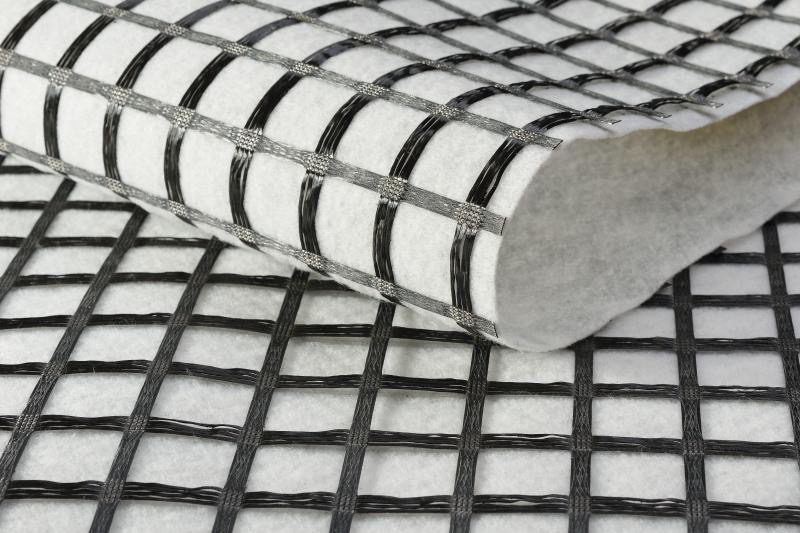

Polyester Geogrid Composite With Non Woven Geotextile is a double layer gecomposite material,which consists of a geogrid made of a high modulus polyester yarns and coated with special polymer dispersion.The geogrid is firmly bonded to a non woven polyester or polypropylene geotextile,ebabling the overall composite material to provide reinforcement,separation,drainage,and filtration in a single roll.
The square or orthogonal cellular structure is stitched with strong knots.Various opening sizes are available,and tensile strength ranging from 20 to 200kN/m are standard.The 5.4m width rolls make installation more efficient by greatly reducing the need to cut and overlap panels.
Advantages Of Polyester Geogrid Composite With Non Woven Geotextile
*Rehabilitation of small pavement areas
*Fast,cost-effective installation
*Self-adhesive bitumen sheet prevents infiltration of moisture and frost
*Small roll sizes for easy transportation
*Flexible,resistant material
*Enhanced bearing capacity for very soft soils
*Straightforward installation with no “memory effect”
*Large selection of products for cost-effective construction
*Lower base layer material
*Structural integrity of base course enhanced through excellent interlock of grid with soil
Application Of Polyester Geogrid Composite With Non Woven Geotextile
*Construction of the reinforced ground structures
*Uniform redistribution of load and layers separation
*Separation and filtration between soil layers

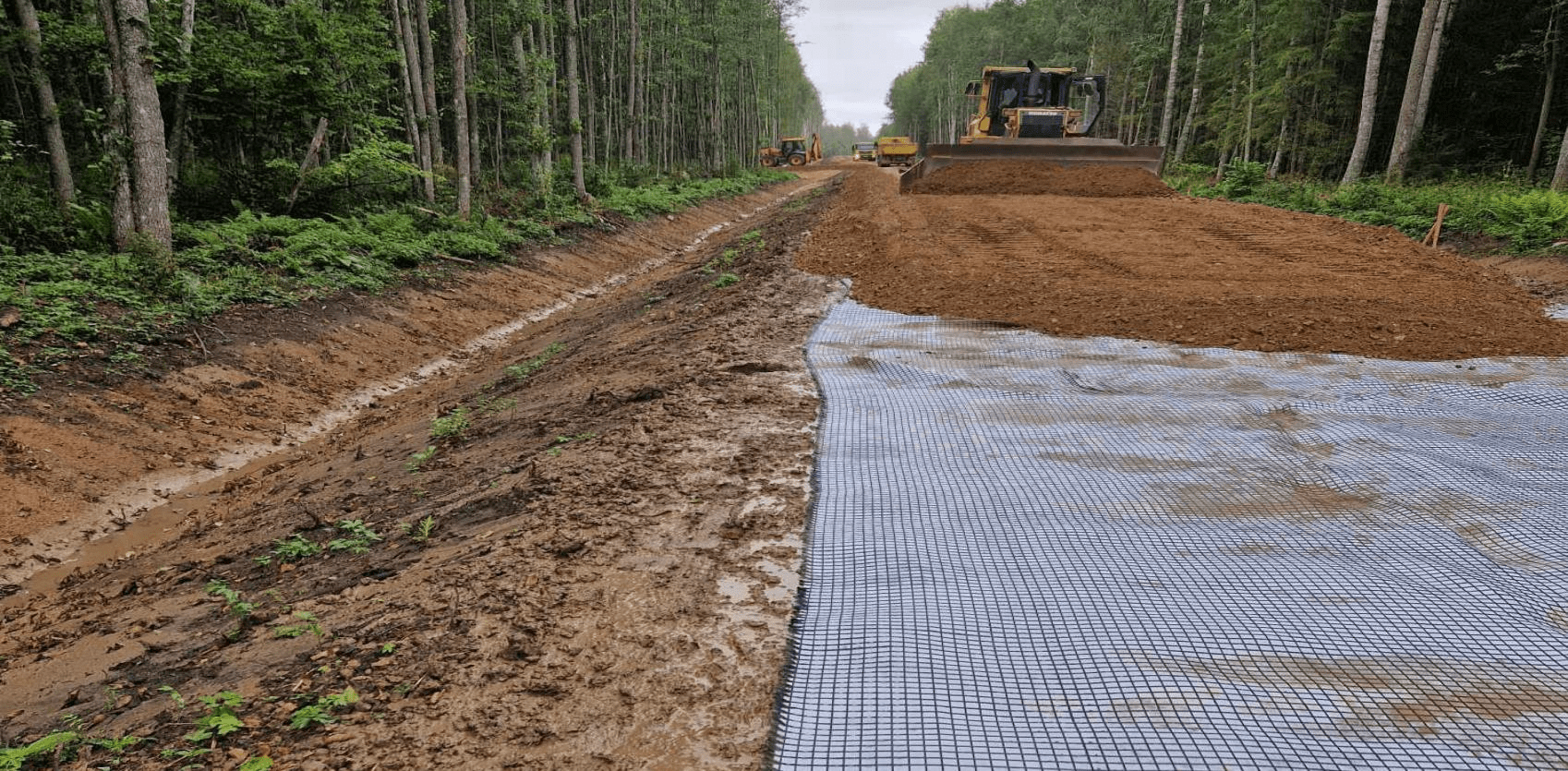

*Base Reinforcement and subgrade improvement
*Temporary and permanent roads
*Reinforcement of asphalt concrete layers of roadbase
Specification Of Polyester Geogrid Composite With Non Woven Geotextile :
| Property | Test Method |
50-50 |
100-100 |
120-120 |
|
| Ultimate tensile strength (kN/m) | MD |
ASTM D-5261
|
50 |
100 |
120 |
| CD |
50 |
100 |
120 |
||
| Elongation at Break (%) | MD |
12 |
|||
| CD |
12 |
||||
| Approximate mesh size(mm) | mm | Measured |
12.7×12.7 25.4×25.4 40×40 |
||
| Open Area of Grid | % | CWO 22125 |
＞80 |
||
| Shrinkage @375° F for 15min | % |
|
<1 |
||
| Melting Point | ℃ |
ASTM D-276 |
255 |
||
| Spunbond Nonwoven Fabric | g/m2 |
|
25/30/40/50 |
||
| Roll Dimension | m | 1*100m,2x100m,2.5x100m,3.95x100m,5x100m,6x100m | |||
