Introduction

Polyester Spunbond Non Woven Fabric are made from 100% polyester chips,after the polymer is extruded and stretched to form a continuous filament, the filament is laid into a net, and the fiber net is then bonded by itself, thermal bonding, chemical bonding or mechanical reinforcement methods, so that the fiber net becomes a non woven fabric.

Properties Of Polyester Spunbond Non Woven Fabric

*High strength and high elongation

*Good high temperature resistance and low temperature resistance

*Aging resistance and UV resistance

*Good stability and air permeability

*Corrosion resistance, sound insulation, mothproof, non-toxic.

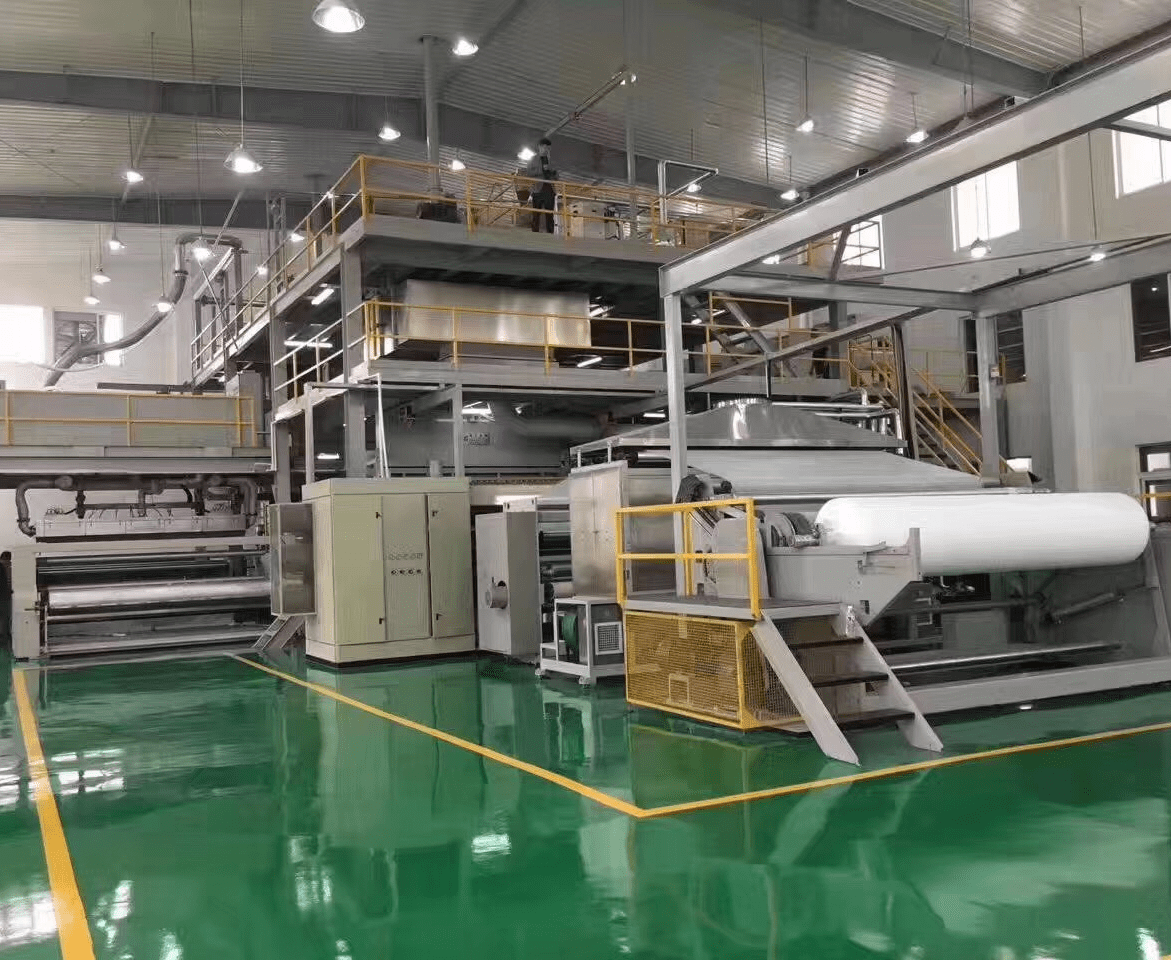

Manufacturing Process Of Polyester Spunbond Non Woven Fabric

Processed polyester chips–big screw stem,high temperature melting–filters–metering pump (dosing)–spinning(spinning entrance tensile pumping up and down)– cooling–air traction–net curtain into net–up and down roller (pre-reinforcement)–hot rolling mill (reinforced)–winding–down cloth cutting–weighing and packing–finished product warehouse.

Application Of Polyester Spunbond Non Woven Fabric

*Home textiles: clothing softener and additive, vacuum cleaner bag

*Packaging: cable wrapping cloth, handbag, container bag, flower materials

*Decoration: wall decoration cloth, floor leather base, electrostatic flocking base cloth.

*Agriculture: agricultural harvest cloth, crop and plant protection, weed protection belt.

*Waterproof material: high-grade breathable (wet) waterproof material base cloth.

*Industrial applications: filter materials, insulation materials, electrical appliances, reinforcement materials, support materials.

*Car decoration materials.

*Others:composite membrane base cloth, baby and adult diapers, sanitary napkins, protective supplies, disposable sanitary materials.

Specification Of Polyester Spunbond Non Woven Fabric :

Item	Spunbonded Nonwoven Fabric
Weight (g/m2)	thickness (mm)	Tensile strength(N/5cm)		Elongation(%)		Shrinkage (%)	Air-permeability (L/mz.see)	Embossing type
		MD	CD	MD	CD
17	0.13	45	25	20	18	≤2.5	4500	point
20	0.15	55	40	20	18	≤2.5	3200	point
30	0.19	80	60	20	18	≤2.5	3000	point
40	0.22	100	80	20	18	≤2.5	1800	point
50	0.28	120	80	20	18	≤2.5	1450	point
75	0.33	150	120	20	18	≤2.5	950	point
85	0.37	170	140	20	18	≤2.5	800	point
100	0.4	200	160	20	18	≤2.5	500	point
120	0.45	240	190	20	18	≤2.5	300	point
150	0.48	300	240	20	18	≤2.5	220	point
200	0.58	360	220	20	18	≤2.5	140	point
240	0.61	420	250	20	18	≤2.5	90	point
