Introduction

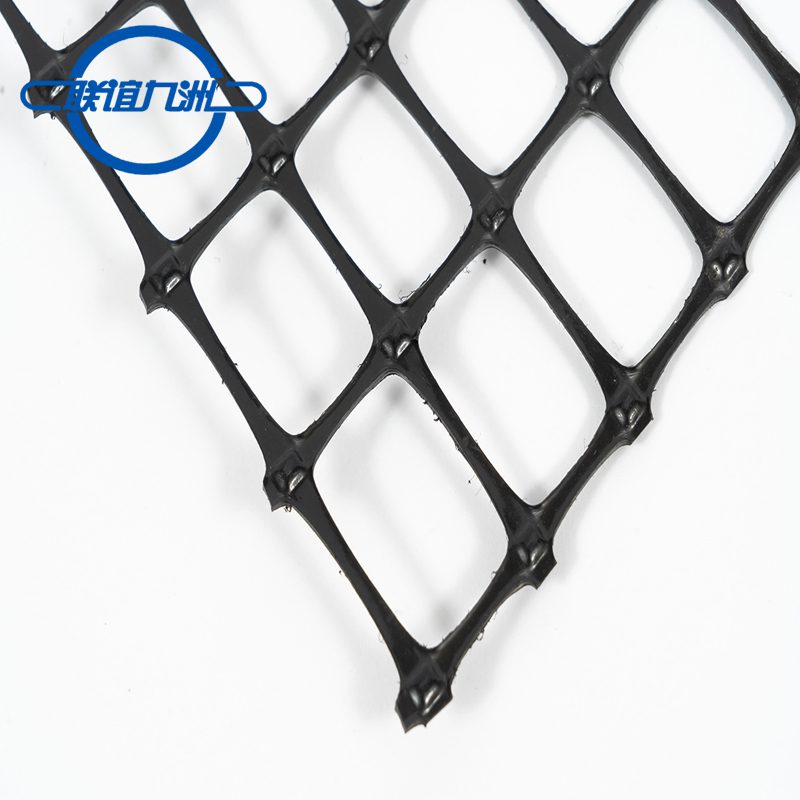

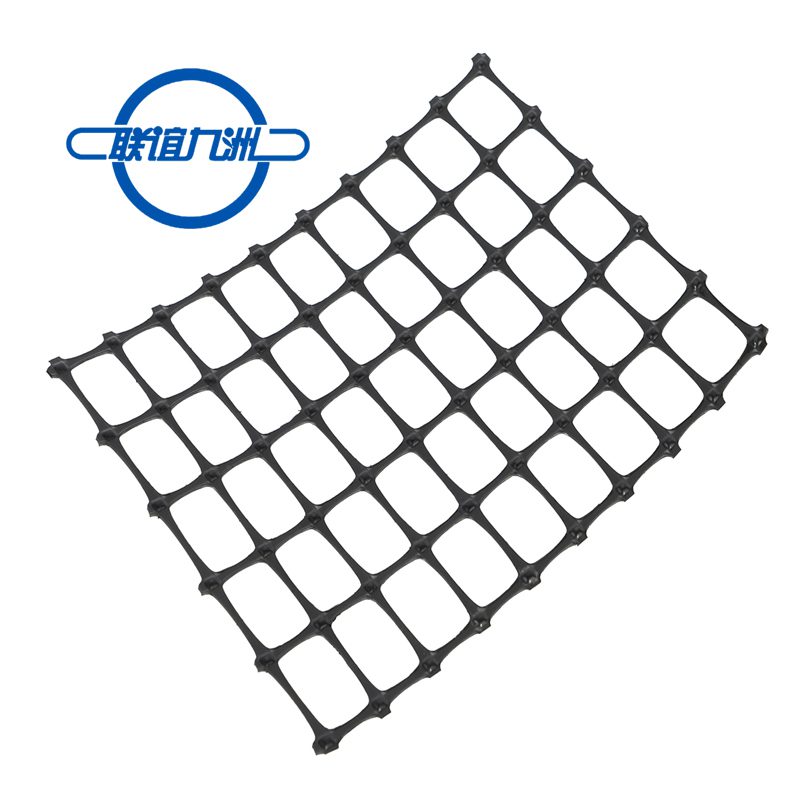

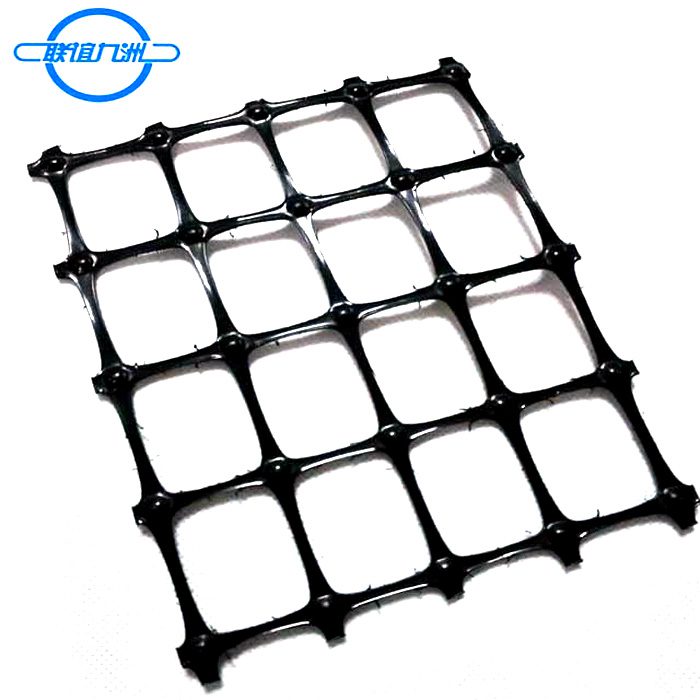

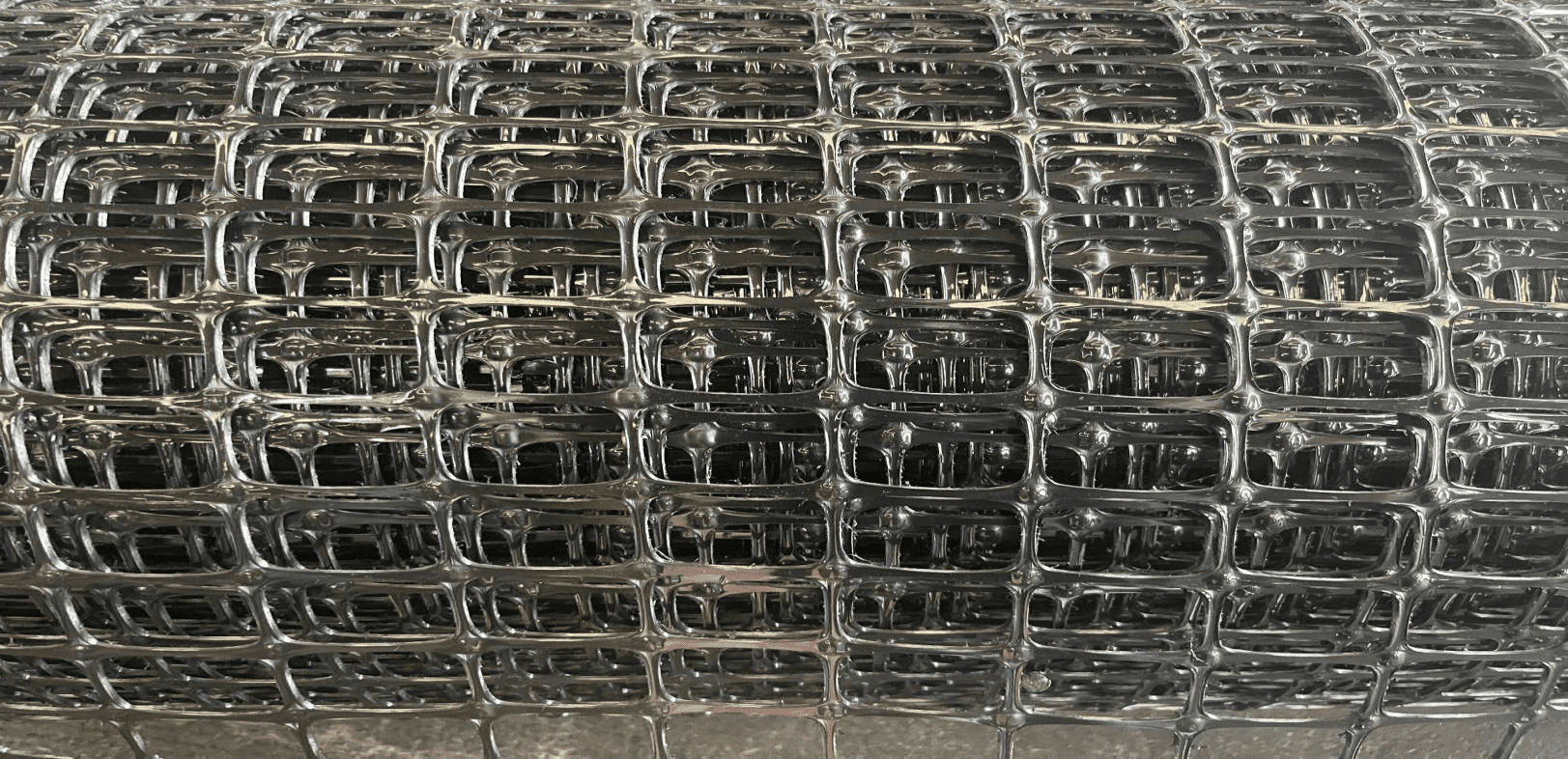

BX1200 Biaxial Geogrid is manufactured from high strength Polypropylene,a unique process of extruding,punching and heating to biaxial orientation to enhance tensile properties for high flexural rigidity and high tensile strength at ribs and junctions that are required for long-term interlock and confinement in soil stabilization and base reinforcement applications.

Properties Of BX1200 Biaxial Geogrid

*High tensile strength in two directions

*Stable integrally formed structure

*100% UV Resistance and 93% Junction Efficiency

*Improve good long-term performance

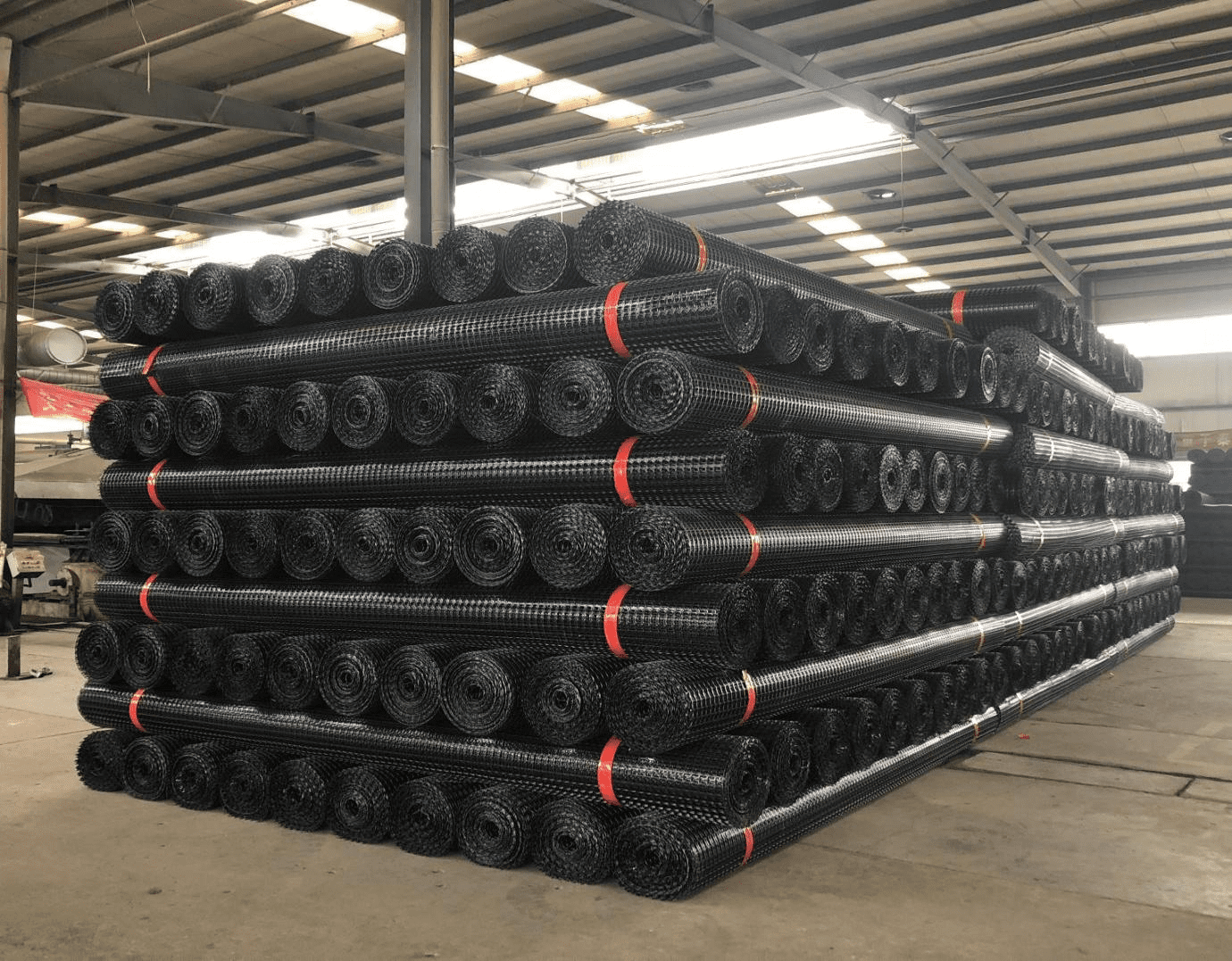

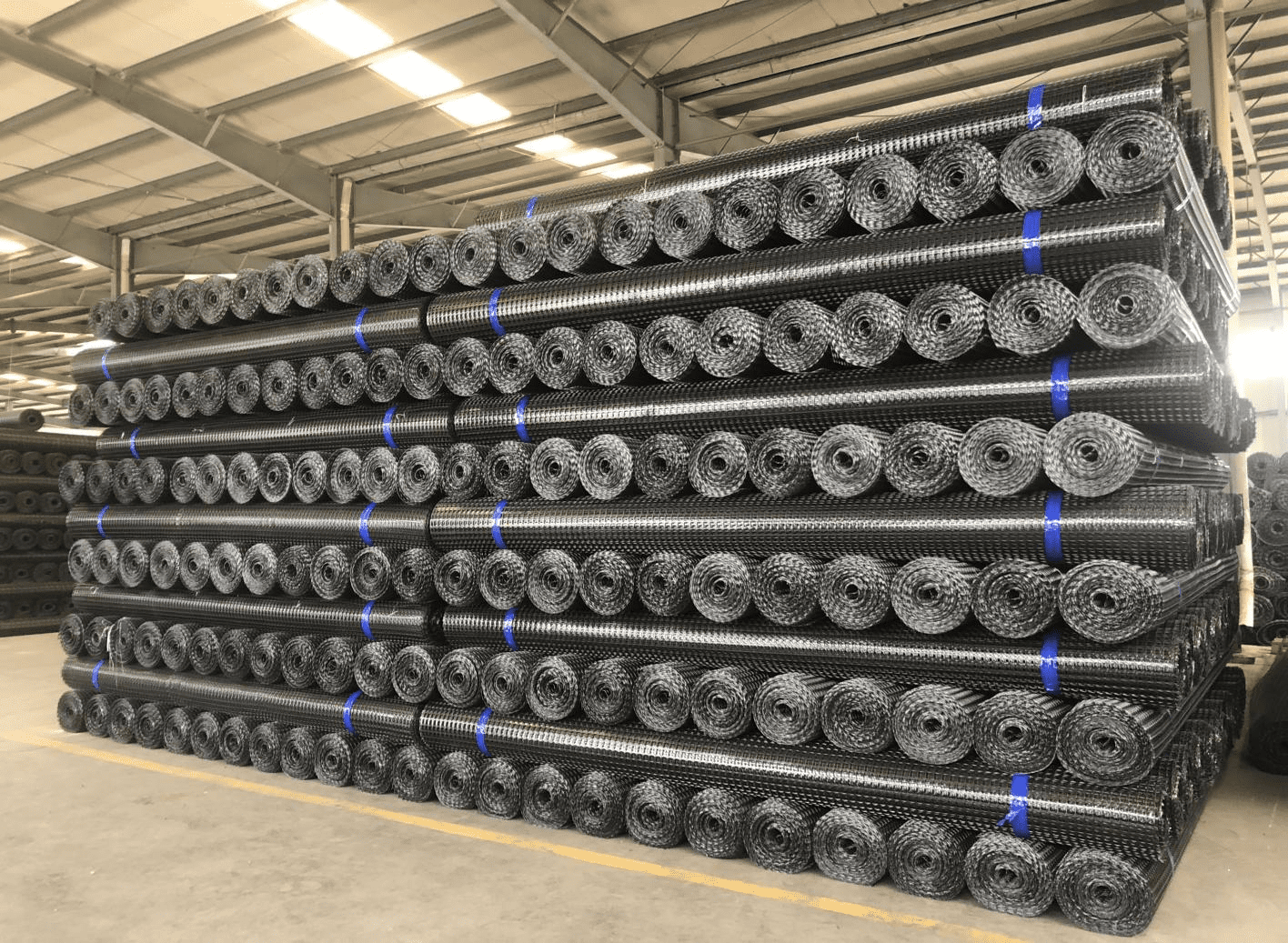

*Roll size:3.95*50m

*Elongation: 13% Max

Advantages Of BX1200 Biaxial Geogrid

*Reduce cost in road construction

*Preventing cracking and subsiding of road

*Reduces aggregate thickness in requirements

*Increase the bearing capacity of the roadbed and foundation,extend the life of the road

*Suitable for most common soils

Application Of BX1200 Biaxial Geogrid

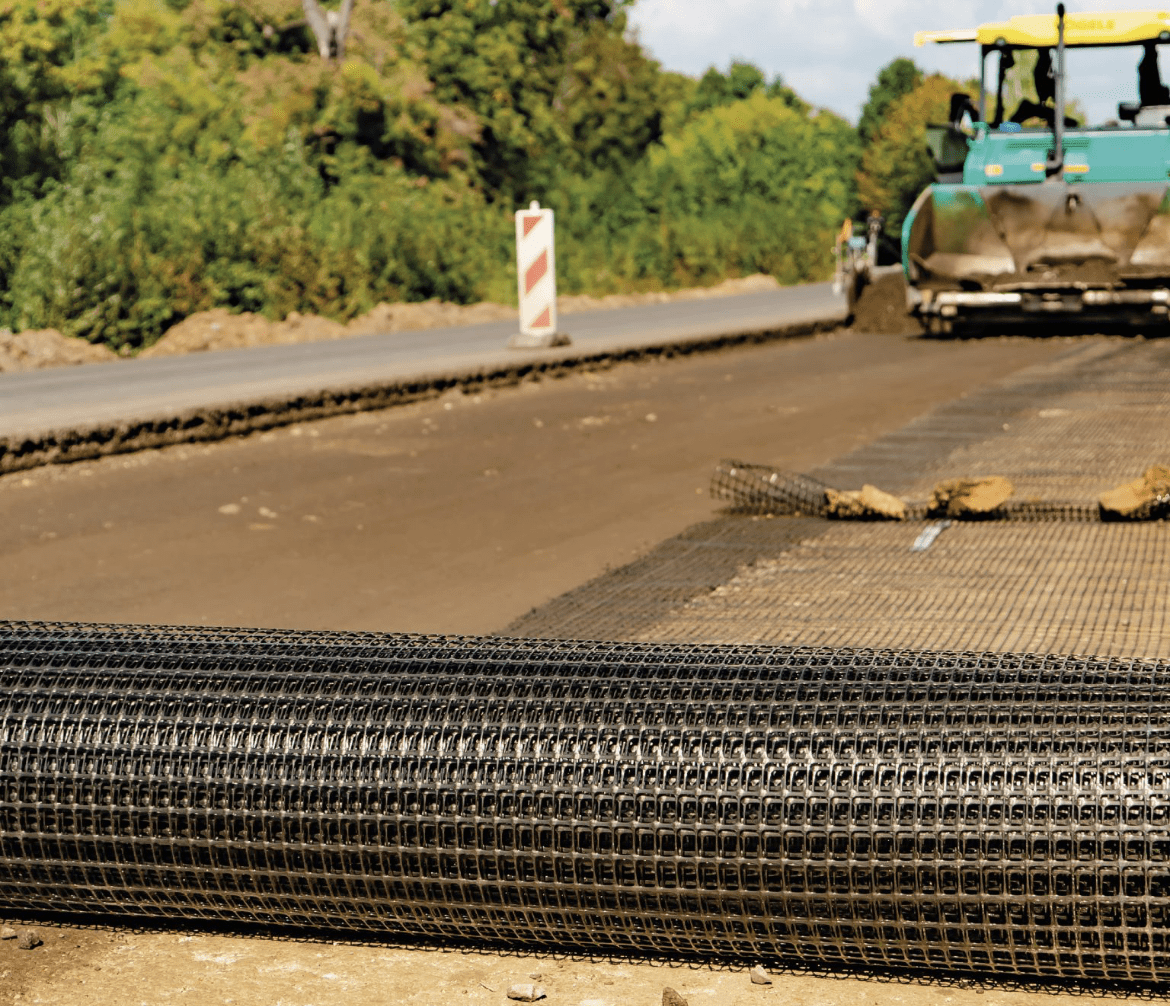

*Weak foundation reinforcement, such as road, railway weak foundation treatment

*Dike, beach, shallow river revetment, river bed, river bank management

*Landslide control and wall protection, green retaining wall, slope, embankment panel structure

*Pipe and sewer support cushion

*Sand fixation management of deserts and beaches

*Soil side slope protection, rock slope hanging net soil greening

Specification Of BX1200 Biaxial Geogrid :

Index Properties	Test method	Units	MD Values	TD Values
■  Polymer	–	–	PP
■  Minimum Carbon black	ASTM D 4218	%	2
■  Tensile strength @ 2% strain	ASTM D 6637	kN/m(lb/ft)	6.0 (410)	9.0(620)
■  Tensile strength @ 5% strain	ASTM D 6637	kN/m(lb/ft)	11.8 (810)	19.6 (1340)
■  Ultimate tensile strength	ASTM D 6637	kN/m (lb/ft)	19.2(1310)	28.8(1970)
■  Strain @ Ultimate strength	ASTM D 6637	%	13	13
Structural Integrity
■  Junction Efficiency	GRI GG2	%	93
■  Flexural Rigidity	ASTM D 7748	mg-cm	750,000
■  Aperture Stability	COE Method	m-N/deg	0.65
Dimensions
■  Aperture Dimensions	–	mm (in)	25 (1.0)	33 (1.3)
■  Minimum Rib Thickness	ASTM D 1777	mm (in)	1.27 (0.05)	1.27 (0.05)
■  Roll Width	–	m (ft)	3.95 (12.9)
■  Roll Length	–	m (ft)	50 (113)
