Introduction

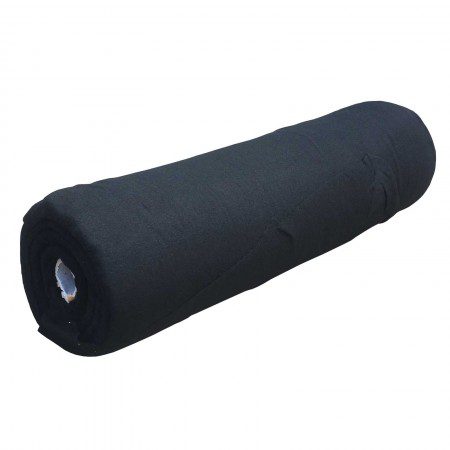

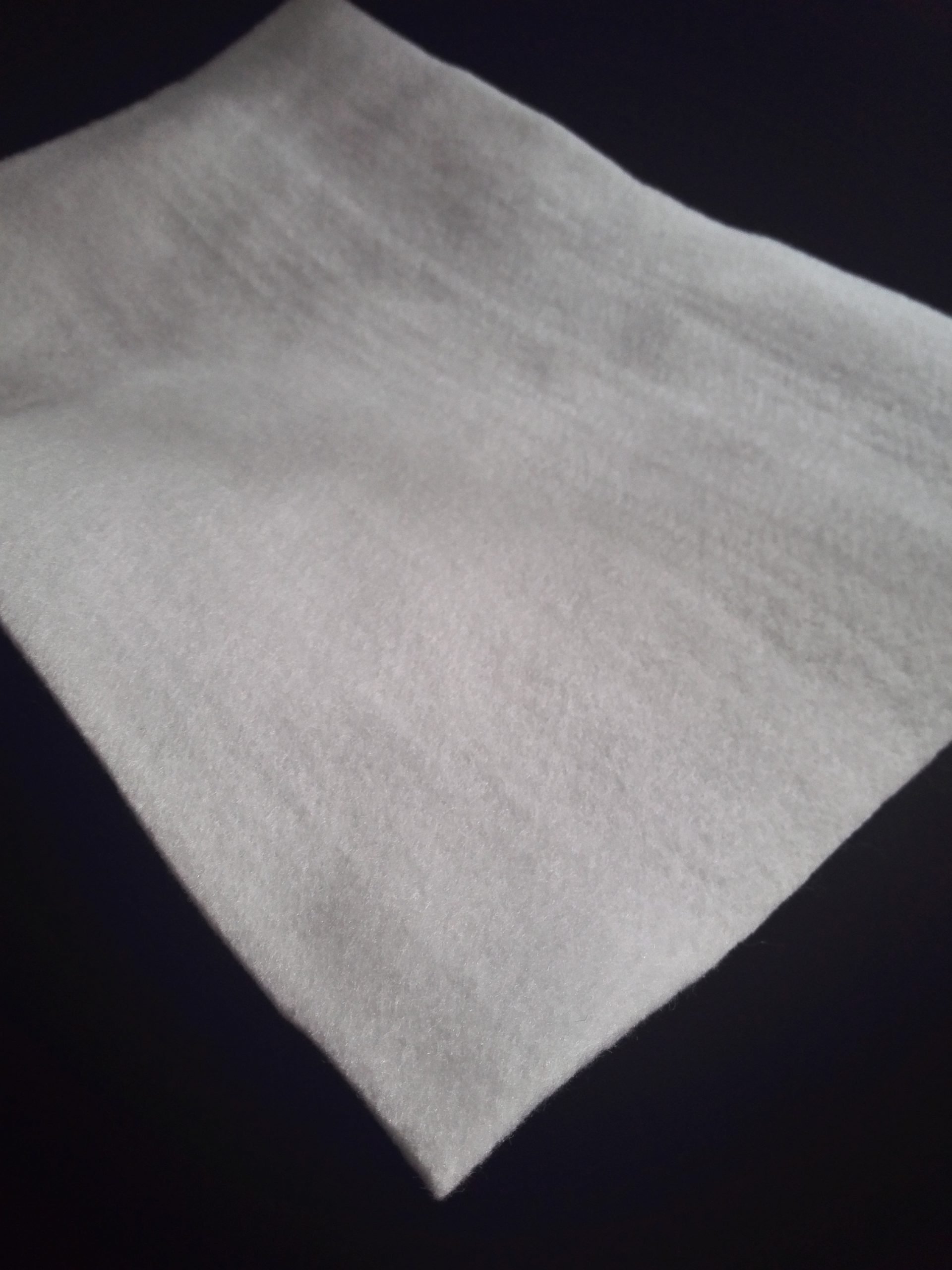

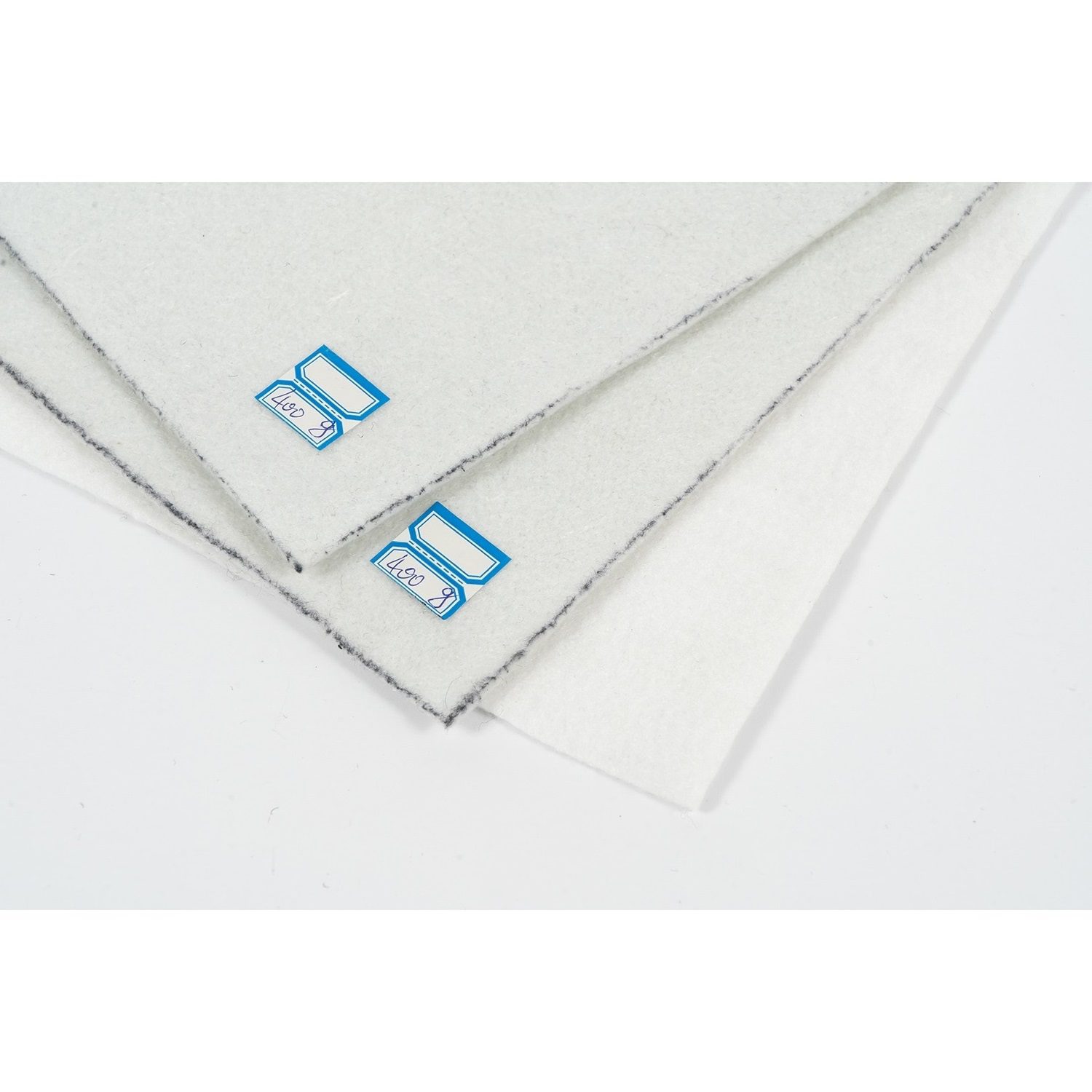

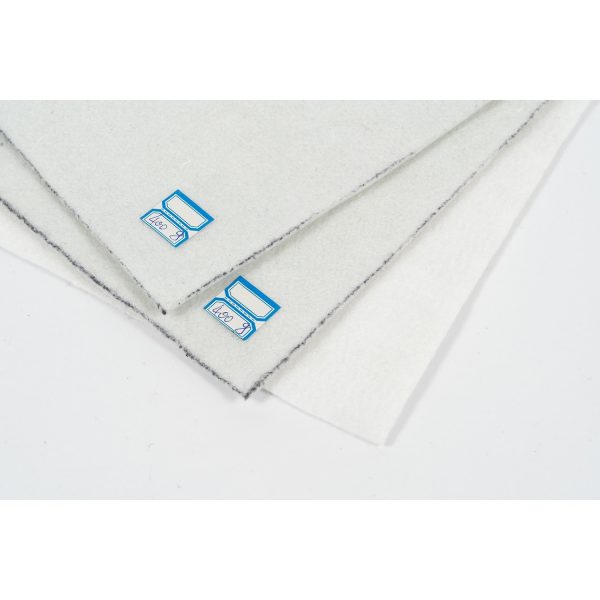

PP Non Woven Geotextiles are produced from 100% Polypropylene fiber,and are specially designed to provide reinforcement,separation,drainage,protection and erosion control.It serves a wide variety of functions,including separation,filtration,protection and containment.In addition to the benefits of superme product quality and versatility,customers can also choose from a wide range of options to obtain a cost-effective solution tailored to their projects.

Properties Of PP Non Woven Geotextile

 *Separation

The aim of the separation function is keeping two soils with different granulometric composition separated,without preventing water circulation.In the construction of roads and paved areas,when the geotextile is placed between the subgrade and the filling material,it prevents the construction between the layers.

*Filtration

The geotextile acts as a filter preventing the migration of the fine particles of the subgrade and allowing the water to flow out through the surface of the geotextile itself.

*Reinforcement

The geotextile protects the geomembrane against mechanical punctures in all the waterproofing systems as tunnels,landfills,ponds,flat roofs.

Advantages Of PP Non Woven Geotextile

*Certified quality for a wide range of application

*No need for mineral filters or protective layers

*Wide-ranging configurations allow cost-effective product selection

*Long service life

*Fast and straightforward installation

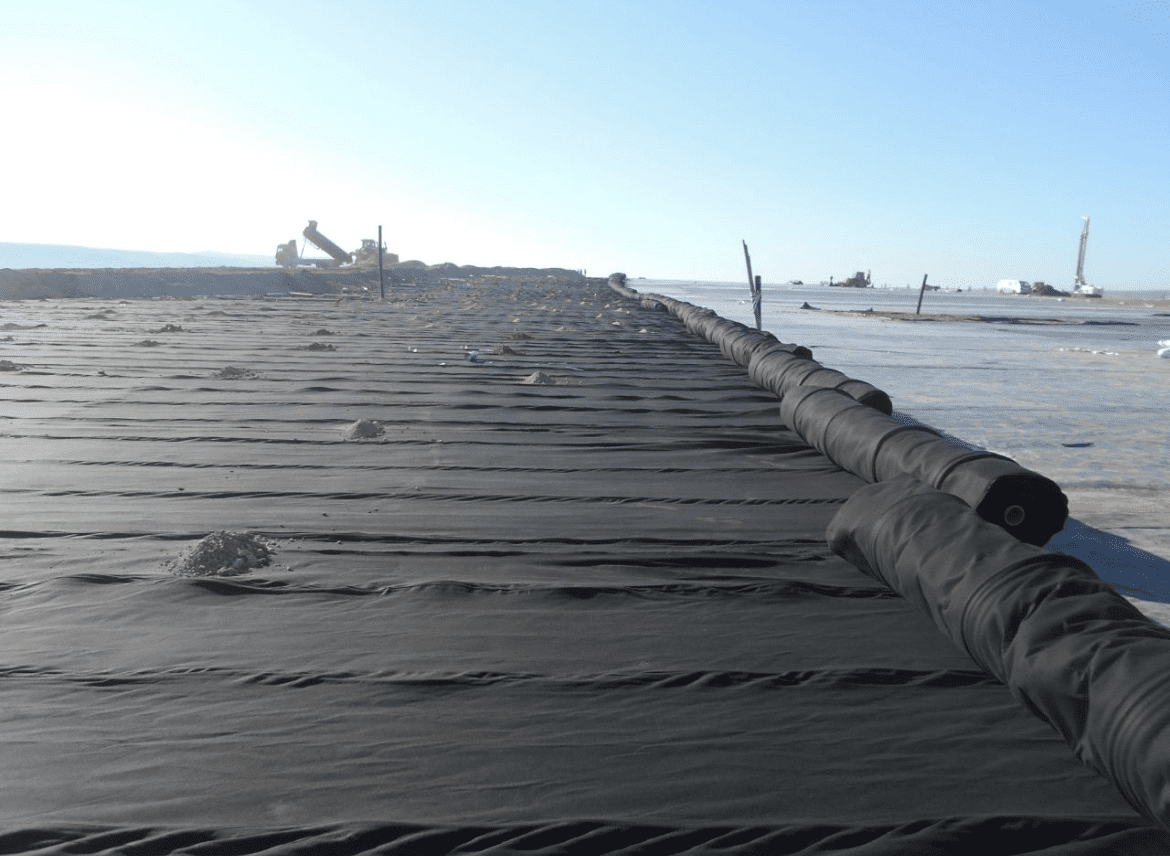

Application Of PP Non Woven Geotextile

*It protects the system to avoid obstruction of the pores of drainage pipe,ditch or channel by fine material

*French drain ditches

*Green roof drainage

*At perforated pipe coatings

*At vertical applications such as tunnels and retaining wall

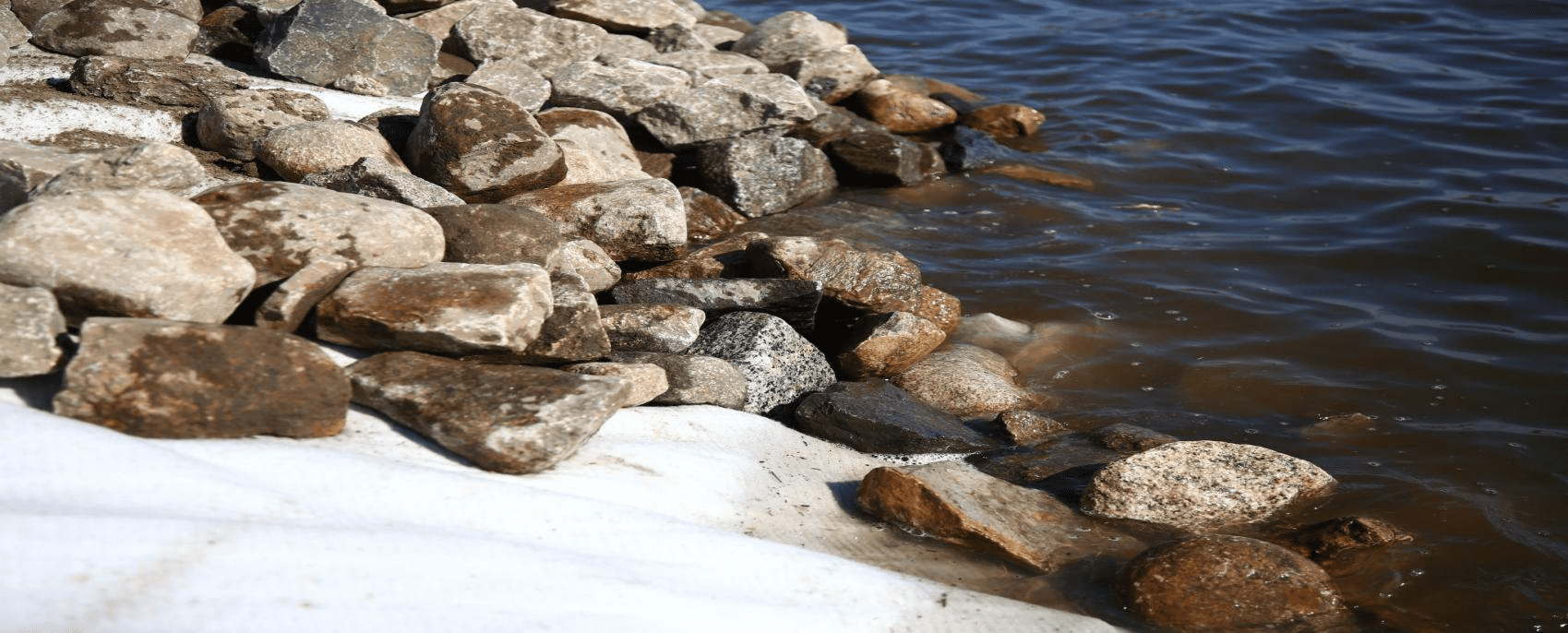

*Coastal structures

Specification Of PP Non Woven Geotextile :

Index Properties	Test Method	Unit	PP Non Woven Geotextile
Weight	ASTM D5261	g/m2	100	125	150	200	250	300	350	400	450	500	550	600
Ultimate Tensile Strength	ASTM D4595	≥kN/m	5	6.5	8	11	15	20	22	24	26	28	31	34
Tensile Elongation	ASTM D4595	%	50-80
Grab Tensile Strength	ASTM D4632	≥N	300	450	600	900	1000	1200	1400	1600	1800	2000	2200	2400
Grab Elongation	ASTM D4632	%	50-80
Trapezoid Tear Strength	ASTM D4533	≥N	150	190	240	350	380	420	450	500	540	580	610	650
CBR Puncture Strength	ASTM D6241	≥kN	1.0	1.2	1.6	2.5	3.0	3.5	3.9	4.3	4.8	5.3	5.7	6.2
Puncture Resistance	ASTM D4833	≥N	141	201	261	382	454	565	726	817	931	970	1028	1130
Drop Cone Resistance (hole-φ)	BS EN 918	mm	39	36	33	27	24	20	16	15	15	14	13	13
Hydraulic Properties
Apparent Opening Size O90	ASTM D4751	≤mm	0.13	0.12	0.12	0.12	0.12	0.11	0.10	0.09	0.08	0.08	0.08	0.08
Permeability	ASTM D4491	cm/s	0.41	0.41	0.41	0.41	0.40	0.40	0.39	0.39	0.39	0.39	0.39	0.39
Physical Identification Properties
Thickness	ASTM D5199	mm	1.0	1.3	1.7	2.1	2.4	2.5	2.8	3.0	3.2	3.5	3.6	3.8
Roll Width	–	m	1-6
Roll Length	–	m	50/100
