Introduction

PP Spunbond Non Woven Fabric is a kind of fabric that does not require spinning and weaving. It is just a textile short fiber or filament that is oriented or randomly braced to form a fiber network structure, and then is reinforced by mechanical, thermal bonding or chemical methods. Spunbonded non woven fabric is in the polymer has been extruded, stretched to form a continuous filament, filament laid into a network, and then through the self-bonding, thermal bonding, chemical bonding or mechanical reinforcement method, so that the fiber network into non-woven fabric.

Properties Of PP Spunbond Non Woven Fabric

 *High strength

*Good filtration performance

*No adhesive, non-toxic, flame retardant

*Anti-static, anti-radiation

*Hydrophobic moisture conduction, antibacterial

Manufacturing Process Of PP Spunbond Non Woven Fabric

Polymer material (polypropylene chips)–big screw stem,high temperature melting–filters–metering pump (dosing)–spinning(spinning entrance tensile pumping up and down)– cooling–air traction–net curtain into net–up and down roller (pre-reinforcement)–hot rolling mill (reinforced)–winding–down cloth cutting–weighing and packing–finished product warehouse.

Application Of PP Spunbond Non Woven Fabric

*Medical and health field: PP spunbond non woven cloth can be used to make surgical clothing, protective clothing, disinfectant bag cloth, masks, diapers, sanitary napkins, medical gaskets, medical gauze and other medical supplies, its waterproof, breathable, antibacterial characteristics for medical care to provide convenience.

*Home decoration field: PP spunbond non woven fabric can be used as wall cloth, tablecloth, bed sheet, bedspread and other household decoration materials, with environmental protection and durable characteristics.

*Clothing field: PP spunbond non woven fabric can be used to make lining, bonding lining, wadding, shaping cotton, a variety of synthetic leather cloth and other clothing materials, with comfortable and soft characteristics.

*Industrial field: PP spunbond non woven fabrics are used in industry to make filter materials, insulation materials, cement bags, geotextiles, covering cloth, etc., because of its durable, waterproof characteristics are favored.

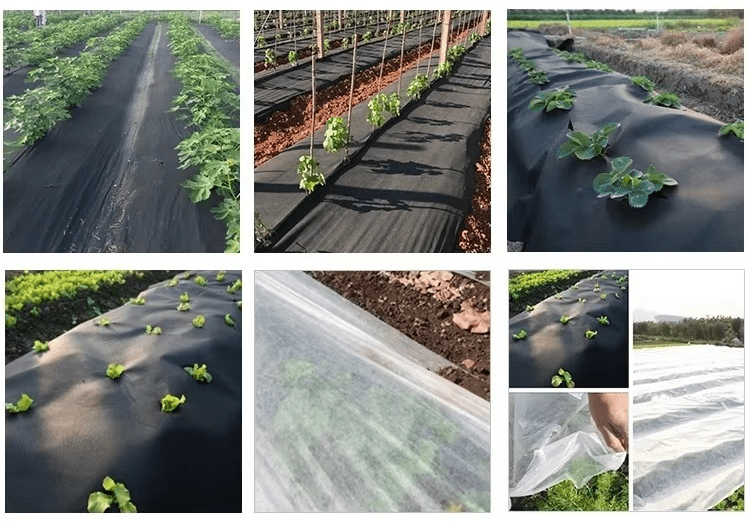

*Agricultural field: PP spunbond non woven fabric can also be used as agricultural covering materials, such as crop protection cloth, seedling breeding cloth, irrigation cloth, etc., has a certain thermal insulation and moisturizing effect.

*Other fields: In addition, PP spunbond non woven fabrics can also be used in the interior materials of the automotive industry, space cotton in the aerospace field, and as packaging materials, wiping cloth etc



Specification Of PP Spunbond Non Woven Fabric :

Item	Spunbonded Nonwoven Fabric
Weight (g/m2)	thickness (mm)	Tensile strength(N/5cm)		Elongation(%)		Shrinkage (%)	Air-permeability (L/mz.see)	Embossing type
		MD	CD	MD	CD
17	0.13	45	25	20	18	≤2.5	4500	point
20	0.15	55	40	20	18	≤2.5	3200	point
30	0.19	80	60	20	18	≤2.5	3000	point
40	0.22	100	80	20	18	≤2.5	1800	point
50	0.28	120	80	20	18	≤2.5	1450	point
75	0.33	150	120	20	18	≤2.5	950	point
85	0.37	170	140	20	18	≤2.5	800	point
100	0.4	200	160	20	18	≤2.5	500	point
120	0.45	240	190	20	18	≤2.5	300	point
150	0.48	300	240	20	18	≤2.5	220	point
200	0.58	360	220	20	18	≤2.5	140	point
240	0.61	420	250	20	18	≤2.5	90	point
