1.Introduction
Geotextile,also known as geotextile fabric, is a permeable geosynthetic material that exists between soil and pipes,gabions,or retaining walls,enhancing water movement and hindering soil movement.
Continuous filament non woven geotextile is made from super strength polyester chips as raw materials, and is produced through spinning,air stretch,web laying,pre-pressing and needling punched.

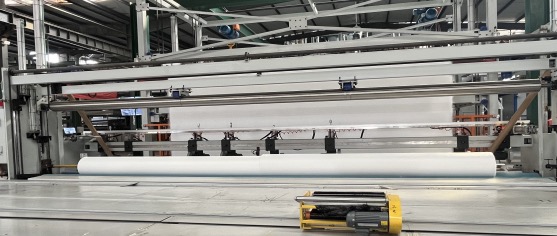

2.Polyester Filament Geotextile Manufacturing Process
The series of needle punched non woven geotextile products are formed through fine carding,multiple precise needle punching or appropriate hot rolling treatment.Long-fiber needle punched non woven geotextile is made by stretching the fibers through jet drawing,laying them into a fiber web,and then pre-pressing the fiber web through an overheated roller and reinforcing it with needling to form a fabric.The needling needles have hooking needles, repeatedly needling the fiber web,hooking and reinforcing the fibers to form needle punched non woven geotextile.
3.Polyester Filament Geotextile Features
*It has stable physical properties and can maintain its original performance for a long time
*It has stable chemical properties and strong resistance to acids and alkalis
*Good water permeability
*It can withstand high temperatures, freeze and adapt to different external environments
*It is light in weight, can be packaged, transported and stored as required, and is convenient for construction
4.Polyester Filament Geotextile Applications
*Isolation: Geotextiles are used to isolate building materials with different physical properties,preventing the loss and mixing of two or more materials, maintaining the overall structure and function of the materials, and increasing the load-bearing capacity of the materials
*Drainage: Geotextiles are excellent water-conducting materials.They can form drainage channels within soil structures,expelling excess liquids and gases from within the soil structures
*Filtration: When water flows from fine-grained soil layers into coarse-grained soil layers, the excellent air permeability and water permeability of needle punched geotextiles are utilized to allow water to pass through and effectively intercept particles, fine sand, small stones etc., thereby maintaining the stability of water and soil engineering
*Protection: Effectively diffuse, transfer or decompose concentrated stress to prevent soil from being damaged by external forces
*Sealing: Geotextiles, in combination with other materials, form impermeable layers in the soil layer
*Reinforcement: Utilizing geotextiles to enhance the tensile strength and anti-deformation capacity of soil, improve the stability of building structures, and enhance the quality of soil
*Other: Long fiber non woven geotextiles can be combined with other geosynthetic materials such as geogrids, geomembranes, and drainage nets to form composite geosynthetics
Keywords：
PET Non Woven Geotextile
1.Introduction
Polypropylene continuous filament non woven geotextile is made from special polypropylene raw materials.It is formed into continuous polypropylene filaments through spinning and stretching, followed by continuous web laying, multiple needling and consolidation, and then expansion and shaping, and finally hot-rolled into a non woven geotextile fabric.
2.Polypropylene Filament Geotextile Features
*Low density: At room temperature, its density is only 0.91g/cm ² (1.38g/cm ² for polyester), making it the lightest material among synthetic fibers
*High mechanical properties: Under the same grammage,polypropylene continuous filament fabric has high tensile strength,high puncture resistance and stable structure
*Good chemical stability: It has excellent acid and alkali resistance
*Good water permeability and drainage performance: Polypropylene material has good hydrophobicity, does not absorb water, does not hydrolyze,and water can easily penetrate through
*Low-temperature resistance: The performance of polypropylene non woven geotextile is almost unaffected at low temperatures
3.Polypropylene Filament Geotextile Advantages
*The chemical properties of polypropylene continuous filament non woven geotextile are extremely stable.Except for concentrated sulfuric acid and concentrated nitric acid, it hardly reacts with other reagents and can be used in an environment with a PH value ranging from 2 to 13 without being affected. Polypropylene continuous filament non woven geotextile can maintain almost 100% of its strength after being soaked in calcium hydroxide solution at 60℃ for three days
*Under the condition of the same gram weight, the lower the density, the greater the number of fibers per unit area, and the thickness of the formed product is also larger than that of other material needle punched geotextiles, and various strength indicators are also higher. Under the same gram weight conditions, polypropylene filament non-woven geotextile has high tensile strength, high puncture resistance and stable structure
*Under the irradiation of 340nm ultraviolet lamps and spraying (for 350 hours), the strength retention rate of 350g of polypropylene continuous filament non woven geotextile with anti-ultraviolet masterbatch added reached over 95%, and some indicators were even better than before irradiation
4.Polypropylene Filament Geotextile Applications
*Sliding layers and isolation layers of high-speed railway ballastless track
*Airport runway isolation layer
*Highway waterproof and crack-proof base fabric
*Anti-seepage cushion layer for subways and tunnels
*Bank protection and bottom protection for water conservancy projects
*Anti-seepage and site closure for solid waste/tailings/landfill sites
*Wrap the blind ditches with crushed stones for isolation and filtration
*Slope protection/isolation and water filtration behind retaining walls
Keywords：
PET Non Woven Geotextile
Lianyi® Woven Geotextile is a new type of geosynthetic material specially designed for soil reinforcement,road construction,water management,drainage and various civil engineering.It is manufactured with tapes/silt yarns from polypropylene (PP) or polyester(PET) film and then stretched to maximize strength.Yarns are woven on into highly uniform geotextile fabrics in width up to 5.2m.Polyprolylene is highly resistant to a wide variety of chemicals and extreme pH environments and the polymer is treated with additives for extended life even when exposed to UV light.
What Is The Types Of Woven Geotextile?
Types: 100/50kN/m2-1000/50kN/m2 Roll Width:5.2m Roll Length: 50m,100m Color: White,Black and so on.
What Is Features Of Woven Geotextile?
*High tensile strength in longitudinal and transverse directions
*The break elongation rate is less than or equal to 15%
*Sewing strength is greater than or equal to 70%
*Anti ultraviolet capacity is greater than 90%/500h
*High resistance to acid and alkali corrosion resistance
What Is Advantages Of Woven Geotextile?
*High grade polymer for strongest yarns and minimum transportation costs
*New state of the art flat looms produce very uniform fabric structure with the lowest standard deviation
*Highest strength to weight ratio n the industry,to keep manufacturing cost down
*Geotextiles can give significant project cost savings when used in constructions compared to traditional construction materials
*It extends the life of the structure by preserving the as built integrity
What Is Woven Geotextile Used For?
*Separation/stabilization beneath paved and unpaved roads,parking lots,etc
*Reinforcement of roads,walls,etc
*Erosion control
*Geotubes
*Landscaping
*Emergency flood control
*Silt fence
Keywords：
Woven Geotextile vs Non Woven Geotextile
The primary difference between ‘non woven geotextile’ and ‘woven geotextile’ lies in their manufacturing process, structure, and resulting properties, which are both widely used in road construction,drainage systems,landfill and all kinds of civil engineering.But they differ in their manufacturing processes, properties, and applications.
1. Manufacturing Process & Structures
– Made by weaving continuous synthetic fibers (usually polypropylene or polyester) into a fabric using traditional weaving techniques.
– Produces a strong, uniform, and stable fabric with high tensile strength.
– The fibers are arranged in a specific pattern (plain weave or twill weave) to create a more structured and uniform material
– Made by bonding synthetic fibers together mechanically (needle-punching), thermally, or chemically.
– Results in a felt-like, porous fabric with higher permeability.
– The fibers are randomly oriented, creating a web-like structure.
2.Physical Properties
– Thinner and less porous.
– Lower permeability, making them less effective for drainage or filtration.
– Higher tensile strength, especially in the direction of the weave.
– More resistant to punctures and abrasion.
– Thicker and more porous.
– Higher permeability, allowing water to pass through easily.
– Lower tensile strength compared to woven geotextiles but still strong enough for many applications.
– Better at separating and filtering materials.
3. Applications
– Road stabilization (subgrade reinforcement)
– Embankment support
– Erosion control in slopes
– Primarily used for reinforcement and stabilization purposes.
– Roadways, railways, embankments, and retaining walls to increase load-bearing capacity and prevent soil movement.
– Suitable for applications requiring high tensile strength and durability.
– Drainage systems (behind retaining walls, under roads)
– Landfill liners and leachate collection
– Protection for geomembranes
– Soil filtration in silt fences
– It is used for separation, filtration, and drainage applications.
– Ideal for road construction (base stabilization), erosion control, landfill liners, and subsurface drainage systems.
– Suitable for environments requiring high permeability and flexibility.
4.Cost & Durability
Woven geotextiles are generally more durable under heavy loads but can be more expensive
– More resistant to UV degradation and chemical exposure.
– Longer lifespan in demanding conditions, especially in reinforcement applications
– More expensive due to the weaving process and higher tensile strength.
– Justified in applications requiring strong reinforcement.
Non woven geotextiles are cost-effective for filtration and drainage but may degrade faster under UV exposure if not stabilized
– More susceptible to UV degradation and chemical exposure over time.
– Typically have a shorter lifespan compared to woven geotextiles in harsh environments.
– Generally less expensive than woven geotextiles.
– Cost-effective for applications where high tensile strength is not critical.
5.Summary
Woven Geotextile (high-strength applications like reinforcement)
-Manufacturing:Woven fibers (plain or twill weave)
-Permeability:Low
-Tensile Strength:High
– Puncture Resistance:High
-Filtration:Poor
-Separation:Good
-Applications:Reinforcement, stabilization
-Durability:More resistant to UV/chemicals
-Cost:Higher
Non Woven Geotextile (drainage, filtration, and separation needs)
-Manufacturing:Bonded fibers (needle-punched, thermal)
-Permeability:High
-Tensile Strength: Moderate
-Puncture Resistance:Low
-Filtration:Excellent
-Separation:Excellent
-Applications:Separation, filtration, drainage
-Durability:Less resistant to UV/chemicals
-Cost:Lower
Keywords：
PET Non Woven Geotextile
Lianyi® Geotextile is a new type of geosynthetic material specially designed for soil reinforcement,road construction,water management,drainage and various civil engineering.They are manufactured from polypropylene (PP) or polyester(PET) fibers by needle punched or structural.It can divide into non woven geotextile and woven geotextile.
What Is The Types Of Geotextile?
Polyester Continuous Filament Non Woven Geotextile
Types: 100g/m2-1000g/m2 Roll Width: 1-6m Roll Length: 50m,100m Color: White,Black,Green and so on.
Types: 100/50kN/m2-1000/50kN/m2 Roll Width:5.2m Roll Length: 50m,100m Color: White,Black and so on.
What Is Features Of Geotextile?
High tensile strength and elongation
Highly resistant to aging
Resistant to all natural aggressive mediums in ground water and soil
Suitable for contact with soft water
High flexibility in cold temperatures
Can be installed on damp and wet substrates
Corrosion resistance, long-term corrosion resistance in soil and water with different pH
Good water permeability, there are gaps between the fibers, so it has good water permeability
What Is Geotextile Used For?
Road construction,stabilization and repair
Railway track construction
Pipeline foundation and protection
Drainage and lowering of ground water
Ponds and canals
Coastal protection
Pavement overlays
Roofing systems
Waste construction systems
Agriculture
Keywords：
Lianyi® Non Woven Geotextile is a new type of geosynthetic material specially designed for soil reinforcement,road construction,water management,drainage and various civil engineering.They are manufactured from polypropylene (PP) or polyester(PET) fibers,formed into a uniform web and then needle punched for entanglement to achieve high strength.It can divide into staple fiber non woven geotextile and filament non woven geotextile.
What Is The Types Of Non Woven Geotextile?
PET Staple Fiber Non Woven Geotextile
PP Staple Fiber Non Woven Geotextile
Polyester Continuous Filament Non Woven Geotextile
Types: 100g/m2-1000g/m2 Roll Width: 1-6m Roll Length: 50m,100m Color: White,Black,Green and so on.
What Is Features Of Non Woven Geotextile?
*High grade strong fibers and minimum transportation cost
*New,state of the art needle punch non woven lines produce very uniform fabric structure with the lowest standard deviation
*Six meter width manufacturing capability is the widest in the industry
*Eight advanced production lines,shorten the delivery time
*Heat treating capabilities allow a wide variety of physical properties and many performance options for the non woven
What Is Advantages Of Non Woven Geotextile?
*High coefficient of friction against soil or stone
*The ability to locally elongate to relieve stress concentrations to avoid construction damage
*Conform well to irregular ground surface
*High permittivity and water flow
*Tight pore size be a finer filter
What Is Non Woven Geotextile Used For?
*Separation/stabilization beneath paved and unpaved roads,parking lots,etc
*Drainage and filtration applications
*Erosion control
*Beneath riprap
*Landscaping
*As cushion/protection in lining systems
*As a pavement interlayer
Keywords：
