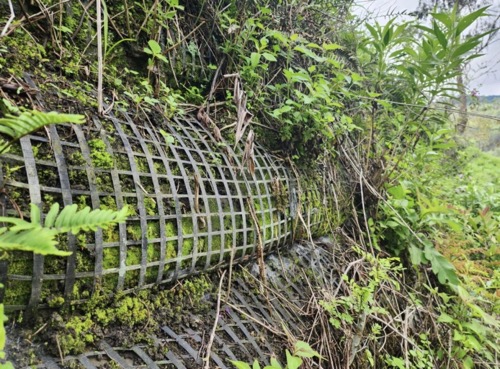

Lianyi® Uniaxial Geogrid is a new type of geosynthetic specially designed for retaining wall,soil reinforcement and slope protection.They are typically made from polypropylene (PP),HDPE(high-density polyethylene),fiberglass yarns or polyester yarns and are characterized by their unique structural properties.
- PP Uniaxial Geogrid is made of polypropylene (PP),in the manufacturing process,the perforated plate is stretched in one direction,resulting in the final product’s rigidity and strength of 35kN/m to 300kN/m,depending on the geogrid type.

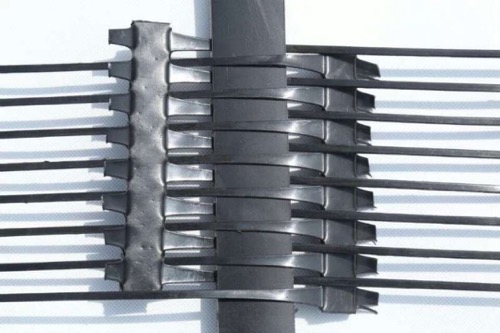

- HDPE Uniaxial Geogrid is produced from High Density Polyethylene(HDPE) using an extrusion and stretching method that yields geogrid with highly increased tensile properties in one direction only. The tensile strength range from 40kN/m to 200kN/m.
3.Fiberglass Uniaxial Geogrid is made of high performance E-glass fiberglass yarns,impregnated with bitumenious polymer to protect glassfiber gird and provide mesh dimensional stability.It’s specially designed to prevent reflective cracking and reinforce asphalt pavements,providing strength and rigidity in a high strength glass grid.The Main types:50-30kN/m,60-30kN/m,80-30kN/m,100-50kN/m,100-200kN/m,120-200kN/m,150-30kN/m,200-100kN/m.The mesh size:12.7*12.7mm,25.4*25.4mm,40*40mm,50*50mm.The roll size: 1*100m,2*100m,2.5*100m,3*100m,3.95*100m,5*100m,5.95*100m.
4.Polyester Uniaxial Geogrid is made of high modulus polyester yarns and has a PVC/Bitumen/SBR coating which offers UV resistance and further strengthens the geogrid and minimizes fiber degradation.The Main types:60-30kN/m,80-30kN/m,100-30kN/m,150-30kN/m,200-30kN/m,300-30kN/m,400-30kN/m,500-50kN/m,600-50Kn/m,800-50Kn/m,900-50kN/m,1000-50kN/m.The mesh size: 12.7*12.7mm,25.4*25.4mm, 40*40mm,50*50mm.The roll size: 1*100m,2*100m,2.5*100m,3*100m,3.95*100m,5*100m,5.95*100m.
Uniaxial Geogrid Features
- Tensile Strength: Uniaxial geogrids(https://geolianyi.com/product/pp-uniaxial-geogrid/)have high tensile strength in one primary direction, known as the machine direction (MD). This strength enables them to withstand significant loads and distribute forces effectively.
- Aperture Size: Uniaxial geogrids(https://geolianyi.com/product/hdpe-uniaxial-geogrid/)feature a regular grid structure with uniform apertures or openings. The aperture size can vary depending on the specific application and desired engineering properties.
- Rib Structure: These geogrids consist of ribs that run in the machine direction and are interconnected by junctions. The ribs provide stiffness and structural integrity, while the junctions facilitate load transfer between adjacent ribs.
- Strain Characteristics: Uniaxial geogrids exhibit low strain characteristics, meaning they have a minimal tendency to deform or elongate under load. This property helps maintain their integrity and load-bearing capacity over time.
- Durability: Geogrids are designed to have excellent resistance to environmental factors such as chemical attack, UV degradation, and biological degradation. This durability ensures long-term performance in various soil conditions.
- Soil Interaction: Uniaxial geogrids form a mechanical bond with the surrounding soil, creating an interlocking effect. This interaction enhances soil reinforcement and provides stability to slopes, retaining walls, and other structures.
7.Installation Efficiency: Uniaxial geogrids are typically supplied in roll form, allowing for easy transportation, handling, and installation. They can be deployed horizontally or vertically, depending on the specific application, and are commonly used in reinforcement layers within soil structures.
Keywords：
Lianyi® PP Geogrid is a new type of geosynthetic specially designed for soil reinforcement and stabilization,retaining wall and slope protection.They are manufactured by using different grads of polypropylene (PP) and produced using an extrusion and stretching that yields geogrid with highly increased tensile properties in one direction,two directions or three directions.
1.PP Biaxial Geogrid is manufactured of polypropylene (PP),it’s single layer regular grid structures formed by the process of extruding,punching,heating,longitudinal stretching and transverse stretching.It has high flexural rigidity and high tensile modulus in relation to the material being reinforced to has high continuity of tensile strength through all ribs and junctions of the grid structures.The Main types:15-15kN/m,20-20kN/m,30-30kN/m,40-40kN/m,50-50kN/m,BX1100,BX1200.The mesh size:33*33mm,36*36mm,39*39mm,25*33mm,65*65mm.The roll size: 1*50m,2*50m,2.5*50m,3*50m,3.95*100m,5*50m,5.95*50m.
2.PP Uniaxial Geogrid is manufactured by a process of extruding,punching,heating and longitudinal stretching.It is made of polypropylene (PP) and chemically insert,unaffected by the UV. Rays and fully resistant to aging in the soil reinforcement.The tensile strength range from 35kN/m to 300kN/m,the roll size: 1*50m,2*50m,2.95*50m.

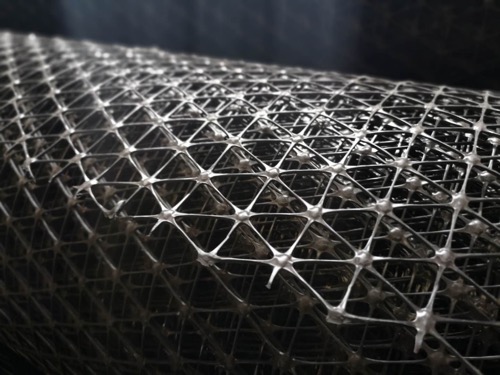

3.PP Triaxial Geogrid is manufactured from a punched polypropylene sheet that is used to form hexagonal structures with triangular apertures to effectively confine and interlock aggregate particles. The polypropylene sheet oriented in multiple,equilateral directions to form its triangular apertures,, resulting in high radial stiffness throughout the full 360 degrees. This feature yields a more efficient product that delivers optimal in-service stress transfer from the aggregate to the stabilizing geogrid. The Main types:TX130,TX140,TX150,TX160,TX190,TX5,TX7.The roll size: 3.95*50m.
1.Resistance to biological degradation or attack
2.Chemical resistance
3.Weathering resistance from UV degradation through incorporating additive of carbon black
4.Resistance to environmental stress cracking
5.Create a stiffer aggregate layer
6.Reduce the vertical stress
7.Improve the load distribution generated by the overlying structure
8.Stiff and durable
9.Excellent creep resistance
10.High long term design strength
Keywords：
PP Biaxial Geogrid
Lianyi® Biaxial Geogrid is a new type of geosynthetic material used in civil engineering and road construction projects. They are typically made from polypropylene (PP),fiberglass yarns or polyester yarns and are characterized by their unique structural properties.
Tensile Strength: Biaxial geogrid has high tensile strength in two directions,known as the machine direction (MD) and cross direction(CD).This strength enables them to withstand significant loads and distribute forces effectively.
Aperture Size: Biaxial geogrid features a regular grid structure with uniform apertures or openings.The aperture size can vary depending on the specific application and desired engineering properties.
Rib Structure: These geogrids consist of ribs that run in the machine direction and are interconnected by junctions.The ribs provide stiffness and structural integrity, while the junctions facilitate load transfer between adjacent ribs.
Strain Characteristics: Biaxial geogrid exhibit low strain characteristics, meaning they have a minimal tendency to deform or elongate under load.This property helps maintain their integrity and load-bearing capacity over time.
Durability: Biaxial geogrid is designed to have excellent resistance to environmental factors such as chemical attack, UV degradation, and biological degradation. This durability ensures long-term performance in various soil conditions.
Soil Interaction: Biaxial geogrid form a mechanical bond with the surrounding soil, creating an interlocking effect.This interaction enhances soil reinforcement and provides stability to slopes, retaining walls, and other structures.
Installation Efficiency: Biaxial geogrid is typically supplied in roll form, allowing for easy transportation, handling, and installation.They can be deployed horizontally or vertically, depending on the specific application, and are commonly used in reinforcement layers within soil structures.

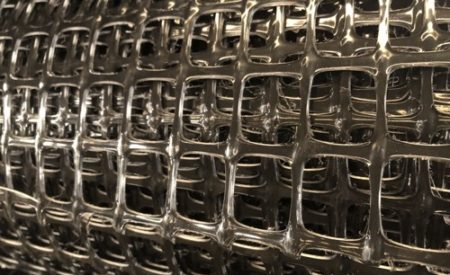

1.PP Biaxial Geogrid is manufactured by polypropylene and produced using an extrusion and stretching method that yields geogrid with highly increased tensile strength properties in both machine and transverse directions.It’s specially designed for soil stabilization and reinforcement. The main types: 15-15kN/m,20-20kN/m,30-30kN/m,40-40kN/m,50-50kN/m,BX1100,BX1200.The roll size:2*50m,3.95*50m or 5.95*50m
2.Fiberglass Geogrid is made of high strength E-glass fiberglass yarns, impregnated with bitumenious polymer to protect glassfiber and provide mesh dimensional stability.It’s specially designed for asphalt layer reinforcement and asphalt pavement reinforcement.The Main types:50-50kN/m,100-100kN/m,120-120kN/m,150-150kN/m,200-200kN/m,300-300kN/m.The mesh size:12.7*12.7mm,25.4*25.4mm,40*40mm,50*50mm.The roll size: 1*100m,2*100m,2.5*100m,3*100m,3.95*100m,5*100m,5.95*100m.
3.Polyester Biaxial Geogrid is made of high modulus polyester yarns with special protective polymer impregnation.(Bitumen coating or PVC coating), The Main types:50-50kN/m,100-100kN/m,200-200kN/m,300-300kN/m,400-400kN/m,500-500kN/m,600-600kN/m,700-700kN/m,800-800Kn/m,900-900Kn/m,1000-1000kN/m.The mesh size: 12.7*12.7mm,25.4*25.4mm, 40*40mm,50*50mm.The roll size: 1*100m,2*100m,2.5*100m,3*100m,3.95*100m,5*100m,5.95*100m.
Keywords：
PP Biaxial Geogrid
Lianyi® Asphalt Geogrid is a new type of geosynthetic specially designed for asphalt road reinforcement and prevent reflective cracking of asphalt pavement. Asphalt Reinforcement Geogrid has three types,the first one is fiberglass geogrid and self adhesive fiberglass geogrid,the second one is fiberglass geocomposite made by fiberglass geogrid glued or stitched with PET or PP nonwoven geotextile,the third one is polyester geogrid glued or stitched with PET or PP nonwoven geotextile.
1.Fiberglass Geogrid is made of fiberglass roving by warp knitting with bitumen coating.
2.Self Adhesive Fiberglass Geogrid is made of fiberglass roving by warp knitting with bitumen coating,self adhesive on one side.
3.Fiberglass Geocomposite is which consists of fiberglass geogrid stitched with PET or PP nonwoven geotextile with bituminous coating.
4.Fiberglass Geocomposite is made of high strength fiberglass yarns withouting coating stitched with PET or PP nonwoven geotextile.
5.Polyester Geocomposite is which consists of polyester geogrid stitched with PET or PP nonwoven geotextile with bituminous coating.
6.Polyester Geocomposite is made of high modulus polyester yarns withouting coating stitched with PET or PP nonwoven geotextile.
Asphalt Fiberglass GeogridFeatures
High strength and low elongation: It has a very high tensile strength in both the warp and weft directions, a low elongation, and can effectively withstand external forces, reducing deformation.
Stable performance: It features excellent properties such as high-temperature resistance, low-temperature resistance, anti-aging, and corrosion resistance, and can adapt to various complex environments.
Easy construction: Light in weight, with certain flexibility, it is easy to cut and connect on site, can be overlapped and lapped, and does not require special construction machinery or professional technicians.
Fiberglass Geogrids(https://geolianyi.com/product/fiberglass-geogrids/)Advantages
Slow down reflective cracks: It can suppress stress and release strain. As a hard interlayer with high rigidity, it enhances the tensile and shear resistance of the overlay structure and reduces cracks.
Anti-fatigue cracking: A buffer zone is formed between the stressed areas, allowing the stress to gradually change, reducing the damage caused by sudden stress changes to the asphalt overlay layer. At the same time, the low elongation rate reduces the deflection of the pavement.
High-temperature rutting resistance: It plays a skeletal role in the asphalt surface layer, forming a composite mechanical interlocking system, restricting the movement of aggregates, preventing the asphalt surface layer from pushing, and resisting rutting.
Resistance to low-temperature shrinkage cracking: Enhance the tensile strength of asphalt concrete, resist tensile stress, and even if local cracks occur, the stress can be gradually eliminated through it, preventing the cracks from developing into cracks.
Fiberglass GeogridApplications
It reinforces old asphalt concrete road surface and asphalt layer, and prevents damage
It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction
It is used in road expansion and improvement project and crack caused by old and new combination position and uneven sedimentation
It is used in soft soil base reinforcement treatment ,is favorable for soft soil water separation and concretion,restrains sedimentation effectively,distributes stress uniformly and improve overall strength of road base
It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection
Keywords：
Fiberglass Geogrid
Self Adhesive Fiberglass Geogrid
Fiberglass Geogrid Composite With Nonwoven Geotextile
The Lianyi® Company is the manufacturer of the pp geocomposite,combigrid,it’s specialized geocomposites engineered for soil stabilization and reinforcement applications. These geogrids are produced through the integration of pp biaxial geogrid with a polyester nonwoven geotextile or pp nonwoven geotextile, ensuring enhanced performance and durability.
Lianyi®Combirgrid are composite of polypropylene(PP) geogrid and PET continuous filament nonwoven geotextile by heat bonding. The non woven geotextile as a separation layer between subgrade soils, and the geogrid provides stabilization of soils. Main types: 20-20kN/m,30-30kN/m and 40-40Kn/m.Roll size: 3.95*50m,5.95*50m etc.
*Reinforcement, filtration, separation and drainage in just one product, reducing aggregate thickness
*Firmly bonded composite product
*Robust needle-punched staple fiber nonwoven geotextile separates aggregate from fine soils
*High strength at low strains
*Immediate interlocking with cover aggregate
*Low creep characteristics
*High angle of friction because of the structured geogrid surface
*High resistance against installation damage
*Quick and easy to install
*Reinforcement/stabilisation, filtration, separation, and drainage in just one product
*Immediate interlock with fill material (no constructionrelated strain)
*Excellent stress strain behaviour (high tensile stiffness)
*High radial stiffness and high cyclic tensile stiffness
*Robust against installation damage, and chemical and biological attack
*Base and sub-base course stabilization and reinforcement
*Basal reinforcement for embankments
*Load transfer platforms over piles (LTP)
*Bridging of mining voids and sinkholes
*Reinforced foundations
*Airport runways and graded portions
*Working platforms
*Pipe trenches
*Lagoons
*Tailing ponds
Keywords：
1.PP Geogrid
5.Polyester Non Woven Geotextile
What’s Polyester Geogrid? https://geolianyi.com/product-category/product/geogrid/polyester-geogrid/

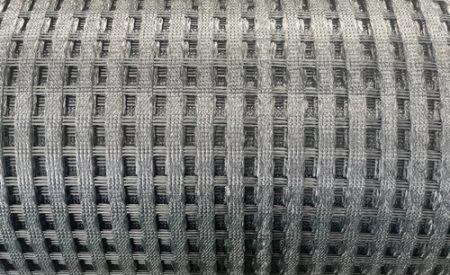

Lianyi®Polyester Geogrid is a new types of earthwork roadbase material,it’s made of high molecular weight,high tenacity mutli-filament polyester yarns,and with PVC or Bitumen coating which offers UV resistance and further strengthens the geogrid and minimizes fiber degradation.The woven polyester geogrid range of tensile strength from 20-20kN/m to 1200-1200kN/m. The width range from 1m to 6m. It can be divided into polyester biaxial geogrid(https://geolianyi.com/product/polyester-biaxial-geogrid/),polyester uniaxial georgid and polyester mining geogrid.It’s a versatile and affordable solution for improving soil stability and reducing erosion. It can be used in various applications, from retaining walls to agricultural landscapes.
Woven Polyester GeogridFeatures
*High tensile strength and low elongation
*Corrosion resistance and aging resistance
*High long-term design strength
*Flexible and durable
*Light weight and drainage function
*Easy to transport and Construct
PVC Coated Polyester Geogrid Applications
*Road widening
*Railway construction
*Bridge ramps reinforcement
*Retaining walls and bridge abutments
*Stabilization of embankment of landslide and buoyancy
*Improving the bearing capacity of loose and unstable soils
*Avoiding of river shore erosion using geogrid retaining wall
*Reinforcing the embankment slope
*Retaining walls reinforced to enhance the overall strength
How To Use Warp Knitted Polyester Geogrid?
Polyester geogrid should be laid on coarse grained stone of asphalt layer of construction pavement, the original pavement should be leveled first, constructed after finishing, repairing and cleaning, fixed PET geogrid overlap with special steel nails is needed for ordinary woven polyester geogrid, joint transverse greater than 5 cm, longitudinal greater than 10 cm, PVC coated polyester geogrid treated with asphalt should be laid as little as possible with asphalt adhesive oil, and self-adhesive. The asphalt mixture can be paved and compacted after proper rolling by rubber wheel roller in the construction of knitted polyester geogrid without special steel nails.
