Introduction

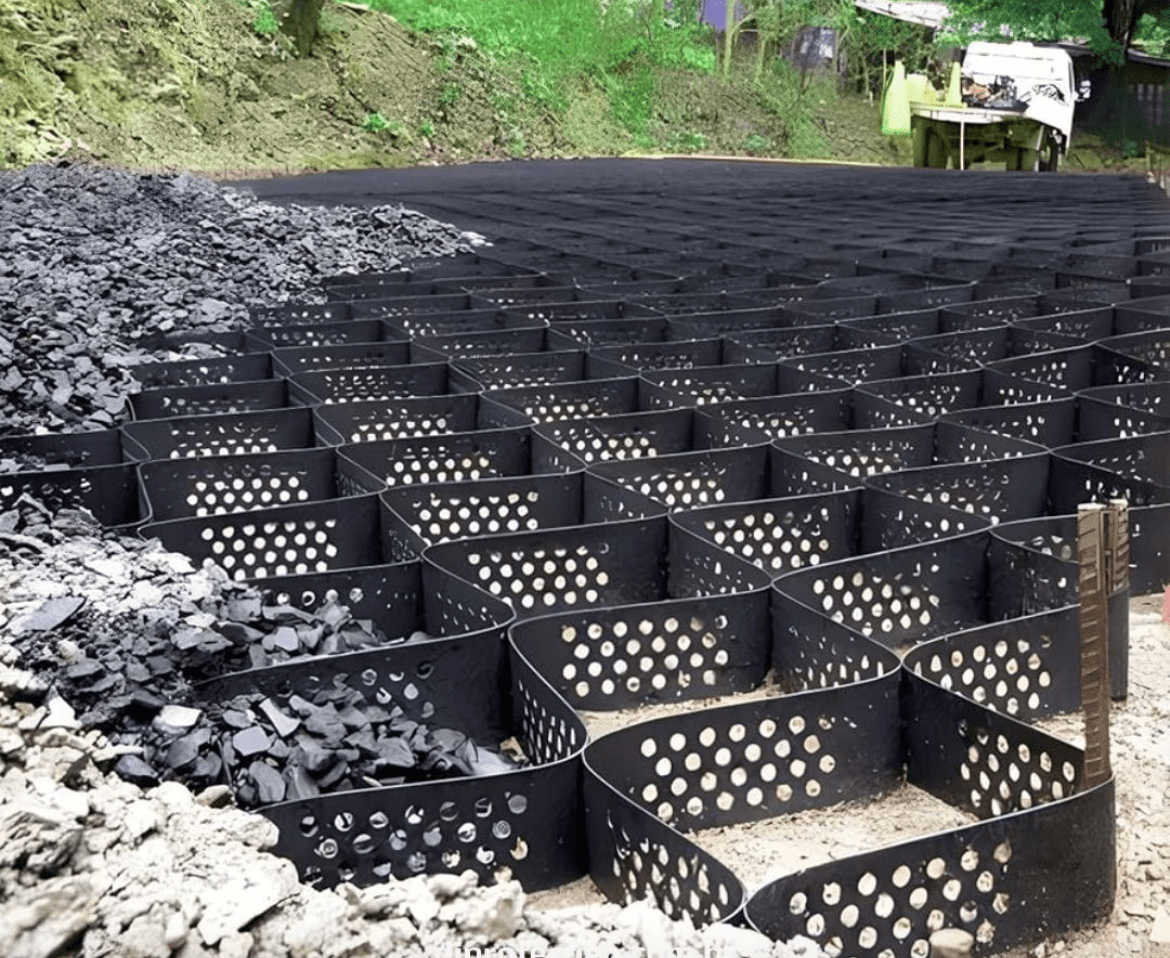

HDPE Geocell is a popular new type of high strength geoynthetic material, which is a three-dimensional mesh cell structure made of high tensile strength HDPE sheets welded by high strength ultrasonic waves. It can be stretched freely, folded for transportation, drawn into a network during construction, unfolded into a honeycomb three-dimensional grid, filled with loose materials such as soil, gravel, concrete, and so on, to form a structure with strong lateral restrictions and large stiffness.

Properties Of HDPE Geocell

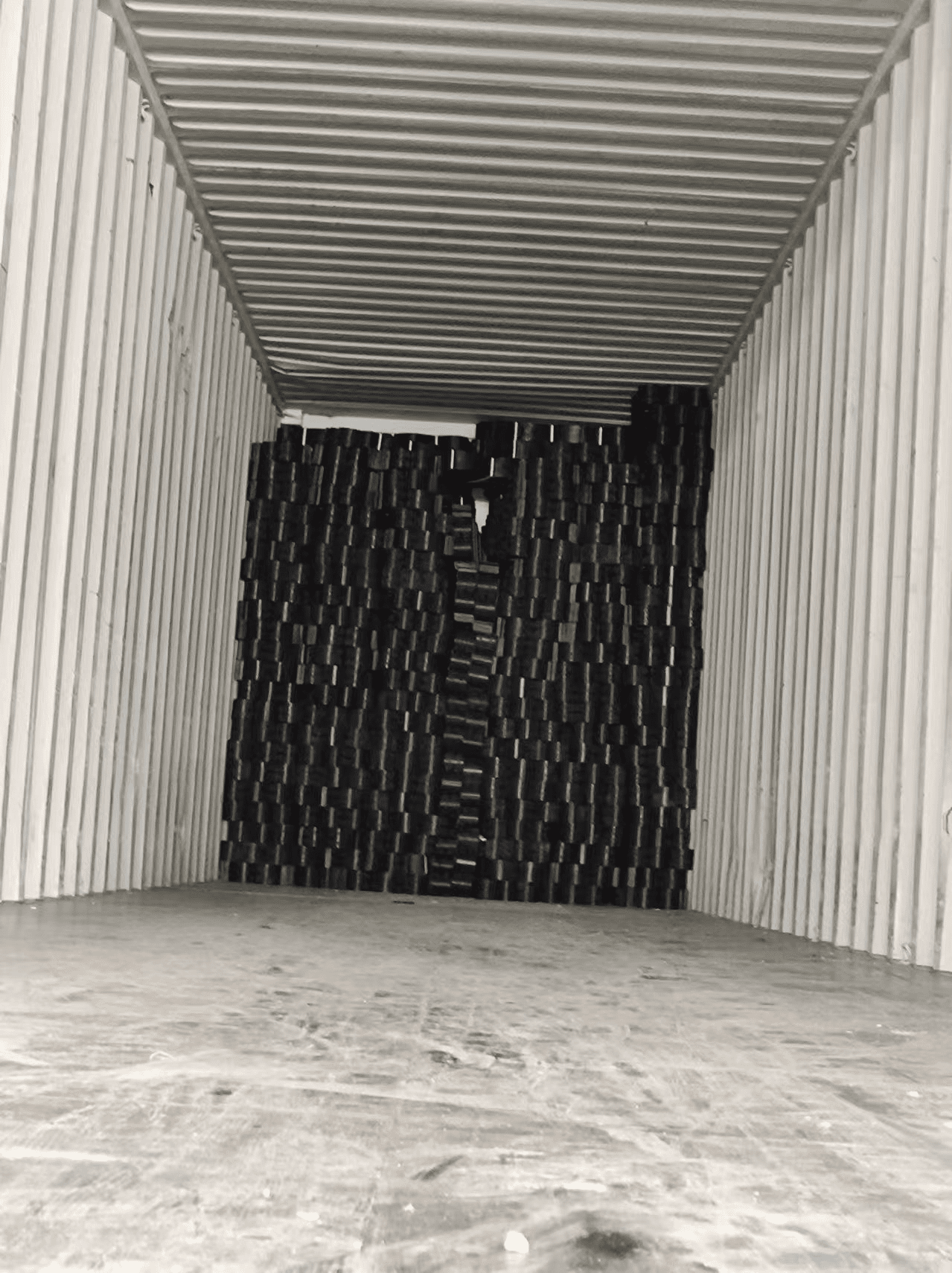

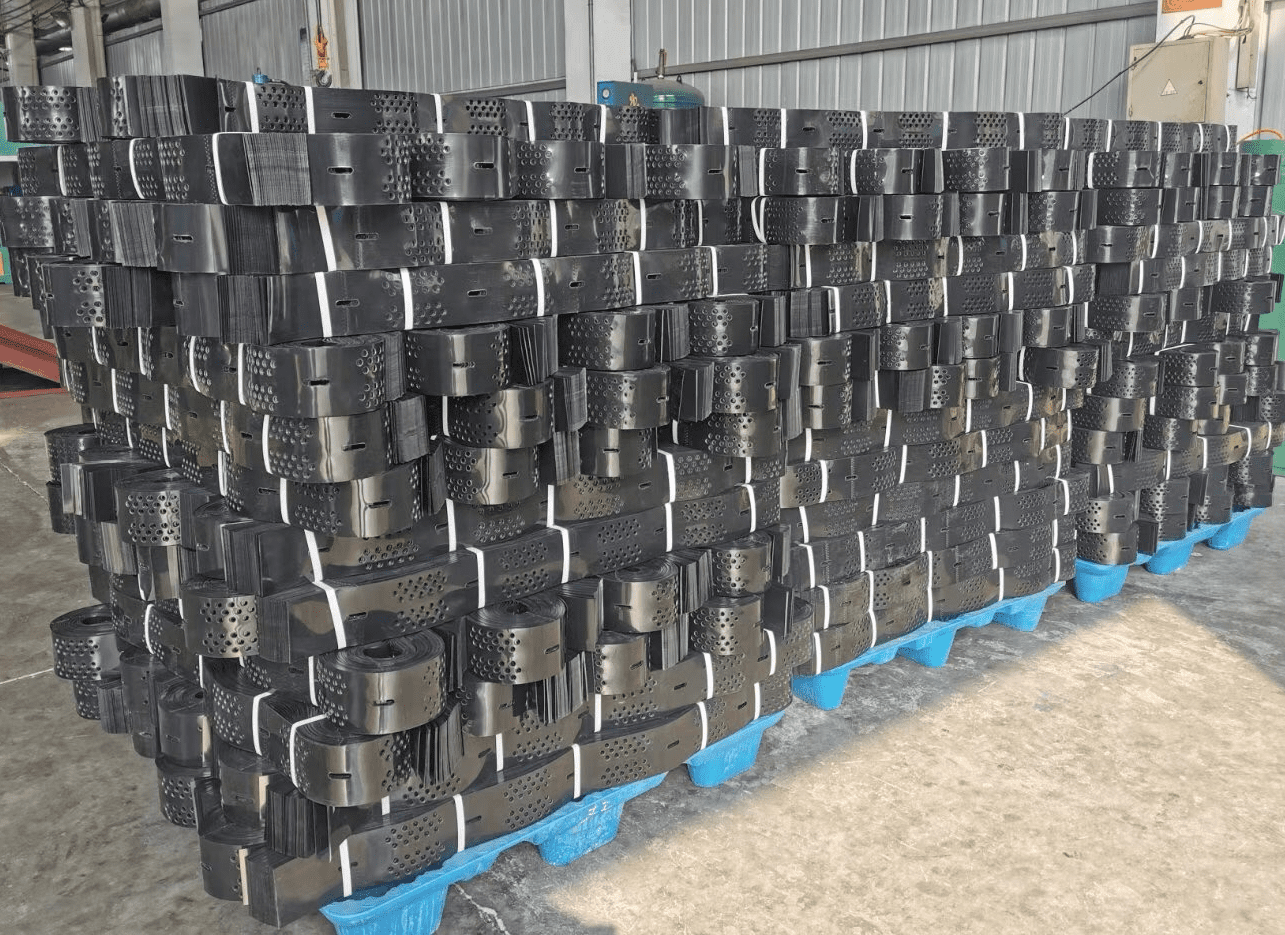

*Flexible, transport can be folded

*Light material, wear resistance, stable chemical properties, light oxygen aging resistance, acid and alkali resistance

*High side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load

*Change the height of the geoglage chamber, welding torch and other geometric dimensions to meet different engineering needs

*Flexible, small transportation volume, convenient connection, fast construction speed

Advantages Of HDPE Geocell

*Time and labor savings

*Durable and long service life

*All season and all weather condition

*Green product

*Environment friendly

*Reduces loose of top soil

*Limits the erosion quantity

*Provides planting and vegetable surfaces

*Aesthetical surfaces

*Economical and fast landscaping possibility

*Easy to install with mechanical anchoring

*Self drainage capability

Application Of HDPE Geocell

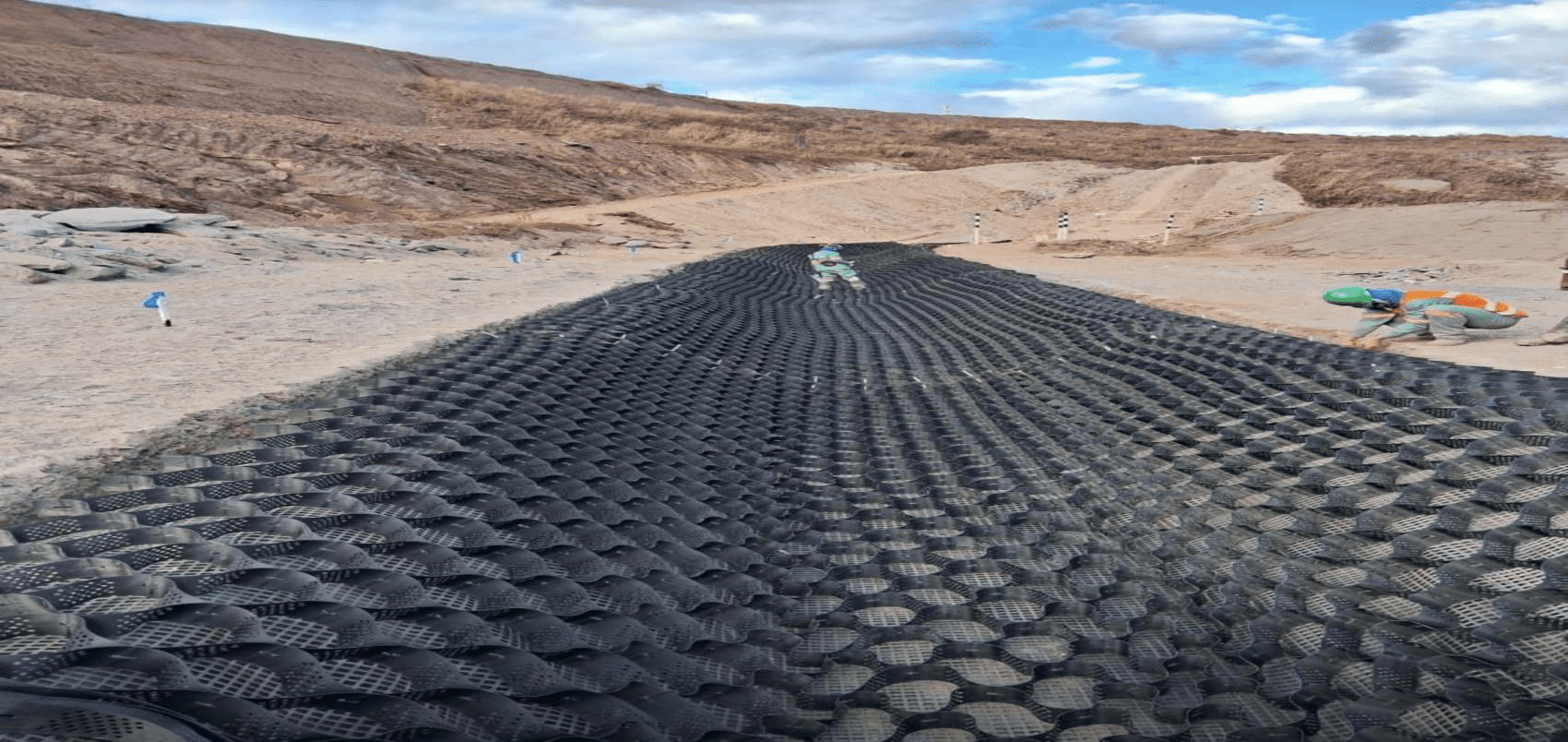

*Highway and railroad side slopes

*Lagoon and channel shore slopes

*Dry channel bottoms and side slopes

*It is used to stabilize the railway roadbed

*It is used to stabilize highway subgrade

*Levees and retaining walls for bearing loads

*It is used for shallow water river treatment

*It is used to support pipes and sewers

*Hybrid retaining wall with load force for preventing landslide

*It is used for independent walls, wharves, breakwaters, etc

*It is used for desert, beach and riverbed, river bank management



Specification Of HDPE Geocell :

Polymer density (ASTM D 1505)	g/cm3	0.935 – 0.965
Environmental stress crack resistance (ASTM D 1693)	Hours	>5000
Carbon black content  (ASTM D 1603)	%	min. 2.0
Nominal sheet thickness (SMOOTH) (ASTM D 5199)	mm	min 1.2
Material	HDPE



Cell/section properties
Property				Unit		330		356		445		660		712
Weld spacing (± 3%)				mm		330		356		445		660		712
Expanded cell dimension (± 3%)		Width		mm		244		259		320		488		508
		Length		mm		210		224		287		436		475
Expanded section (± 3%)		Width		m		2.44		2.59		2.56		2.44		2.56
		Length		m		6.10		6.50		8.35		12.63		13.72
Expanded section area (± 3%)				m²		14.9		16.8		21.4		30.8		35.1
Seam properties
Cell depth (available for all welds)
Seam peel strength (± 5%) (US ACE technical report, GL-86-19)	mm		75		100		125		150		200		250	300
	N		1065		1420		1775		2130		2840		3550	4260
